ATI RADEON X700XT (RV410):
Part 1 - Performance.



Contents

  1. Official specifications
  2. Architecture
  3. Video cards' features
  4. Testbed configurations, benchmarks, 2D quality
  5. Synthetic tests in D3D RightMark
  6. Synthetic tests in 3DMark03: FillRate Multitexturing
  7. Synthetic tests in 3DMark03: Vertex Shaders
  8. Synthetic tests in 3DMark03: Pixel Shaders
  9. Test results: Quake3 ARENA
  10. Test results: Serious Sam: The Second Encounter
  11. Test results: Return to Castle Wolfenstein
  12. Test results: Code Creatures DEMO
  13. Test results: Unreal Tournament 2003
  14. Test results: Unreal II: The Awakening
  15. Test results: RightMark 3D
  16. Test results: TRAOD
  17. Test results: FarCry
  18. Test results: Call Of Duty
  19. Test results: HALO: Combat Evolved
  20. Test results: Half-Life2(beta)
  21. Test results: Splinter Cell
  22. Test results: DOOM III
  23. Test results: 3DMark03 Game1
  24. Test results: 3DMark03 Game2
  25. Test results: 3DMark03 Game3
  26. Test results: 3DMark03 Game4
  27. Test results: 3DMark03 MARKS
  28. Conclusions

HALO: Combat Evolved



The easiest modes without AA and anisotropy: X700XT is defeated.

With enabled anisotropy: the same picture.

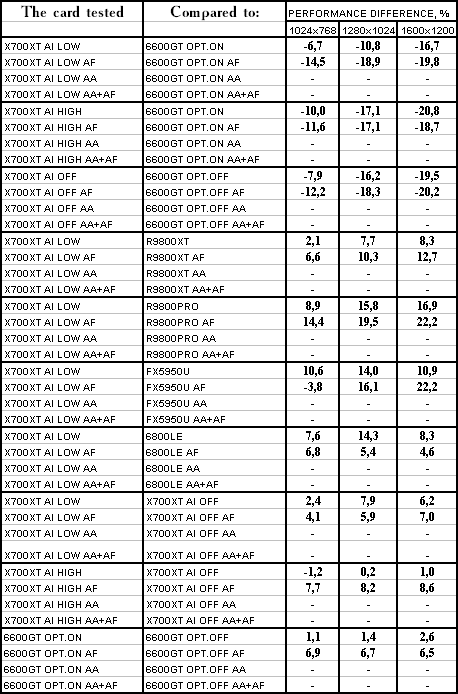

Thus, on the whole:

  • RADEON X700XT versus RADEON 9800 PRO (ATHLON64 3400+) - victory
  • RADEON X700XT versus RADEON 9800 XT (ATHLON64 3400+) - victory
  • RADEON X700XT versus GeForce 6600GT - defeat
  • RADEON X700XT versus GeForce 6800LE (ATHLON64 3400+) - victory (!!!)
  • RADEON X700XT with the LOW OPTIMIZATION versus RADEON X700XT WITHOUT OPTIMIZATIONS - optimizations produced some effect only with AF
  • RADEON X700XT with the HIGH OPTIMIZATION versus RADEON X700XT WITHOUT OPTIMIZATIONS - the same picture

Half-Life2 (beta): ixbt07 demo



With enabled anisotropy: X700XT is heavily defeated!

The final heaviest mode with AA and anisotropy: X700XT got an opportunity to snatch a victory only because 6600GT heavily slumped again with ÀÀ. And still there are some bugs - AA is not working again at 1600x1200.

Thus, on the whole:

  • RADEON X700XT versus RADEON 9800 PRO (ATHLON64 3400+) - victory
  • RADEON X700XT versus RADEON 9800 XT (ATHLON64 3400+) - victory
  • RADEON X700XT versus GeForce 6600GT - victory
  • RADEON X700XT versus GeForce 6800LE (ATHLON64 3400+) - defeat
  • RADEON X700XT with the LOW OPTIMIZATION versus RADEON X700XT WITHOUT OPTIMIZATIONS - quite a good performance gain with enabled À.I. together with AF
  • RADEON X700XT with the HIGH OPTIMIZATION versus RADEON X700XT WITHOUT OPTIMIZATIONS - the same picture

[ The previous part (7) ]

[ The next part (9) ]


We express our thanks to ATI
for the video cards provided to our lab.


Andrey Vorobiev (anvakams@ixbt.com)
Alexander Medvedev (unclesam@ixbt.com)

October 5, 2004
