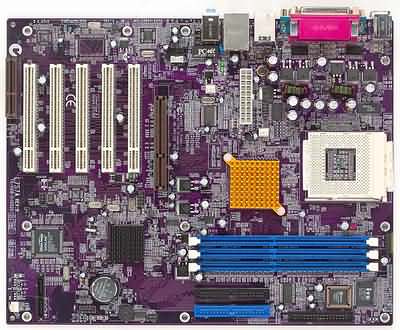

ECS L7S7A: Socket A board on the new SiS746 chipset
ECS L7S7A is one of the first boards on the new SiS746 chipset for AMD Athlon, supporting AGP 8È.
L7S7A brief specifications:
- Socket A, Athlon XP/ Athlon/ Duron
- ATX form-factor
- 4-layer PCB
- SiS746 + SiS963 (MuTIOL, up to 1GB/c); SiS963: integrated USB 2.0, IEEE 1394A headers
- AGP 8x slot
- 5 PCI slots
- CNR slot
- 3 DDR DIMM sockets, 3 DDR266/333 SDRAM or 2 DDR400 SDRAM modules, up to 3GB (only up to 1GB DDR400)
- 10/100Mbps Faster Ethernet (optional)
- 2 Serial ATA ports (Sil3112A, optional)
