More photos of the day: Soltek K8AV-R motherboard for Athlon 64
Introducing the photos of Soltek´s K8AV-R motherboard. Based on K8T400M + VT8235 chipset, it’s designed for 64/32-bit Socket754 Athlon 64 processors.

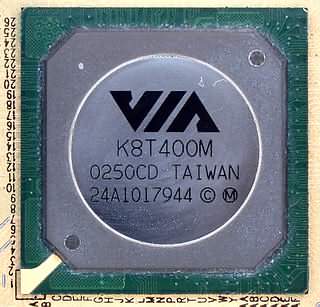

The 0.22µm K8T400M Northbridge, announced by VIA on April 22 and dated to the Opteron release, is encased into 35x35mm 578-pin BGA package. It interacts with VT8235 via V-link 8X with up to 533Mb/s throughput (in the future we might see the VT8237 supporting 1Gb/s Ultra V-Link bus.)
The board has 2 DDR333 DIMM sockets, AGP 8X slot, 5 PCI slots, 5.1-ch. Realtek ALC650 codec, standard 2-ch. ATA 133, 2-port SATA controller (Promise PDC20376).
