MSI offers memory overclocking technology
To its D.O.T. (Dynamic OverClocking Technology) Micro-Star International added another performance increasing technology: MAT, Memory Acceleration Technology, optimizing data data throughput between CPU-Northbridge-memory. It results in higher memory performance, with the thoughput increased by 10%.
According to MSI, this technology is supported by several mobos, including 865PE Neo2 and 865G Neo2. Some settings, required by MAT, are realized in mobo BIOS. (in updates for 865PE,
865G). To enable MAT, MSI recommends to do the following:
- Enter BIOS Setup
- Select Frequency/Voltage Control
- Select Performance Mode
- Select Turbo or Ultra-Turbo
The company stresses that not all memory modules are compatible with MAT.
Below are test results from MSI website.
| |
| System board |
865PE Neo2-FIS2R(MS-6728) |
| Chipset |
Intel 865PE |
| BIOS version |
AMI a6398IMS.120 |
| Chipset driver |
Intel inf 5.10.1015 |
| CPU |
Pentium 4 3.0 GHz (FSB800) |
| Memory |
Corsair PC3500 DDR SDRAM 256MB*2(CL=2.5) |
| Graphics |
ATi 9700Pro |
| HDD |
Maxtor D740X-6L 40GB (Ultra ATA/133,7200PRM) |
| OS |
Windows XP SP1 English version 2002 |
| Monitor Mode |
1024*768 16Bit @85Hz |
| VGA driver |
Catalyst 3.4 |
| DirectX |
Direct X 9.0a(4.09.0000.0901) |

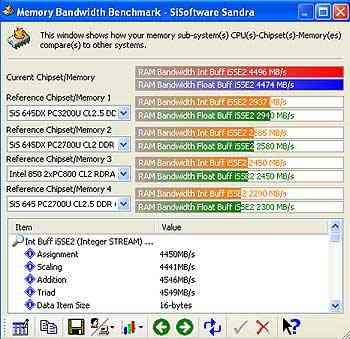

Low

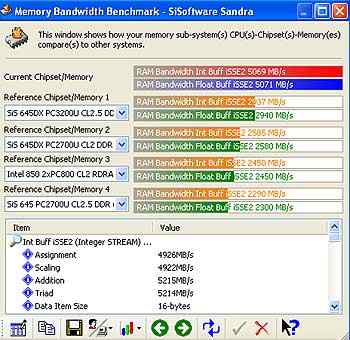

Ultra-Turbo
