Today we shall review two customized graphics cards from Palit.

Specifications

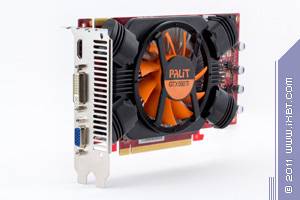

Palit GeForce GTX 550 Ti Sonic 1024MB GDDR5

GPU: GeForce GTX 550 Ti (GF116) Interface: PCIe 2.0 x16 GPU clock rate (ROPs/shaders): 1000/2000 MHz (the standard is 900/1800 MHz) Memory clock rate, physical (effective): 1100 (4400) MHz (the standard is 1025 (4100) MHz) Memory bus: 192-bit Stream processors: 192 Texture units: 32 (BLF/TLF/ANIS) ROP units: 24 Dimensions: 188x112x33 mm Board color: red Output connectors: Dual-Link DVI, HDMI, VGA Multi-GPU mode: hardware SLI

Palit GeForce GTX 560 Ti Sonic 1024MB GDDR5

GPU: GeForce GTX 560 Ti (GF114) Interface: PCIe 2.0 x16 GPU clock rate (ROPs/shaders): 900/1800 MHz (the standard is 822/1644 MHz) Memory clock rate, physical (effective): 1050 (4200) MHz (the standard is 1000 (4000) MHz) Memory bus: 256-bit Stream processors: 384 Texture units: 64 (BLF/TLF/ANIS) ROP units: 32 Dimensions: 188x112x33 mm Board color: red Output connectors: 2 x Dual-Link DVI, HDMI, VGA Multi-GPU mode: hardware SLI

Design

Comparison with the reference design, front view

Palit GeForce GTX 550 Ti Sonic 1024MB GDDR5	Reference NVIDIA GeForce GTX 550 Ti

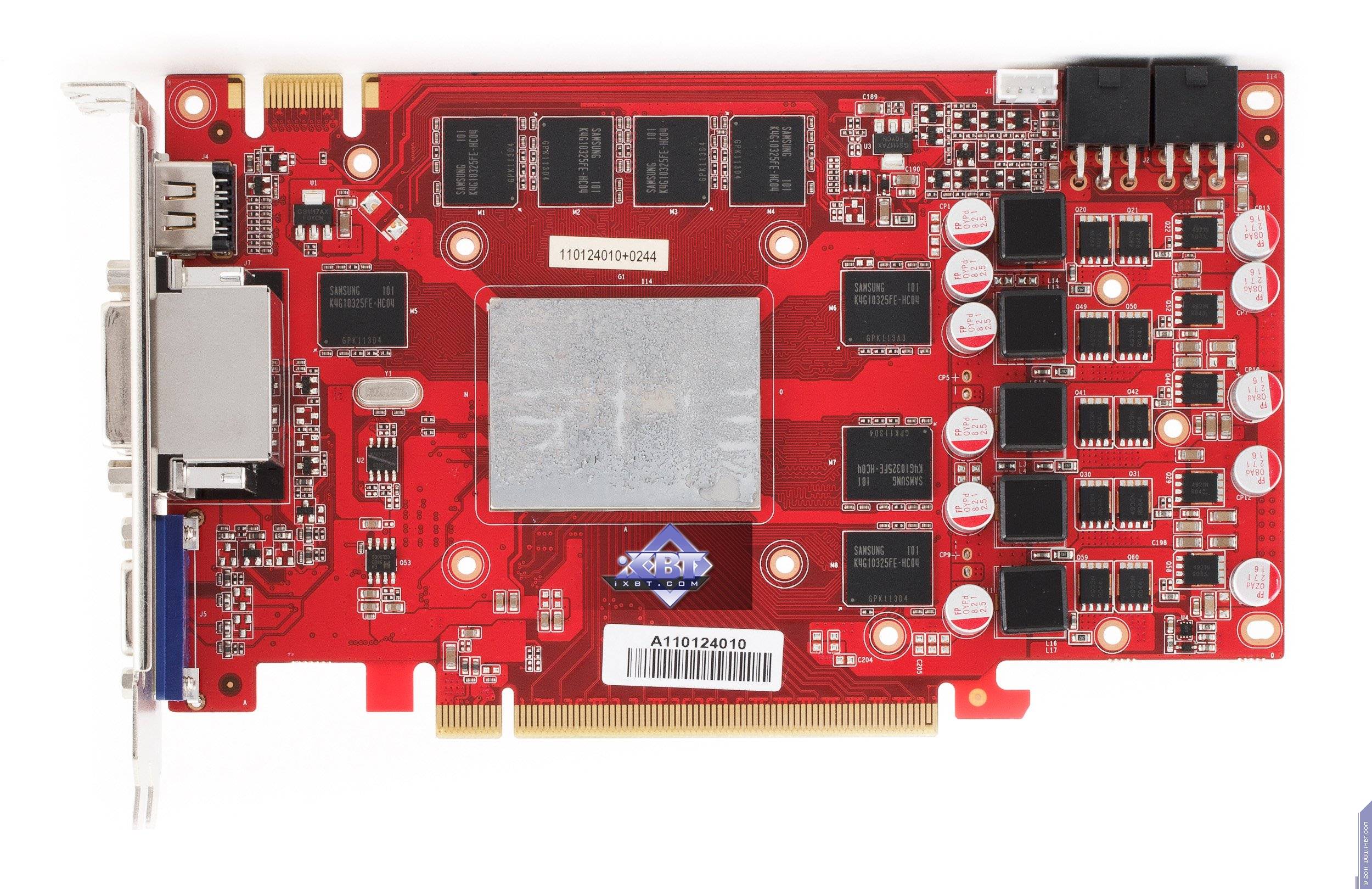

Palit GeForce GTX 560 Ti Sonic 1024MB GDDR5	Reference NVIDIA GeForce GTX 560 Ti

Comparison with the reference design, rear view

Palit GeForce GTX 550 Ti Sonic 1024MB GDDR5	Reference NVIDIA GeForce GTX 550 Ti

Palit GeForce GTX 560 Ti Sonic 1024MB GDDR5	Reference NVIDIA GeForce GTX 560 Ti

The GTX 550 Ti card is smaller than standard which is a sort of tradition for Palit's mid-end solutions. The power supply unit has also been remade, and the supplementary power socket has been moved to the top which is much more convenient. Speaking of outputs, Palit traditionally added VGA for users with inexpensive monitors.

Changes in the GTX 560 Ti card are similar.

Maximum resolutions and frequencies:

• 240 Hz maximum refresh rate
• 2560 x 1600 @ 60Hz max. digital (DVI) resolution
• 2048 x 1536 @ 85Hz max. analog (VGA) resolution

Both cards have supplementary power sockets: two 6-pin on GTX 560 Ti and one 6-pin on GTX 550 Ti.
