NVIDIA GeForce GTX 590 Graphics Card
|
Design
| NVIDIA GeForce GTX 590 |
- GPU: GeForce GTX 590 (2 x GF110)
- Interface: PCIe x16
- GPU clock rate (ROPs/shaders): 607/1214 MHz (standard)
- Memory clock rate, physical (effective): 853 (3412) MHz (standard)
- Bus: 2 x 384-bit
- Stream processors: 2 x 512
- TMUs: 2 x 64(BLF/TLF/ANIS)
- ROPs: 2 x 48
- Size: 280x111x33 mm
- PCB color: black
- RAMDACs/TDMS: integrated into GPU
- Outputs: 3 x Dual-Link DVI, 4 x mini DisplayPort
- Multi-GPU mode: hardware SLI
|
 |
| Comparison with the reference design, front view |
| NVIDIA GeForce GTX 590 |
Reference NVIDIA GeForce GTX 580 |
 |
 |
| Comparison with the reference design, rear view |
| NVIDIA GeForce GTX 590 |
Reference NVIDIA GeForce GTX 580 |
 |
 |
As you can see, GTX 580 and GTX 590 have nothing in common, except for dimensions. After all, GeForce GTX 590 has twice as many memory chips and GPUs.
The card has two 8-pin supplementary power connectors.
Maximum resolutions and frequencies:
- 240 Hz maximum refresh rate
- 2560 x 1600 @ 60Hz max. digital resolution
- 2048 x 1536 @ 85Hz max. VGA resolution

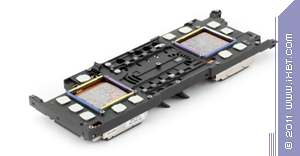

Cooling
Traditionally, we monitored temperatures using EVGA Precision (based on RivaTuner).
NVIDIA GeForce GTX 590
A great result for such a powerful graphics card. Only 87°C after 8 hours of continuous operation under workload is just excellent. The only question that remains is whether quietness is achieved at the expense of performance. Well, read on.
