i3DSpeed, April 2010
ATI RADEON HD 4850 1024MB DDR3 (625/625/2000 MHz)
Andrey Vorobiev; May 6, 2010.

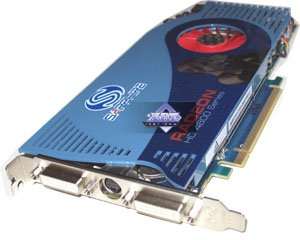

On the example of Sapphire RADEON HD 4850 1024MB DDR3 (625/625/2000 MHz).
Price: Newegg, Amazon.
- GPU: RADEON HD 4850 (RV770)
- Memory: 1024 MB GDDR3 SDRAM in 8 Hynix chips on the front side; 1200 (2400) MHz peak clock rate
- Interface: PCIe x16
- GPU (ROPs/Shaders) clock rate: 625/625 MHz (nominal)
- Memory clock rate, physical (effective): 990 (1980) MHz (1000 (2000) MHz nominal)
- Bus width: 256-bit
- Vertex processors: -
- Pixel processors: -
- Unified processors: 800
- Texture processors: 40 (BLF/TLF)
- ROPs: 16
- Size: 220x100x16 mm
- PCB color: blue
- RAMDACs/TDMS: integrated into GPU
- Outputs: 2 x DVI (Dual-Link/HDMI), TV-out (integrated into GPU)
- VIVO: -
- Multi-GPU: Hardware CrossFire
This card features its own audio codec, so nothing else is required to output audio to HDMI.
Maximum resolutions and frequencies:
- 240 Hz maximum refresh rate
- 2048 x 1536 x 32bit @ 85Hz Max - analog interface
- 2560 x 1600 @ 60Hz Max - digital interface (all Dual-Link DVIs)
MPEG2 playback (DVD-Video) was analyzed back in 2002 and little has changed since that time. Modern graphics cards do not load CPUs during video playback by more than 25%.
The HDTV review is available here.
We thank Sapphire
for the provided graphics card.
