Chaintech 9CJS Zenith Mainboard (i875P)
|
The distinguishing feature of this board is the richest accessory pack and
the maximum functional support. Boards of this line excellently use capabilities
of this chipset, and this particular model is a good representative of the whole
line. We have tested a preproduction sample. Accessories: - Package
of a stylish design with a handle;
- Cables: 2 SATA, 2 ATA66/100/133
and FDD - they are covered with blue cambric to improve ventilation inside the
case;
-
SATA power supply splitter;
- CBOX3 panel with an IR port, 2 USB 2.0 connectors,
Audio-In/Out, 1 FireWire port, 2 7-LED segments for the POST procedure and then
a CPU temperature, and CF, MMC, MS, SMC, SD card reader;
-
Three removable covers for the front panel of CBOX3 of different colors;
-

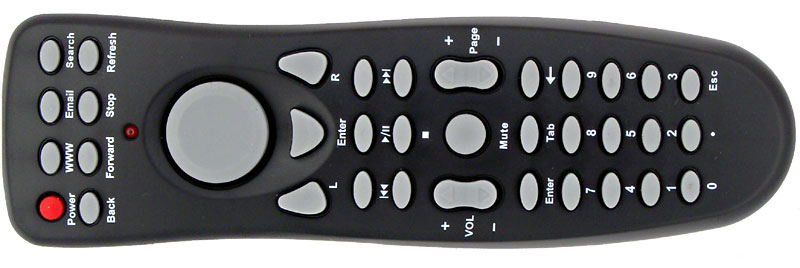

Infrared PC remote control;
-
CNR expansion card with S/PDIF-Out connectors TosLink, Act. L/R, Sur. L/R, Center/Bass
and 2 FireWire ports;
-
Optical cable with TosLink connectors and miniTosLink-TosLink adapter;
-
Blank bracket;
- Screwdriver with 4 removable heads;
-
thermal grease;
- 2 CDs with:
- drivers;
- user guide;
-
AutoSave;
- Norton Antivirus 2002;
- Adobe ActiveShare;
-
Adobe Acrobat Reader;
- Adobe eBook Reader;
- ImageMore.

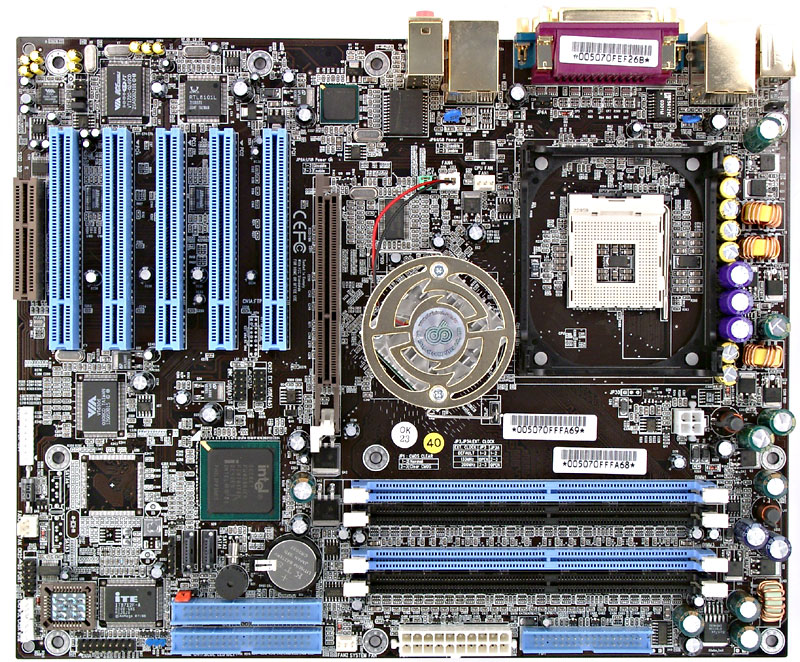

The layout is standard. Unfortunately, the IDE connectors are behind the PCI
slots, and there are too many connectors around the DIMM slots. Also, it can be
difficult to reach some jumpers when the board is already installed. Their functions
are shown on the textolite. The 3-channel switching voltage regulator
incorporates 3 capacitors of 3300 uF and several less capacious ones. There is
also a memory voltage regulator (3 capacitors of 1500 uF). Integrated controllers:
- audio controller based on the chipset and VIA Envy24PT codec; 7.1 audio
system supported, front audio-outs and SPDIF connectors provided;
- 2 network
controllers, one based on the Realtek RTL8101L supporting 10BaseT/100BaseTX, and
the other on the Intel 82547EI (Kenai II CSA) supporting 10BaseT/100BaseTX/1000BaseT
(Gigabit Ethernet);
- FireWire bus controller on the VIA VT6306 chip with
support of 3 ports.
Non-unsoldered connectors: additional controller
SATA RAID and its connectors. System monitoring is supported by ITE IT8712F-A
chip. It controls: - processor, memory voltages, 1.5, +3.3, +5 and +-12
V, VBAT and +5 V Standby
- speed of 3 fans;
- temperatures
of the processor (built-in sensor) and the board (built-in sensor).
There
are 2 connectors for adjustable and 3 for unadjustable connection of fans (one
of them is connected to a fan on the MCH's heatsink). Brief board's
characteristics: memory slots - 4 DDR SDRAM; expansion slots - AGP/ 5 PCI/
CNR; I/O ports - 2 COM/ LPT/ 2 PS/2/ 8 USB 2.0 / 3 FireWire; dimensions - 305x245
mm.
Settings:
| jumpers and switches |
CMOS Clear jumper |
|
| Jumpers for setting FSB clock speed |
Default/133/200 MHz |
| Jumpers for starting up computer from a USB keyboard |
|
| BIOS based on Phoenix AwardBIOS 6.00PG |
Setup of memory timings |
+ |
CAS Latency, Active to Precharge Delay, RAS to CAS Delay, RAS
Precharge |
| Setup of memory frequency |
+ |
Auto, DDR266, DDR333, DDR400 |
| Setup of AGP bus |
- |
|
| Setup of PCI bus |
- |
|
| Changeable scaler of AGP and PCI buses |
+ |
AGP(PCIx2) = Synch., 66-100 MHz in 1MHz steps |
| Manual assignment of interrupts |
- |
|
| Changeable FSB frequency |
+ |
100-400 MHz in 1MHz steps |
| Changeable CPU multiplier |
+ |
x8-x50 |
| Changeable core voltage |
+ |
1.1-1.85 V in 0.0125-0.025V steps |
| Changeable memory voltage |
+ |
Default, +0.1, +0.2, +0.3 V |
| Changeable chipset voltage |
- |
|
| Changeable AGP bus voltage |
+ |
Default, +0.1, +0.2, +0.3V |
We used the BIOS of 30.04.2003 as the latest
available version. The board doesn't yield to its competitors in functions
and outpaces most of them in accessories. This is how a top model meant for demanding
home users must look like. Test results:
