ABIT IC7-G (i875P) Mainboard
It looks like that the company stepped back from the radical MAX series: the
lack of COM, LPT and PS/2 ports wasn't accepted by the market, and two lines is
too much for a narrow niche of high-performance systems. Now ABIT focuses on the
Serial ATA support:).
- Package of a new austere
- Documentation: user manual in English, brief installation manual
in 9 languages;

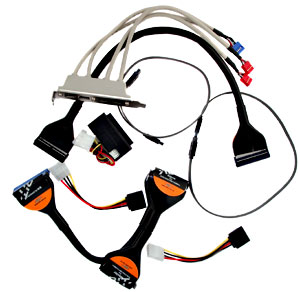

- Cables: 2 SerialATA, ATA66/100/133 and FDD - the last
two cables are covered with black cambric to improve ventilation inside the case;
ABIT Serillel2 adapter for connecting PATA equipment to Serial ATA;
supply splitter for the Serillel adapter;
- 2 power supply adapters for
- Bracket with 2 USB and 2 FireWire ports;
- Diskette with drivers for external SATA RAID;
- user guide;
- DirectX 9.0;
Adobe Acrobat Reader;
- Hardware Doctor;
- ABIT FlashMenu (checks
for BIOS updates via the Internet and flashes in newer versions under Windows).

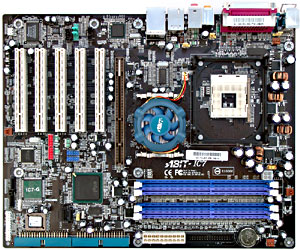

The layout is not standard, but this time it's easy to reach IDE connectors
located behind the PCI slots; besides, the memory slots do not have as much stuff
around as before, and nothing prevents installation of full-size PCI cards. The
only downside is that the audio connectors are placed in front of the PCI slots.
It can be difficult to access the jumpers that let the system start from USB and
PS/2 equipment, but the value is to be set only once, and the CMOS clear switch
which is often used is easy to reach. Functions of most jumpers are not shown
on the textolite.
The 4-channel switching voltage regulator incorporates 8
capacitors of 2200 uF and several less capacious ones. There are also voltage
regulators of the AGP bus (2 capacitors of 1000 uF) and of the memory (4 of 1000
- audio controller based on the chipset
and Avance Logic ALC650 AC'97 codec; 5.1 audio system supported, front audio-outs
and SPDIF connectors provided;
- network controller based on the Intel
82547EI (Kenai II CSA) chip, 10BaseT/100BaseTX/1000BaseT (Gigabit Ethernet) supported;
SATA RAID controller on the Silicon Image Sil3112ACT144 chip supporting RAID 0
and 1 on the SATA150 protocol;
- FireWire bus controller based on the Texas
Instruments TSB43AB23 chip with the support of 3 ports.
+5 V supplied
in the StandBy mode is indicated with the green LED. The red LED goes on at the
Non-unsoldered connectors: none.
System monitoring is supported
by Winbond W83627HF-AW chip. It controls:
- processor, AGP bus,
memory voltages, +3.3, +5 and +12 V, VBAT and +5 V Standby;
of 3 fans;
- temperatures of the processor (built-in sensor) and
the board (2 built-in sensors).
There are 2 connectors for adjustable
and 3 for unadjustable connection of fans (one of them is connected to a fan on
the MCH's heatsink).
Brief board's characteristics: memory slots
- 4 DDR SDRAM; expansion slots - AGP/ 5 PCI; I/O ports - 1 COM/ LPT/ 2 PS/2/ 8
USB 2.0 / 3 FireWire; dimensions - 305x245 mm.
|jumpers and switches
||CMOS Clear jumper
|Jumper for starting up computer from PS/2 equipment
|Jumper for starting up computer from USB equipment
|BIOS based on Phoenix AwardBIOS 6.00PG
||Setup of memory timings
||CAS Latency, RAS Precharge, RAS to CAS Delay, Act to Precharge
|Setup of memory frequency
||CPU:DRAM = Auto, 1:1, 5:4, 3:2
|Setup of AGP bus
|Setup of PCI bus
|Changeable scaler of AGP and PCI buses
||AGP(PCIx2) = 66-99 MHz in 1MHz steps
|Manual assignment of interrupts
|Changeable FSB frequency
||100-412 MHz in 1MHz steps
|Changeable CPU multiplier
|Changeable core voltage
||1.1-1.925 V in 0.025V steps
|Changeable memory voltage
||2.5-2.8 V in 0.05V steps
|Changeable chipset voltage
|Changeable AGP bus voltage
||1.55-1.65 V in 0.05V steps
We used the BIOS 11 as the latest available
The board has everything for functional expansion and for good
electrical support of the system in normal and overclocked conditions. Besides,
it provides the best support for migration to the Serial ATA.
