MSI X48C Platinum Motherboard

A top-end product supporting both DDR2 and DDR3

April 15, 2008



  • Intel X48 Chipset (X48 Northbridge + ICH9R Southbridge)

Like many manufacturers, MSI has announced its motherboards on the Intel X48 chipset prior to the official announcement of the latter. In fact, motherboard manufacturers should not be blamed: the chipset was ready for the mass market long ago (MSI had enough time with test samples), but for a number of marketing reasons Intel delayed the rollout of the chipset (almost since early January). However, when this article was ready, Intel already published information about this chipset on its web site.

In this situation, the review of a motherboard should be preceded by a description of the X48 chipset. Fortunately, it won't be a long story. The new product differs from the top Intel X38 (launched last summer) only in the lack of DDR2 support and 1600MHz FSB/memory clock rate. Similar changes will be made to all desktop chipsets from Intel, the series will be renamed from 3x to 4x. However, Mid-End chipsets will be rolled out only this summer. So if you want a computer with a 1600 MHz FSB (DDR3-1600 is not of current importance), Intel is ready to offer such a solution. Motherboard manufacturers also offer an alternative—bus-overclocked products on the P35 (we'll review such a motherboard from Biostar in the future). What concerns chipsets, NVIDIA is going to present the updated nForce 790i (it will also be reviewed in the nearest future).

By the way, one of the arguments for using older chipsets is their support for DDR2 memory. Indeed, many computer enthusiasts, who plan an upgrade with the launch of faster processors, are not willing to change their expensive memory kits for overclockers. Common users will certainly prefer DDR2 memory as well, if they have a look at prices. That's the explanation for the current situation, typical of transition periods, when even top motherboards on new chipsets support an old memory type, even though enthusiasts shouldn't be scared away by high prices.

In this case, however, MSI uses a rarer option: the X48C Platinum motherboard contains slots for both types of memory (that's a relatively usual situation for a transition period, when such a technology is supported by a chipset) and a circuit to switch between the operating modes of the chipset memory controller. Unfortunately, it's not a very good solution, because a user has to install two stubs into memory slots of the unused type. These cards can be flipped to fit a slot type. To make up for the bulky solution, these stubs are equipped with LEDs that indicate the current memory type and help diagnose startup problems (if they don't light up, you have a problem).

Except for the area of memory modules, the motherboard looks quite ordinary: the first thing that attracts attention is the heatpiped chipset cooling system. We've already seen a similar solution in P35 Platinum (by the way, this implementation of Circu-Pipe is much smaller and has fewer heat sinks, although the chipset is a tad hotter because of the higher FSB clock rate). Only the second glance reveals a little discrepancy: the cooling system is designed for three chipset bridges (or other hot chips). It's a strange situation, because the motherboard does not have additional elements that require such cooling according to its specifications. They are installed (one component only) in the more expensive MSI X48 Platinum. The mysterious third chip is a PCI Express expander (it's a bridge that routes peripheral PCI-E lanes of the Southbridge to two additional PCIEx16 slots for a quad-card graphics system). There wouldn't have been anything strange in this fact (manufacturers often design common PCB layouts for similar motherboards—but the fact is, X48 Platinum significantly differs from X48C Platinum in PCB design (in particular, the top model supports only DDR3 and has four slots for such memory).

Well, in our case the third heat sink expectedly covers empty PCB. Judging by photos on the MSI web site, PCB layout of the retail product will remain the same (however, the third heat sink and its heat pipe will be removed). Having examined all strange elements of the motherboard, let's return to the "normal" issues. The above mentioned solutions leave almost no free room on the PCB. Moreover, there have appeared some problems with the layout of elements: for example, it's difficult to open/close latches on memory slots after a graphics card is installed. On the other hand, all HDD connectors lie on their sides, so even the longest expansion card won't block them. Another advantage of this PCB layout for many users is three PCI slots accessible even if you install a very thick graphics card. According to the documentation, the motherboard should be equipped with power and reset buttons (they were not installed in our sample), which may be a nice addon for some users.


The motherboard uses an unusual switching voltage regulator for a CPU: it uses two independent 4-phase PWM controllers (two field-effect transistors per phase), which should theoretically be better than an 8-phase controller used in many top motherboards. The motherboard uses only polymer capacitors (not only in CPU power circuits, everywhere), Low ESR, made in Japan. There are many of them in the CPU power circuit (12 x 820 uF for 2.5 V and 3 x 470 uF for 16 V—they are all made by Sanyo). Much attention is paid to the memory power system: it uses several chokes and Sanyo capacitors. Besides, MSI uses ferrite chokes instead of iron chokes, so they consume less power and remain cooler. By the way, the cooling system of the chipset does a great job, so heat sinks on chipset bridges are barely warm. Motherboard dimensions—305x245 mm (full-size ATX), nine-screw mount, all edges of the motherboard are fixed.

System monitoring (Fintek F71882F, BIOS Setup)

  • CPU voltage, +3.3 V, +5 V, +12 V, and +5 V Standby
  • Amperage of the CPU power circuit and the 12 V line
  • Rotational speed of three fans, one of them allows automatic fan speed control, the other can be controlled manually
  • CPU and board temperatures (by the corresponding embedded sensors)
  • Automatic CPU fan speed control depending on temperature: you can specify target temperature for a CPU (40-70B°C) and fan speed (at 12.5% steps) for lower temperatures.

Besides, the motherboard allows to control rotational speed of one system fan directly (unlike the popular automatic control): you can set the speed at 25% steps.

The monitoring section of BIOS Setup shows efficiency factor of the switching voltage regulator (power at the input of the PWM controller and at the output) in order to evaluate efficiency of the CPU power circuitry. This is a useless option for BIOS Setup, where the CPU load is close to zero. But monitoring this parameter during real tasks using MSI Dual Core Center may provide interesting information. Unfortunately, Dual Core Center failed to work with this motherboard—probably a newer version of this utility is required. This program usually offers rich options for overclocking and monitoring, including control over rotational speed of system fans.

Onboard ports, sockets, and connectors

  • Processor socket: Socket 775, support for Core 2 Duo/Quad/Extreme and other processors with FSB operating at 800-1600 MHz (the manufacturer's web site published no information about compatible processors at the time this article was written), including 45 nm models
  • 2 x DDR2 SDRAM DIMM (up to 4 GB of DDR2-667/800; dual-channel mode is supported when both slots are filled), the list of certified modules is published on the manufacturer's web site, DDR2 does not work together with DDR3
  • 4 x DDR3 SDRAM DIMM (up to 8 GB of DDR3-800/1066/1333/1600; dual-channel mode is supported when both slots are filled), the list of certified modules is published on the manufacturer's web site, DDR3 does not work together with DDR2, support for Intel XMP initiative
  • 2 x PCIEx16 for graphics cards: both of them always operate in x16 mode, they support PCI-E 2.0 and CrossFire
  • 2 x PCIEx1
  • 3 x PCI
  • Power connectors: standard ATX 2.2 (24 pins, you can also plug a regular 20-pin ATX 2.03 connector) and 8-pin EPS12V for a processor (you can also plug a regular 4-pin ATX12V connector even without an adapter, but it must supply at least 18 A in the +12 V line for the processor)
  • 1 x FDD
  • IDE (Parallel ATA) for two ATA133 devices based on the additional Marvell controller
  • 4 x SATA-II (Serial ATA II) for 4 x SATA300 devices with AHCI support, based on the chipset, connected drives can form RAID 0, 1, 0+1, 5, and Matrix RAID together with drives connected to eSATA ports on the rear panel
  • 2 connectors for brackets with 4 additional USB ports
  • Connector for a rear panel bracket with 1 x additional FireWire
  • Connector for a bracket with a COM port
  • 1 x CD/DVD audio connector
  • Connectors for analog audio ins and outs on the front panel
  • Connector for a bracket with S/PDIF-Out
  • Connector for a Chassis Intrusion sensor
  • Six(!) fan headers (3 of them offer rpm control), 4-pin header for a CPU fan allows automatic rpm control, one of the others—forced fan speed control.

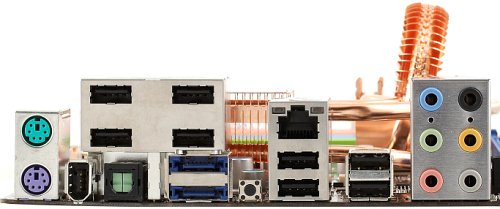

Back panel (left to right, blockwise)

  • PS/2 mouse and keyboard
  • 1 x FireWire (6-pin), 1 x optical S/PDIF-Out (Toslink), 2 x eSATA, and 4 x USB 2.0
  • CMOS reset button
  • 2 x USB 2.0 and 1 x RJ-45 (Gigabit Ethernet)
  • 2 x USB 2.0
  • 6 x analog audio jacks: Line-In, Front, Mic-In, Rear, Center/Sub, Side.

This rear panel also places four USB ports in a separate group. It looks unusual, but it's very convenient: you will hardly find two devices with conflicting USBs, when they are plugged to the motherboard, including USB sticks of the most exotic shapes. Besides, MSI engineers borrowed a very good idea from Shuttle: you can now reset CMOS even without opening your PC case, which is, of course, much more convenient than even a button on the motherboard.

Package Contents

  • Package: a standard cardboard box of the new design that appeared for motherboards on Intel 3x chipsets
  • Documentation: detailed User Manual in English
  • Cables: 4 x SATA (with two power splitters for two devices), 1 x ATA66, 1 x FDD—both red cables are equipped with pull straps to make it more convenient to unplug them
  • Rear panel bracket with 1 x FireWire and 2 x USB

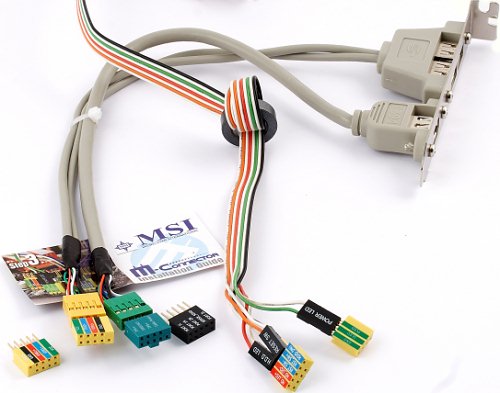

  • M-Connector kit: several connectors, to which you can plug wires from the buttons and indicators on the front panel, and then these connectors are plugged into a corresponding header on the motherboard. So it's much more convenient to plug thin wires with small connectors (and you don't have to scrutinize designations on motherboard headers trying to stick your head in your PC case, because only experienced reviewers remember pinouts by heart). So we'd like to thank MSI (and a number of other companies that support this initiative.) However, we are surprised to see similar connectors for external USB and FireWire ports: in 99% cases their cables end in a standard plug, so a special connector will hardly help you here

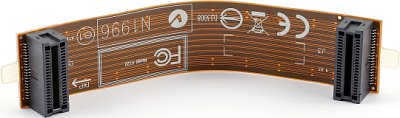

  • A flexible CrossFire bridge

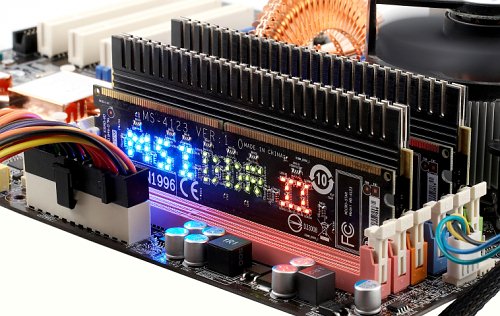

  • Two stubs for DDR2/DDR3 Turbo Memory slots, which switch between operating modes of the integrated memory controller and illuminate a PC case :)
  • Rear I/O shield
  • CDs with necessary drivers (for Windows XP and Vista) and utilities, including Dual Core Center, DOT Express (to monitor system parameters, control fan speed, overclock the system, etc), and Live Update (to download and update drivers, utilities, and BIOS versions via Internet).

Integrated Controllers

  • Audio, based on the 10-channel (7.1+2) HDA codec Realtek ALC888 (modern Mid-End codec), 7.1-ch audio, front line-ins/outs and optical S/PDIF-Out jacks
  • Gigabit Ethernet, based on Realtek RTL8111B (PCIEx1), supporting 10/100/1000 Mbps
  • IDE/SATA-II, based on Marvell 88SE6111 (PCIEx1) supporting two ATA133 devices and one SATA300 (the motherboard uses only a part of the available PATA functionality)
  • FireWire, based on the VIA VT6308P chip supporting two devices (PCI)

The integrated audio quality was tested in 16 bit 44 kHz mode using RightMark Audio Analyzer 6.0 and the Terratec DMX 6fire sound card:

Frequency response (from 40 Hz to 15 kHz), dB
+0.04, -0.26
Very good
Noise level, dB (A)
-92.2
Very good
Dynamic range, dB (A)
92.2
Very good
THD, %
0.0011
Excellent
Harmonic distortion + noise, dB(A)
-85.4
Good
Intermodulation distortion + Noise, %
0.0083
Very good
Channel crosstalk, dB
-90.7
Excellent
IMD at 10 kHz, %
0.0073
Excellent

General performance: Very good. This motherboard uses a high quality but simple 10-channel audio codec ALC888, which does not possess additional functions to interest home users (for example, DTS or real-time AC-3 encoding to output audio to S/PDIF). In return, analog audio output is on a very good level, being one of the best representatives of the integrated audio.

The motherboard uses Marvell 88SE6111 IDE controller, employed in the latest MSI products, so you don't have to worry about support for hard drives with the old interface: from our experience we know that this solution allows to boot up from CD, install an operating system from CD/DVD, it does not require to update specific managers to work with disc images and drivers in Windows XP—that is it's practically an ideal solution for owners of IDE devices. But reality was crudely different. In this very case the motherboard failed to boot up from a CD drive with the IDE interface. Moreover, when we plugged a DVD drive to the interface without connecting a power cable, it froze the system at the stage of device initialization (it may bring inexperienced users to stupor.) It's hard to determine the reason of such differences in Marvell 88SE6111 operations in different motherboards; we can only hope that BIOS updates will fix the problem.

Settings

Jumpers and switches Clear CMOS jumper
AMI BIOS 2.61 Allows to disable specific CPU functions + Hyper-Threading, No-Execute Memory Protect, EIST
Memory timings + By SPD, CAS Latency, RAS# to CAS# Delay, RAS# Precharge, RAS# Activate to Precharge, 1N/2N Memory Timing, TRFC, TWR, TWTR, TRRD, TRTP
Memory frequency selection + Auto or a multiplier to the FSB frequency: 1:1, 1:1.2, 1:1.33, 1:1.5, 1:1.6, 1:2
Peripheral bus frequency control + PCI-E: 100-200 MHz at 1 MHz steps
PCI: 33.3, 33.6, 37.3, 42.0 MHz
PCI IRQ manual assignment -
FSB frequency setup + 200-800 MHz at 1 MHz steps, there is an option of dynamic CPU overclocking
CPU multiplier +
CPU core voltage control + Auto, up to +0.7875 V at 0.0125 V steps
Memory voltage control + DDR3: Auto, 1.50-2.75 V at different steps
DDR2: Auto, 1.8-3.3 V at different steps
Chipset voltage control + Northbridge: Auto, 1.25-1.83 V at different steps
Southbridge: Auto, 1.50-1.80 V at different steps
FSB voltage setup + Auto, 1.20-1.44 V at different steps

We used BIOS 7.0b6 dated 03.03.08, the latest available BIOS version at the time of our tests. The mentioned BIOS parameters are available in this version, but the viability of non-standard settings hasn't been tested. Your BIOS settings can be saved into two profiles, which can be restored from BIOS Setup (it's a useful feature for overclocking experiments). Flashing the latest BIOS version was not very easy: the fact is, MSI does not publish new BIOS versions on its web site to be downloaded via http. Instead, a user has to use MSI utilities, which automatically download necessary updates from the web site. It's difficult to take into account all pros and cons of this approach (perhaps, it has more pros than cons), but it's certainly an unusual situation.

You can also change six voltages: CPU GTL Reference Voltage 1, CPU GTL Reference Voltage 2, MCH GTL Reference Voltage, DDR CHA Reference Voltage, DDR CHB Reference Voltage, MCH DDR Reference Voltage.

We haven't tested memory modules with XMP so far, even though the X48 chipset was the first to offer such support. Theoretically, the situation should be similar to that with EPP: BIOS Setup will allow to choose one of performance profiles and adjust its parameters, when necessary.

Performance

Testbed configurations:

  • CPU: Intel Core 2 Duo E6600 (2.4 GHz, 1066 MHz bus)
  • Memory:
    • 2 x 1 GB Corsair CM2X1024-9136C5D (tested in DDR2-800 mode with 4-4-4 timings)
    • 2 x 1 GB Kingston KHX13000D3LLK2/2G (tested in DDR3-1066 mode with 7-7-7 timings)
  • Graphics card: ATI Radeon X1900 XTX 512 MB
  • HDD: Seagate Barracuda 7200.7 (SATA, 7200 rpm)
  • PSU: HiPro W460GC31
  • OS: Windows XP SP2

From all chipsets we've seen so far, only the Intel 3x series supports DDR3. So it was easy to find a competitor to MSI X48C Platinum: a motherboard from the same manufacturer (also supporting both memory types) based on P35—P35 Neo Combo. This is a modern motherboard with average functionality (among representatives of all chipsets): there are no performance leaders now at all.

Test MSI X48C Platinum/DDR2 MSI P35 Neo Combo/DDR2 MSI X48C Platinum/DDR3 MSI P35 Neo Combo/DDR3
Archiving with 7-Zip, min:sec 4:18 4:17 4:17 4:17
MPEG4 (XviD) encoding, min:sec 3:37 3:37 3:37 3:37
FarCry (Low@640x480), fps 350 352 350 354
FarCry (Highest@1600x1200), fps 152 152 153 151
Doom 3 (Low@640x480), fps 214 215 216 218
Doom 3 (Highest@1600x1200), fps 123 121 123 121

There may be only an insignificant performance difference between the motherboards.

However, it should be noted that DDR3 support was added to P35 Neo Combo artificially (at least at the time of these tests and with the above-mentioned BIOS version): there were no normal memory timings and voltages typical of DDR3. X48C Platinum looks great versus its competitor: it offers a full set of timings for both memory types, including Command Rate (1T/2T). Besides it can boast of a cunning algorithm for supplying memory voltage—it recalculates the last voltage specified in BIOS Setup for the current memory type. So if you upgraded your memory from DDR2 to DDR3, there is no need to change anything in BIOS—the motherboard will automatically change 1.8 V to 1.5 V. If the system was configured for higher (by 25%) DDR2 voltage (2.25 V is too high for DDR3, it may damage memory modules), and then you upgraded to DDR3, the voltage level will be adjusted proportionally to a relatively safe value—1.5 V + 25% (1.88 V).

Besides, the new motherboard allows to use DDR3 modules in their native modes. So, for example, DDR3-1066@6-6-6-1T demonstrates a little advantage of the MSI X48C Platinum over the MSI P35 Neo Combo, which cannot use this mode.

Conclusions

This MSI motherboard differs from the existing and announced products on Intel X48 in two aspects: chipset cooling system (Circu-Pipe) and support for two memory types. Any top model (manufacturers will hardly offer other products on X48) will try to distinguish itself in shape and number of heat pipes in its cooling system, of course. But we can be sure that we like this MSI product and the functions it offers. Besides, it solved almost all problems with its dimensions.

Support for two memory types is a rare feature for this class of motherboards, so MSI X48C Platinum definitely stands out here. Time will show whether users need this solution. We can only say that the product implements this hybrid technology on a good level. Our Original Design award is well deserved.

On the whole, X48-based motherboards won't have a serious impact on the market: only memory manufacturers dream about upgrading to DDR3 now, processors with the 1333 MHz FSB will work fine in motherboards based on Intel 3x chipsets, while processors with the 1600 MHz FSB will be represented only by top extreme solutions until the summer announcement of Intel 4x chipsets. Nevertheless, this very motherboard is a good choice: it cannot replace P35/G33-based products only because it's more expensive, but it can outscore X38 products.

Motherboard provided by the manufacturer

Sergey Pikalov (peek@ixbt.com)
April 15, 2008
