PowerColor RADEON X800 XL 256MB
PowerColor RADEON X800 256MB
PowerColor RADEON X850 XT PE 256MB
Based on ATI RADEON X800/X800XL/X850XT








Contents

  1. Introduction
  2. Video cards' features
  3. Testbed configurations, benchmarks
  4. Test results: TRAOD
  5. Test results: FarCry Research
  6. Test results: FarCry Regulator
  7. Test results: FarCry Pier
  8. Test results: Half-Life2, ixbt01
  9. Test results: Half-Life2, ixbt02
  10. Test results: Half-Life2, ixbt03
  11. Test results: DOOM III
  12. Test results: 3DMark05 Game1
  13. Test results: 3DMark05 Game2
  14. Test results: 3DMark05 Game3
  15. Test results: 3DMark05 MARKS
  16. Test results: Chronicles of Riddick, demo 44
  17. Test results: Chronicles of Riddick, demo ducche
  18. Conclusions



We proceed with our analysis of new video cards with PCI-Express interface. Yes, this sector is not large so far and our readers may take fair offense that so much attention is paid to such cards, while the very large AGP segment of the market is left out of focus.

The fact is that there are almost no new AGP cards, except for the GeForce 6xxx series, which we analyze very closely. So it's not the test labs that offend readers and users, it's the manufacturers of video processors and cards who are straining to grow the demand for PCI-E.

Today our test lab will examine three products from TUL (the former C.P.Technology), which is more known as PowerColor. As you may have already guessed, all the three are with PCI-E interface: the RADEON series flagship: the X850XT Platinum Edition (PE), the X800 XL (an average card in the High End segment) and the X800 (a junior model in the High End segment). The X800 was actually planned as a Middle End video card (upper bound) at about 200-220 USD. However, the market offers video cards with 256 MB of very expensive GDDR3 so far, thus 200 USD is out of the question now. Now these cards are sold at 300-320 USD. So we shall compare the X800 with the GeForce 6600GT PCI-E as well as with the GeForce 6800 PCI-E, because the actual cost of the PowerColor product (as well as of the other X800) varies within the price range of the above mentioned competitors from NVIDIA.

What concerns the X800 XL, its price is also too high so far, and thus it will have to be compared with the GeForce 6800GT (the latter is more expensive anyway) and the GeForce 6800 will have to be taken for the lower price bound.

Here is how the marketing picture looks like:

  • RADEON X850 XT PE competes with GeForce 6800 Ultra (their prices are approximately at the 600-620 USD level)
  • RADEON X800 XT PE (leaves the market) also competes with the 6800 Ultra
  • RADEON X850 XT competes with GeForce 6800GT (the prices are about 500 USD, but in this case the 6800GT is still cheaper)
  • RADEON X800 XT (leaves the market) also competes with the 6800GT
  • RADEON X850 PRO competes with GeForce 6800GT (the situation with prices is vague so far)
  • RADEON X800 XL competes with GeForce 6800
  • RADEON X800 competes with GeForce 6600GT

As you can see, the life obviously thwarts the marketing ambitions. Sometimes the real prices put the competitors in other weight categories, different from the intended by ATI and NVIDIA employees.

We cannot fail to notice these realia of life and that's why we'll compare the cards according to their real market prices. Yes, I understand that the prices may change in time and this review may become obsolete. But we always publish a lot of materials and are capable of updating this picture providing you with fresh data.

So, we have three video cards from TUL. As you may know, before the manufacturer entered financial holding Foxconn, the low quality of PowerColor products was notorious. After reorganization (marked by the new company name – TUL) there were taken serious steps to introduce proper order and the quality of video cards jumped up, having raised the popularity bar of the brand in general (the new Foxconn board of directors set a strict task to raise the level to the leading world brands, otherwise the company would be just disbanded).

Today the quality level of PowerColor products is on a par with such brands as Sapphire, ASUS, Gigabyte, etc. So it's very interesting to review these new cards.

Video Cards



PowerColor RADEON X800 XL 256MB
Interface: PCI-Express x16

Frequencies (chip/memory – physical (memory – effective): 400/490 (980) MHz (nominal – 400/500 (1000) MHz)

Memory bus width: 256bit

Number of vertex pipelines: 6

Number of pixel pipelines: 16

Dimensions: 190x100x16mm (the last figure is the maximum thickness of a video card).

PCB color: red.

Output connectors: 2xDVI, S-Video.

VIVO: available (RAGE Theater)

TV-out: integrated into GPU.




PowerColor RADEON X800 256MB
Interface: PCI-Express x16

Frequencies (chip/memory – physical (memory – effective): 390/350 (700) MHz (nominal – 400/350 (700) MHz)

Memory bus width: 256bit

Number of vertex pipelines: 6

Number of pixel pipelines: 12

Dimensions: 190x100x16mm (the last figure is the maximum thickness of a video card).

PCB color: red.

Output connectors: 2xDVI, S-Video.

VIVO: available (RAGE Theater)

TV-out: integrated into GPU.




PowerColor RADEON X850 XT PE 256MB
Interface: PCI-Express x16

Frequencies (chip/memory – physical (memory – effective): 540/590 (1080) MHz (nominal – 540/590 (1180) MHz)

Memory bus width: 256bit

Number of vertex pipelines: 6

Number of pixel pipelines: 16

Dimensions: 190x100x36mm (the last value is the maximum thickness of a video card in its cooler section).

PCB color: red.

Output connectors: 2xDVI, S-Video.

VIVO: available (RAGE Theater)

TV-out: integrated into GPU.






PowerColor RADEON X800 XL 256MB; PowerColor RADEON X800 256MB; PowerColor RADEON X850 XT PE 256MB
The cards have 256 MB GDDR3 SDRAM allocated in 8 chips on the front and the back sides of the PCB.

Samsung (GDDR3) memory chips. 1.6ns memory access time, which corresponds to 625 (1250) MHz.






Comparison with the reference design, front view
PowerColor RADEON X800 256MB
Reference card ATI RADEON X800 XL









PowerColor RADEON X800 XL 256MB






PowerColor RADEON X850 XT PE 256MB
Reference card ATI RADEON X850 XT











Comparison with the reference design, back view
PowerColor RADEON X800 256MB
Reference card ATI RADEON X800 XL






PowerColor RADEON X800 XL 256MB



PowerColor RADEON X850 XT PE 256MB
Reference card ATI RADEON X850 XT











First of all it should be noted that the frequencies in some cards are reduced by 10 MHz relative to the nominal values. TUL is not to blame for it, ATI ordered to lower frequencies by 10 MHz to be on the safe side and to keep the power consumption of the cards below 75 W. But you can see that TUL designers were double precautious with the X800 XL: the nominal frequency is reduced and the card is equipped with an external power connector (pay special attention to this feature). ALL X800 cards are equipped with 1.6ns memory. Later on it will be clear that it was useless, it just raised card prices giving little in return.

What concerns the X850 XT PE, it's just a reference card manufactured on ATI's order, where PowerColor just attaches its stickers. That's why any peculiarities are out of the question, we have reviewed such cards many times.

All the three cards have VIVO, where VideoIn is based on RAGE Theater:




Besides, all the products have two DVI jacks, regular monitors with d-Sub can be connected via the corresponding adapters that come shipped with the bundle.

Let's review the cooling systems.

PowerColor RADEON X800 XL 256MB; PowerColor RADEON X800 256MB

It's a closed-type heatsink with an off-center fan, which drives the air along the heatsink over GPU. The air is sucked in from inside the PC case and is blown out back to it, but it does not diminish the efficiency much, because the heating is not that intense (0.11-micron process technology, and the frequencies are not too high).

That's all what concerns similarities. PowerColor RADEON X800 XL 256MB uses a fan with a tachometer. So its rotational speed can vary from 2500 to 5000 rpm depending on the temperature. PowerColor RADEON X800 256MB lacks this feature, its fan is set to strict 2500 rpm. The cards produce no noise at startup.

You can watch a video clip and evaluate the startup noise of the computer at this link (1.1MB, AVI DivX 5.1) for PowerColor RADEON X800 XL 256MB. This link (900KB, AVI DivX 5.1) is for PowerColor RADEON X800 256MB. You can also compare it with the background noise without a video card (740KB, AVI DivX 5.1).







PowerColor RADEON X850 XT PE 256MB

It's a turbine-type device. The turbine is installed approximately in the center of the step housing that draws the air through the end of the plastic pipe and blows it out of the PC case through the bell. The video card is equipped with a special grid bracket so that a user couldn't install the card into a PC case where the second slot after PCI-E is bracketed.

Turbine rotational speed is from 2500 to 6000 rpm, so the startup noise is strong. It's not actually a noise, it's turbine roar similar to FlowFX. The roar stops a couple of seconds after startup and the turbine rpm drops to minimum.

You can watch a video clip and evaluate the noise at this link (1.7MB, AVI DivX 5.1).

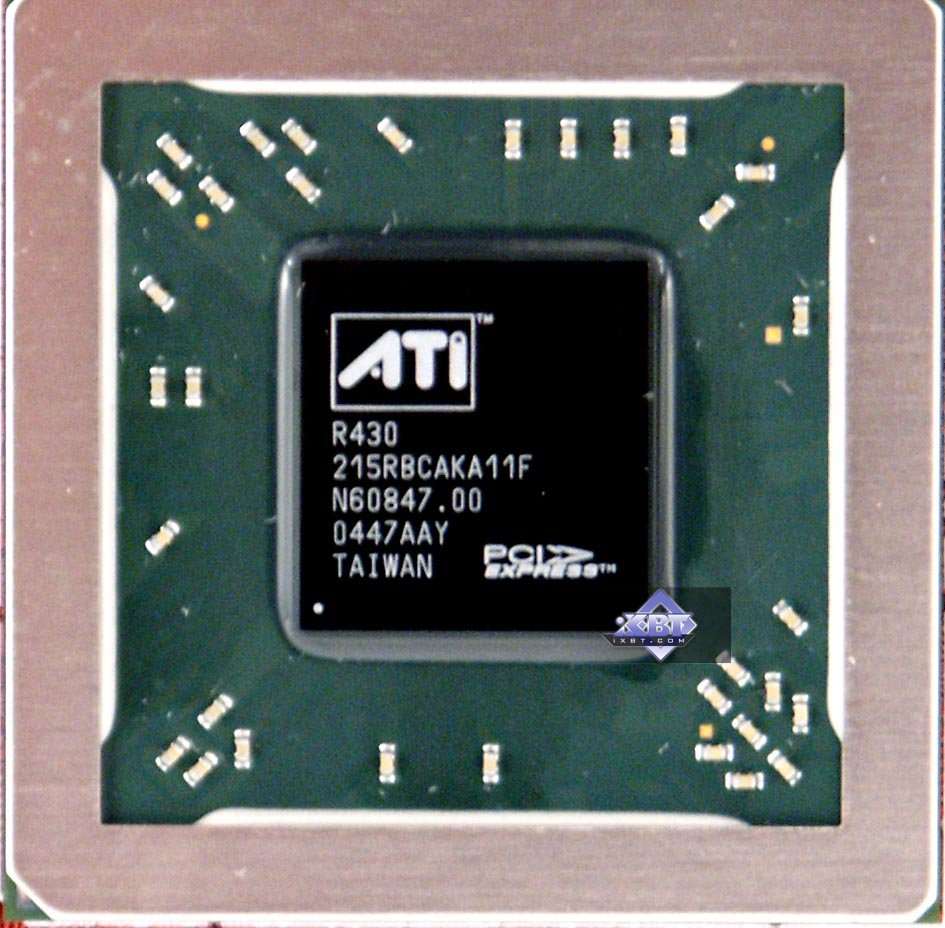

Now what concerns GPU. Everything is clear with the X850XT PE,

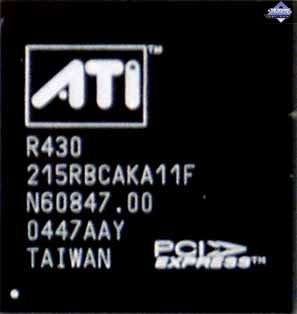

Have a look at the X800 and X800 XL. On the photos the X800 is on the left and the X800 XL is on the right.

The left chip contains 12 active pixel pipelines and the right one – 16. Can you see the visual differences between the chips? I don't see any either. Except for a couple of letters in a designation. All those tracks and burnt dots, which we used to determine the number of pipelines, are gone. Unfortunately, I had no time again to experiment with BIOS (perhaps it can just specify the number of active pipelines).

Bundle

PowerColor RADEON X800 XL 256MB; PowerColor RADEON X800 256MB
The bundles are identical, except for an external power cable that comes shipped only with the X800 XL. The other items: user's guide, CD with drivers, a set of software on the right photo (rich bundle from Cyberlink and the Hitman game), DVI-to-d-Sub, HDTV, VIVO adapters.





PowerColor RADEON X850 XT PE 256MB
The same bundle, plus Pacific Fighters.




Packages.

PowerColor RADEON X800 XL 256MB

A stylish cover with a box of white thick cardboard inside. The entire bundle is arranged into sections, so nothing is slack inside the package. This helps eliminate transportational damages (except for external damages of the package itself, of course :) .




PowerColor RADEON X800 256MB

The same picture, just the inscriptions are different.




PowerColor RADEON X850 XT PE 256MB

Everything is actually the same but the package style is a tad different: it has a window that displays an advertisement screenshot from Pacific Fighters put inside the box. In my opinion it's a silly idea that just makes the package more expensive. It would have been much better to demonstrate the video card itself through that window. The bundle is arranged in a plastic box instead of a cardboard one.






Installation and Drivers

Testbed configurations:

  • Athlon 64 (939Socket) based computer
    • AMD Athlon 3800+ (2400MHz) (L2=512K)
    • ASUS A8N SLI Deluxe motherboard on NVIDIA nForce4 SLI
    • RAM: 1 GB DDR SDRAM 400MHz
    • HDD: WD Caviar SE WD1600JD 160GB SATA

  • Operating system: Windows XP SP2; DirectX 9.0c
  • Monitors: ViewSonic P810 (21") and Mitsubishi Diamond Pro 2070sb (21").
  • ATI drivers 6.512 (CATALYST 5.2); NVIDIA drivers 71.81.

VSync is disabled.

Now what concerns the reason why the 1.6ns memory turned out useless, though this feature is proudly advertised on the boxes. That's because these cards are not much overclocked, despite their memory! Look, the X800 XL managed to operate well only at 435/1040 MHz. OK, the core is overclocked well, but the 1.6ns memory with its 1250 MHz potential managed to operate only at 1040 MHz. Higher frequencies lead to artifacts. The memory voltage is obviously reduced in BIOS. That was initially done for 2.0ns memory. But still, TUL designers could have raised the voltage not to waste the potential of such memory. Below you can see the temperature conditions at overclocking (we used RivaTuner, developed by A.Nikolaychuk AKA Unwinder). As you can see, the temperature rose very high and the cooler actively responded to that.




The X800-based product didn't manage to exceed 1140 MHz with its 1.6ns memory, though a sticker on the box promised that the memory could operate at 1.2 GHz. It's again due to the reduced voltage. And again TUL designers even didn't properly test overclocking, they just put the proud sticker, which is obviously wrong. The question is why use this expensive memory and raise the video card's cost?

Now what concerns the X850XT PE. We managed to overclock this sample to 570/1240 MHz without additional cooling. Here are its temperature readings:




You can see that everything is within the normal range!

Test results: performance comparison

We used the following test applications:

  • Tomb Raider: Angel of Darkness v.49 (Core Design/Eldos Software) – DirectX 9.0, Paris5_4 demo. The tests were conducted with the quality set to maximum, only Depth of Fields PS20 was disabled.

  • Half-Life2 (Valve/Sierra) – DirectX 9.0, demo (ixbt01, ixbt02, ixbt03 The tests were carried out with maximum quality, option -dxlevel 90, presets for video card types are removed from dxsupport.cfg.

  • FarCry 1.3 (Crytek/UbiSoft), DirectX 9.0, multitexturing, 3 demo from Research, Pier, Regulator levels (the game is started with -DEVMODE option), Very High test settings.

  • DOOM III (id Software/Activision) – OpenGL, multitexturing, test settings – High Quality (ANIS8x), demo ixbt1 (33MB!). We have a sample batch file to start the game automatically with increased speed and reduced jerking (precaching) d3auto.rar. (DO NOT BE AFRAID of the black screen after the first menu, that's how it should be! It will last 5-10 seconds and then the demo should start)

  • 3DMark05 (FutureMark) – DirectX 9.0, multitexturing, test settings – trilinear,

  • The Chronicles Of Riddick: Escape From Butcher Bay (Starbreeze/Vivendi) – OpenGL, multitexturing, test settings – maximum texture quality, Shader 2.0, demo 44 and demo ducche.

    I wish to thank Rinat Dosayev (AKA 4uckall) and Alexei Ostrovski (AKA Ducce) for creating a demo for this game. I also want to thank Alexei Berillo AKA Somebody Else for his help



TR:AoD, Paris5_4 DEMO



Test results: TRAOD




In general the X800 is up to the mark; it outscored its competitors, even geForce 6800. The X800 XL demonstrates even better results.

In general the X850XT PE is the leader.



FarCry, Research



Test results: FarCry Research




All the three cards demonstrate excellent results, only the X800 XL was defeated by the 6800GT in modes without AA+AF, but no one is going to play such games on such powerful video cards without these important functions.



FarCry, Regulator



Test results: FarCry Regulator




The same picture. All the three TUL products are the leaders.



FarCry, Pier



Test results: FarCry Pier




I guess that comments are not necessary. The same situation.



Half-Life2: ixbt01 demo



Test results: Half-Life2, ixbt01




In this case the X800 loses its unique leadership, GeForce 6800 is obviously faster in the AA+AF mode. But I repeat that we deal with a 256 MB GDDR3 video card, which is very difficult to position, because there were initially no plans for such devices. So, everything will be up to the price.

The X800 XL is slightly outscored by the GeForce 6800GT in AA+AF modes, but the latter is obviously more expensive.

What concerns the X850XT PE, in general they are on a par in AA+AF modes.



Half-Life2: ixbt02 demo



Test results: Half-Life2, ixbt02




This test has put all TUL products on top again.



Half-Life2: ixbt03 demo



Test results: Half-Life2, ixbt03




The same picture! The advantage percentage of products based on ATI chips has grown large.



DOOM III



Test results: DOOM III




This game, where NVIDIA based products are at advantage (we have already mentioned it), expectedly demonstrated an almost complete defeat of the entire "trinity" by the american company. Well, DOOM III is still a real toughie for the Canadian ATI, the lag is still considerable though it has decreased for the last months.



3DMark05: Game1



Test results: 3DMark05 Game1






3DMark05: Game2



Test results: 3DMark05 Game2






3DMark05: Game3



Test results: 3DMark05 Game3






3DMark05: MARKS



Test results: 3DMark05 MARKS




This test demonstrates almost pure parameters of shader unit operation. Note that the TUL products retain their general leadership in modes without AA+AF, which corroborates the previous test results. But AA+AF activation resulted in performance drop in products based on ATI chips, which is not the case with their competitors. Of course it's very difficult to check whether given functions really operate in 3DMark, but we tried to take screenshots, analyzed them, and decided that AA+AF indeed operated as they should.



Chronicles of Riddick, demo 44



Test results: Chronicles of Riddick, demo 44




I had introduced this test right before the article was published, so let's just do with the 1024x768 resolution for the lack of time. I'll note right away that the SLI mode in the 6600/6800 cards does not work in this game, so the results are similar to single cards.

The X800 has obviously lost this battle. The X800 XL looks a leader only compared to the GeForce 6800, but the X800 XL is more expensive so far.

The X850 XT PE has lost the battle.



Chronicles of Riddick, demo ducche



Test results: Chronicles of Riddick, demo ducche




You can clearly see that the entire series has come to grief. Indeed, products based on NVIDIA chips are faster in many cases in this game. That's a black mark for ATI, because the game is popular and it uses all modern 3D innovations. The break away is not too large though, everything can be improved by fixed drivers as we have already seen many times.



Conclusions

  1. PowerColor RADEON X800 XL 256MB is a good product for its price range. I hope its prices will soon settle down to the level promised in the announcement and the popularity of such cards will plummet in this case. What concerns this sample, its operating stability is up to the mark, its quality is very high, 2D picture at 1600x1200@85Hz is sharp.

  2. PowerColor RADEON X800 256MB is a strange product. It's a cross between what was promised in December, when the X800 was expected at 200 USD, and the desire of manufacturers not to waste efforts to launch special cards (they actually took the X800 XL, cut down its pipelines in the chip, and here you go) – that's what we actually witness now. Why equip such cards with expensive memory? Not clear. As a result the video card fares well in comparison with the 6600GT, but its price is 1.5 times as high. What about comparing it with the GeForce 6800? Yes, the X800 256MB has a head start, the question is how the prices will change. – Much depends on them. Like the previous product, this sample demonstrated excellent quality in all respects, its operating stability is up to the mark.

  3. PowerColor RADEON X850 XT PE 256MB is an image product, the most expensive card from ATI so far. That's right, from ATI – the cards on sale are manufactured on ATI's orders. TUL just provides its stickers and packages with accessories. The latest hit in the gaming world, Chronicles of Riddick, demonstrated that the X850 XT PE was not always a performance leader. The GeForce 6800 Ultra is faster, though it was released earlier. DOOM III numbers have grown :). On the whole, the X850XT PE is indeed a powerful and very fast video card. You shouldn't forget about power consumption, which is lower in such cards than in their competitors. What concerns this sample, its operating stability is up to the mark, 2D quality at 1600x1200@85Hz is excellent.

In our 3Digest you can find more detailed comparisons of various video cards.





According to the test results, PowerColor RADEON X850 XT PE 256MB gets the Excellent Package award (February).








Theoretical materials and reviews of video cards, which concern functional properties of the GPU ATI RADEON X800 (R420)/X850 (R480)/X700 (RV410) and NVIDIA GeForce 6800 (NV40/45)/6600 (NV43)








Andrey Vorobiev (anvakams@ixbt.com)

February 24, 2005
