SONY DRU-500A DVD+-RW/DVD+-R Drive Review






Fortunately, the war of formats between DVD-R/RW and DVD+R/RW has actually finished thanks to the new DVD-Dual format which put an end to the disputes which one is better. This format combines recording capabilities of both DVD-R/RW and DVD+R/RW in one device. All main competitors from the camps of DVD-R/RW and DVD+R/RW promised to back the new standard. Pioneer, Sanyo and Hitachi, and a bit later Ricoh and Philips will produce pickups for the DVD-Dual.

So, the only thing for users to choose will be a media type - the war of formats is over, but the war of discs is probably just starting :). But this seems to be more convenient for a user. It's simpler to buy a disc and record it on the DVD-Dual than to choose between the drives which are much more expensive. The first drive of the new format on the market is one from SONY, DRU-500A, and we will test it today.

SONY DRU-500A




Specification

  • Read formats supported.
    • DVD: DVD-ROM, DVD-Video, DVD-R, DVD-RW, DVD+R, DVD+RW
    • CD: CD-DA, CD-ROM, CD-ROM (XA), CD-Extra, Video CD, Photo CD, CD-Text, Multi-session

  • Write speeds.
    • DVD-R: 4X
    • DVD-RW: 2X
    • DVD+R: 2.4X
    • DVD+RW: 2.4X
    • CD-R: 24X ZCLV
    • CD-RW: 4-10X

  • Read speeds (max).
    • DVD-ROM Video: 2X CAV
    • DVD-ROM: 8X CAV
    • DVD-R, DVD-RW,DVD+R,DVD+RW: 2.4 X CAV
    • CD-ROM/R: 32X CAV
    • CD-RW: 32X CAV
    • CD-Audio (CDDA): 32X CAV

  • Access time (Random Average)
    • DVD: 200 Msec
    • CD: 160 Msec

  • Interface: ATAPI (EIDE) support U-DMA
  • Data buffer: 8 Mbytes
  • Installation: horizontal and vertical.
  • Dimensions (W x H x D): 146 x 41.5 x 192 mm
  • Weight: 1.1 kg.

The big nice Retail box contains the drive, an IDE cable, one Sony's DVD+RW, screws for the drive mounting, two CDs with software and e-version of the manual and several brochures with useful information.

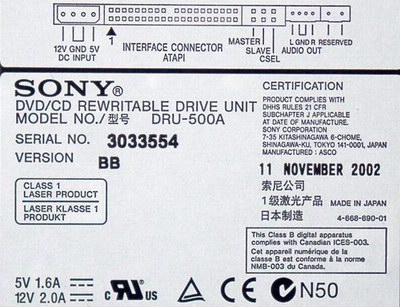

The front panel is not conventional; when the tray opens, it looks as if the upper half moves toward you. There is only the Open/Eject button; the controls for direct listening to Audio CD are not here. The button is deeply recessed which prevents accidental pressing, but on the other hand, it's not easy to find it by touch and press.

The software suite coming with the drive is impressive.

Sonic MyDVD 4.0 is a popular with novices packet of programs for making professional DVD and Video CD of nonprofessional movies.

VERITAS RecordNow is a program for copying DVD and CD and also for creation of DVDs; it's a good choice for a beginner.

VERITAS Simple Backup is a full-featured program for making backup copies and data protection, also supporting background copying and data recovery after failing.

Arcsoft ShowBiz - video editing program with tools for making unsophisticated home video of video records; supports import/export to the MyDVD software.

MusicMatch Jukebox 7.1 is a well-known program for listening to musical compositions and creation of your own MP3 albums.

CyberLink PowerDVD 4.0 XP is one of the most popular software DVD-Video players which, apart from DVD-Video, plays Video CD.




The drive was released in November last year and first it came with the firmware version 1.0d, now it's replaced with 1.0f. The new version supports recording of DVD+R at 4X and has the read speed for DVD lifted up, though it's not specified up to what level.

The new version has some negative effect as well. Some of the users complain that the drive does not write Princo 2x discs at 2x and allows only for 1x.

Reportedly, there are also Power Calibration Errors when any discs from Princo are used.

The installation of the drive is simple, like that of any CD-ROM drive. It requires no special drivers. And I used the NeroBurning Rom ver 5.5.10 which has successfully detected this device.




The drive supports the Power Burn technology, the buffer underrun error prevention technology from SONY. Besides, it also supports the Lossless Linking technology - a version for buffer protection in case of DVD-R and DVD+R media. The recording process can be halted and then resumed from the same place, but without this technology there can be some free space after the interruption which might cause problems for home DVD players and some computer DVD-ROM drives.

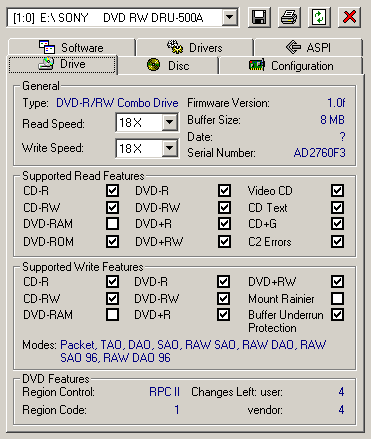

The formats and media types supported can be found out with the Nero Infotool.




EAC Configuration Wizard results.

Traditionally, let's see how this drive is detected by the most popular program for audio track extraction.




Well, the drive has everything for quality operation with audio tracks, let's see how it uses them in practice.

According to the preliminary results and the specs, the drive promises high performance and ease of use. Now we are moving to the tests.

Test results

DVD recording

Looking though leaflets supplied with the drive I found two bright red ones which made me test operation with DVD-R first of all.

It was written there that Verbatim warns that early 2x discs from Verbatim can cause a record error on this drive. The following types are under suspicion: Reorder number 43136 and 43166.

I felt really sorry because Verbatim's media are one of the best. Besides, Verbatim often receives OEM orders from third parties, and it would be quite unpleasant to face such a problem with an expensive disc. So, we tested for recording the DVD-R discs from Verbatim that we had and got the following results:

All the drives produced by Verbatim until Autumn 2002 which had the following Lead-IN

00 42 00 00 01 40 C1 FD 9E D8 50 00 02 87 0D 13  .B...@....P.....
88 99 80 00 03 4D 43 43 20 30 30 00 04 52 47 32  .....MCC 00..RG2
30 30 20 00 05 00 00 00 00 00 01 00 00 00 00 00  00 .............
have the write errors when used on the SONY DRU-500A drive. If you look into our DVD-R media catalog, you will see that apart from discs under the Verbatim trade mark there are some TDK's samples. The discs produced by Verbatim with the following Lead-IN
00 6A 00 00 01 40 C1 FD 9E D8 50 00 02 87 0D 13  .J...@....P.....
88 99 80 00 03 4D 43 43 20 30 30 00 04 52 47 32  .....MCC 00..RG2
30 30 20 00 05 00 00 00 00 00 01 00 00 00 00 00  00 .............
work nicely on this drive at 2x. I also found a similar warning from Pioneer which notifies about possible write errors in case of DVD-R discs of the DVS-R47A/EN type.

After that I actually tested compatibility with the DVD-R media that I had. The results are not so sad.

The cheap noname discs which were detected as clones of TDK and which were earlier successfully recorded at 2x on the popular DVD-R drives Pioneer DVR-104 and Toshiba SD-R5002 failed on the SONY DRU-500A. Now they can be recorded only at 1x, as well as the old TDK's discs certified for 2x recording. Well, everything that has the following Lead-In, will be recorded at 1x.

00 42 00 00 01 40 C1 FD 9E D8 50 00 02 7A 0C 15  .B...@....P..Z..
77 78 90 00 03 54 44 4B 47 30 31 00 04 30 30 30  WX...TDKG01..000
30 64 39 00 05 CC C0 00 00 00 01 00 00 00 00 00  0D9.............
The other discs with the TDK identifiers in Lead-In can still be recorded at 2x, in particular, some TDK clones such as eProFormance. They are less expensive than TDK's models and have good quality. The Lead-In is as follows.
00 42 00 00 01 40 C1 FD 9E D8 50 00 02 8A 0D 14  .B...@....P.....
88 88 80 00 03 54 44 4B 47 30 32 00 04 30 30 30  .....TDKG02..000
30 30 30 00 05 CC C0 00 00 00 00 00 00 00 00 00  000.............
I also recorded two Princo's discs. The procedure was flawless, though only at 1x. Although it's not statistics, it contradicts to those users who say that this drive doesn't work at all with Princo's media.

So, the verdict is that users should choose DVD-R media very carefully.

Fortunately, there were no problems with the DVD-RW media.

The discs of the DVD+R/RW format were recorded flawlessly as well. The test recording was accomplished on the eProFormance discs for the DVD-R format and on the Verbatim LiveIt for all the rest.

DVD-R recording

Drive write time at 1x, min. write time at 2x, min.
SONY DRU-500A 60:18 29:14
TOSHIBA SD-R5002 56:18 28:30


DVD-RW recording
Drive write time at 1x, min.
SONY DRU-500A 58:14
TOSHIBA SD-R5002 56:28


DVD+R recording
Drive write time at 2.4x, min.
SONY DRU-500A 21:54
RICOH MP5120A 22:10


DVD+RW recording
Drive write time at 2.4x, min.
SONY DRU-500A 22:46
RICOH MP5120A 22:16

Here you can find the data of control reading for all recorded DVD discs on two reference DVD-ROM drives Toshiba SD-M1712 and Pioneer DVD-117LJ. As you can see, reading of all the discs is stable and error-free.

Unfortunately, I didn't have a chance to test the DVD+R and DVD-R media at 4x as the discs certified for such speed are lacking on our local market. Also, I couldn't test recording of DVD-RW discs at 2x.

Well, this drive reflects the struggle of the current formats, or rather, their parity. The DVD-RW media have come very close to DVD+RW in the write speed; no sooner had the DVD-R made a step forward thanks to the write speed of 4x, than the new firmware version from Sony provided the DVD+R with 4x support.

Main reading parameters of DVD media

Quality of operation with DVD discs

Nero DVD Speed

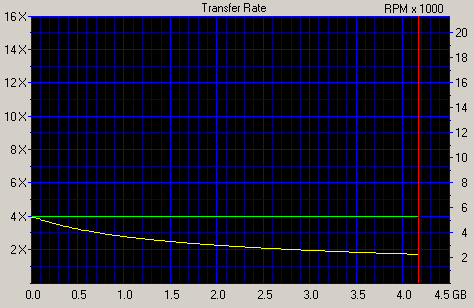

Testing with a one-layer DVD


  SONY DRU-500A
Average Speed 3.99x
Start Speed 3.90
End Speed 3.99x
Random Seek 176 ms
1/3 Seek 198 ms
Full Seek 258 ms
Reading type CAV
CPU usage 1x 1%
SpinUp Time 2.99 sec
SpinDown Time 3.49 sec
Disc Recognition Time 6.46 sec

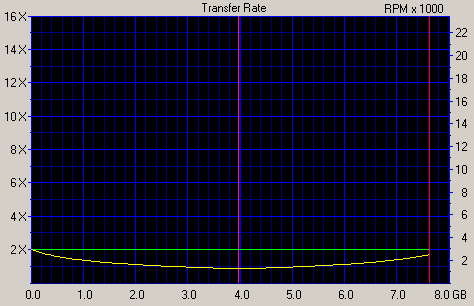

Testing with a two-layer DVD



  SONY DRU-500A
Average Speed 2.00x
Start Speed 1.99x
End Speed 2.00x
Random Seek 190 ms
1/3 Seek 263 ms
Full Seek 305 ms
Reading type CAV
CPU usage 1x 1%
SpinUp Time 3.05 sec
SpinDown Time 2.55 sec
Layer Change Time 85 ms
Disc Recognition Time 19.06 sec

Reading of recordable DVD

DVD+R reading


DVD+RW reading


DVD-R reading

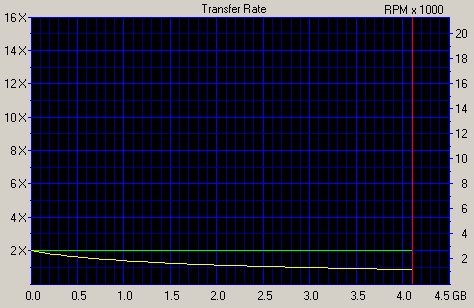

DVD-RW reading


There is nothing unexpected, except a low speed of operation with the one-layer DVD-ROM (Data), - this problem can be caused by fact the the drive treats differently the discs it doesn't like. In the DVD read speed the SONY DRU-500A is very similar to the PIONEER DVR-104 which doesn't hurry at all when reading discs of this type.

Standard tests for operation with CDs

CD recording time

As the SONY DRU-500A drive switches on the Z-CLV mode for recording discs at the maximum speed of 24X, the tests were carried out with the Nero CD Speed program. It's able to give the graphics results relative to the current write speed; so, we will find out how the Z-CLV mode affects the gradual write speed change of this drive.

Two CD-R types were used for recording:

CD-R SKC (cyanine) and CD-R Philips Silver Premium (phthalocyanine).

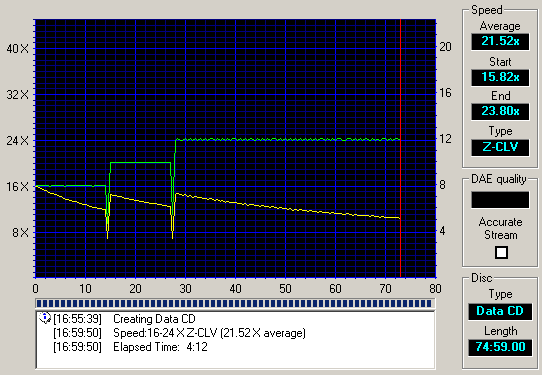

CD-R recording, cyanine




CD-R recording, phthalocyanine



Well, the drive has no preferences regarding the surface types.

But there can be some problems in recording CD-R: if the drive doesn't fancy a disc, it will record it at a lower speed. It was found out when we tried to record discs from CMC Magnetics and Prodisk.

CD-R recording, phthalocyanine, Prodisk 32X.



As you can see, the drive fixed the maximum write speed for the disc and stuck to it.

BLER factor of the recorded CD-R

The tests were carried out with the device described here

BLER factor for the SONY DRU-500A drive.
SKC  22-31
Philips Silver Premium 8-11
Prodisk 32X 36-48

The recording quality of this drive is good enough. As you can see, the CD-R disc from Prodisk, which the drive didn't like, has a much higher level of errors compared to the other two CD-Rs.

Overburn

The SONY DRU-500A doesn't support Overburn. The attempt to test it with the NERO CD Speed wasn't successful.

Time of CD-RW full formatting in UDF with directCD 5.02b.

CD-RW recording in UDF, 650 Mb test packet in 6500 files.

SONY DRU-500A Formatting time (min.) Write time (min.)
Philips CD-RW74 4x 28:45 29:54
Verbatim DataLifePlus 10x 10:32 8:24

Testing ability of the drive to work with 80mm CDs by the example of a CD-RW disc.

Formatting and recording of the 80mm CD-RW disc in UDF. 4x write speed.



Formatting time (min.) Write time (min.)
11:04 8:18

The drive works nicely with the 80mm discs. The only problem was that the drive agreed to record the 10x 80mm disc from Dysan only at 4x.

Testing main read parameters of CD discs

CDWinBench 99

  • CDWinMark99 - 1550
  • CD-ROM Transfer Rate
    • Inside - 2370 KB/s
    • Outside - 4650 KB/s

  • CPU utilization - 0.89%
  • CD-ROM Access Time - 127 ms

NERO CD Speed

Tests with the standard CD



  SONY DRU-500A
Average Speed 24.38x
Start Speed 14.22x
End Speed 7.15x
Random Seek 166 ms
1/3 Seek 147 ms
Full Seek 225 ms
Reading type CAV
CPU usage 1x 0%
Accurate stream Yes
DAE quality Score 10
SpinUp Time 2.95
SpinDown Time 2.83
Disc Recognition Time 9.94 sec

CD-ROM Drive Analyzer

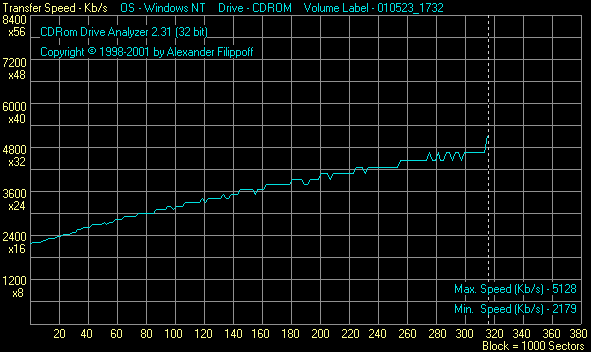

CD-R reading


CD-RW reading

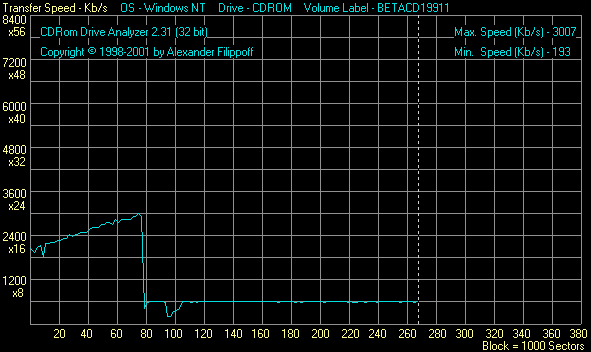

Reading of low-quality CD


As you can see, in case of the low-quality disc the drive reduced the speed immediately when the errors appeared and didn't make any attempts to lift it later. Such approach can be very unpleasant for a user if all such discs will be read at 4x.

Direct copying of information from 780 MB CD-R to HDD

The drive couldn't read the 780MB disc, - there were errors at the end and the drive displayed the warning; the next several attempts were useless either.

CD audio track extraction

CDDAE

  Licensed disc  Pirated disc
Average extraction speed 21.4x 20.3x
Total errors 0.00% 0.00%



EAC (highest quality mode)

  Licensed disc  Pirated disc
Average extraction speed 6.1x 5.8x
Total errors 0.00% 0.00%

Advanced DAE Quality(Nero CD-Speed)

SONY DRU-500A
Offset 360 bytes (90 samples)
Sequential Read Test Average Speed: 22.80 X
Data Errors: 0
Sync Errors: 0
Harmonica Read Test Average Access Time: 176 ms
Data Errors: 0
Sync Errors: 0

Total Data Errors: 0
Total Sync Errors: 0
Quality Score: 100

On The Fly Copying Simulation Copying at 1 X
OK
Copying at 2 X
OK
Copying at 4 X
OK
Copying at 6 X
OK
Copying at 8 X
OK
Copying at 10 X
OK
Copying at 12 X
OK
Copying at 16 X
too slow
CD Text Drive is capable of reading CD Text information
Subchannel Data Test 1
Track (01): 01
Relative position (01:05.00): 01:05.00
Absolute position (01:07.00): 01:07.00
Index (5): 13 -> incorrect!


Test 2
Track (17): 17
Relative position (01:33.00): 01:33.00
Absolute position (33:35.00): 33:35.00
Index (1): 1


Test 3
Track (36): 36
Relative position (00:00.00): 00:00.00
Absolute position (70:02.00): 70:02.00
Index (1): 1

Leadin Drive cannot read data from the Leadin
Leadout Drive cannot read data from the Leadout

The drive perfectly captures audio tracks. It can be recommended for those who make their own digital audio albums.

The detailed information on the tested parameters is given in the help file to the Nero CD Speed test program.

DVD-Video playback with Cyberlink PowerDVD 4.0

The DVD video was played without any problems. No artifacts were noticed.

We also estimated quality of playback of movies recorded on DVD-R/RW+R/RW discs on the home DVD player BBK931. The playback was nice.

Physical characteristics of the drives.

Noise

drive Tray CD-Seek CD general DVD-Seek DVD general
SONY DRU-500A 6/10 7/10 7/10 8/10 8/10

On the whole, the drive works quietly except some cases of operation with badly balanced CDs and operation at the maximum speed.

Thermal conditions

drive T inside the case, °C T of the upper surface, °C T of the lower surface, °C
SONY DRU-500A 36°C 46°C 47°C

The thermal conditions are ok. But I don't recommend to place any devices close to it to avoid their overheating.

Vibration in case of badly balanced CDs

In operation with the unbalanced disc the drive vibrated, but it didn't prevent it from flawless reading of the disc, though the read speed wasn't high - 4x.

Possibility to make it multizone (RPC-1)

According to www.firmware-flash.com/ it's still impossible to change the status of the drive from RPC-2 (region locked) to RPC-1 (region free).

Conclusion

At last, the two competing formats are combined in one device developed by SONY. The new format DVD-Dual has confidently stepped out on the market. The SONY DRU-500A is a powerful tool for DVD recording which supports all latest innovations of both standards. Certainly, there are some downsides: it treats discs differently and has a low read speed for recordable DVD. Also note that it will be a bit dearer than one-format drives, but it won't be too much for a possibility to record all possible DVD types on one drive. All in all, the SONY DRU-500A drive is a worthy solution of the new DVD-Dual format.



Roman Shelepov (srl@ixbt.com)


Write a comment below. No registration needed!


Article navigation:



blog comments powered by Disqus

  Most Popular Reviews More    RSS

AMD Phenom II X4 955, Phenom II X4 960T, Phenom II X6 1075T, and Intel Pentium G2120, Core i3-3220, Core i5-3330 Processors

Comparing old, cheap solutions from AMD with new, budget offerings from Intel.
February 1, 2013 · Processor Roundups

Inno3D GeForce GTX 670 iChill, Inno3D GeForce GTX 660 Ti Graphics Cards

A couple of mid-range adapters with original cooling systems.
January 30, 2013 · Video cards: NVIDIA GPUs

Creative Sound Blaster X-Fi Surround 5.1

An external X-Fi solution in tests.
September 9, 2008 · Sound Cards

AMD FX-8350 Processor

The first worthwhile Piledriver CPU.
September 11, 2012 · Processors: AMD

Consumed Power, Energy Consumption: Ivy Bridge vs. Sandy Bridge

Trying out the new method.
September 18, 2012 · Processors: Intel
  Latest Reviews More    RSS

i3DSpeed, September 2013

Retested all graphics cards with the new drivers.
Oct 18, 2013 · 3Digests

i3DSpeed, August 2013

Added new benchmarks: BioShock Infinite and Metro: Last Light.
Sep 06, 2013 · 3Digests

i3DSpeed, July 2013

Added the test results of NVIDIA GeForce GTX 760 and AMD Radeon HD 7730.
Aug 05, 2013 · 3Digests

Gainward GeForce GTX 650 Ti BOOST 2GB Golden Sample Graphics Card

An excellent hybrid of GeForce GTX 650 Ti and GeForce GTX 660.
Jun 24, 2013 · Video cards: NVIDIA GPUs

i3DSpeed, May 2013

Added the test results of NVIDIA GeForce GTX 770/780.
Jun 03, 2013 · 3Digests
  Latest News More    RSS

Platform  ·  Video  ·  Multimedia  ·  Mobile  ·  Other  ||  About us & Privacy policy  ·  Twitter  ·  Facebook


Copyright © Byrds Research & Publishing, Ltd., 1997–2011. All rights reserved.
