Samsung Q20: a stylish ultra-portable Centrino-based model

May 3, 2004







Q20 is an ultra-portable notebook positioned by Samsung as "the thinnest and the lightest of all 12.1" NotePCs". The company had to resort to a number of technical tricks to achieve such dimensions: the model has an Intel Pentium M CPU with a lower supply voltage, which ensures lower energy consumption and heat generation. Here is a table containing more technical details.

Samsung Q20 specification
(taken from www.samsung.com)

CPU Intel® Pentium® M LV 1.1-1.2 GHz (1.2 GHz on the model we tested)
Chipset Intel i855GM
RAM up to 1 GB 266 MHz DDR SDRAM (1-slot SODIMM), 256 MB on the tested model
Display 12.1" TFT XGA with a resolution of 1024x768 pixels 262,144 colours (18 bit)
Video system integrated
Maximal resolution for external monitor 2048 x 1536 (60Hz), 32bit
Audio system
  • 16 bit SoundBlaster compatible (MPC level-2)
  • AC-97, CS 4202 Codec
  • embedded dual stereo speakers and microphone

HDD 40, 60, 80 GB supporting UltraDMA-33/66/100 (Toshiba MK4021GAS 40 GB on the tested model)
ODD
  • CD / DVD / CD-RW / Combo, GEMINI DOCK type
  • CD / DVD / CD-RW / Combo with the IEEE 1394 interface (a combo drive on the tested model

I/O interface
  • PC Card slot supporting CardBus —1 (type II)
  • connector for external monitor —1
  • docking connector(GEMINI DOCK Support) —1
  • Head-Out —1
  • Mic-In —1
  • connector for network adapter —1
  • connector for RJ-11 modem —1
  • RJ-45 network connector —1
  • IR-port —1 (Fast IR, up to 4 MBps)
  • USB 2.0 ports —2
  • Secure Digital(SD)/Memory Stick(MS) slot — 1

Network tools
  • integrated network controller 10/100 Ethernet UTP Intel Kinnereth-R
  • modem 56Kbps / V.90 Agere SCORPIO AC'97
  • wireless network adapter 802.11b (Intel Centrino Technology) Intel Pro/Wireless 2100, integrated Dual Band 2 antenna

Dimensions and weight
  • 273x234.3x19.3(min)-23.9(max) mm
  • 1.3 Kg

Power management
  • 4cell Li-Ion battery (3.8Ah X 7.4V): up to 3 hours (with power management enabled) — on the tested model
  • Long Life Battery — 8cell 7.84Ah X 7.4V — up to 8 hours without recharging (with power management enabled)
  • 42 W adapter 100 ~ 240V AC 50~60Hz

As we see, Samsung Q20 is really 1 mm thinner and 50 g lighter than ASUS S5200N with a "conventional" Intel Pentium M CPU, although it is 20 g heavier than ASUS S5200NE with a Pentium M ULV CPU. But to be fair we must say that Samsung Q20 was released much earlier than the latter model. The set of interface ports is more or less standard for Centrino-based notebooks considering their dimensions and weight.

Complete package:

  • Notebook
  • Stylish PSU with cord
  • Telephone cord
  • Combo drive with the IEEE 1394 interface
  • User manual
  • Norton AntiVirus
  • CD restoring OS
  • CD restoring software
  • Nero Burning ROM
  • Power DVD
  • Ulead Video Studio
  • Photo Explorer

First impression





The model design reminds one of Samsung X10, so we can say that the company is forming its individual notebook style. The notebook is bright and elegant, it will look equally good as an interior article and in the student's hands. Although it is too bright, I think, for an austere office.




The front end has:

  • The pressable cover lock (though you can still open the notebook with one hand)
  • LEDs (power on, activity of HDD, wireless devices, and Locks)






The back end has nothing except the battery (almost as long as the end itself) and a Kensington lock. Such approach enables to install easily a battery of a higher capacity (and naturally, of a larger size).




All connectors are placed on the notebook's side surfaces.

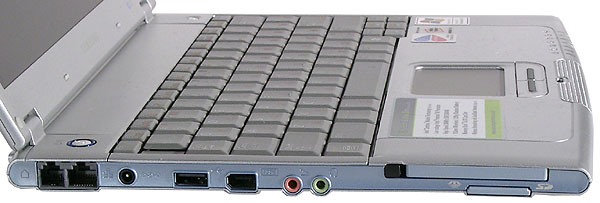

The left side has (from left to right):

  • Phone line connector
  • LAN connector
  • Power source connector
  • USB port
  • IEEE 1394 connector
  • Mic-In
  • Audio-Out
  • PC Card socket
  • Socket for SD/MC cards (under it)

The notebook is equipped with a desktop variant of the IEEE 1394 connector, which includes power contacts. Due to this solution, an external device for ODDs or an external HDD can be used with no additional adapter — which is an essential factor considering the size of the notebook.

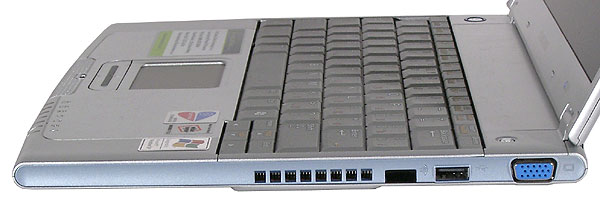

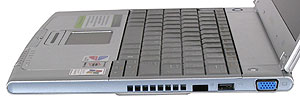

The right side has (from left to right):

  • Grill for the cooling system
  • IR-port
  • USB port
  • Output for external monitor

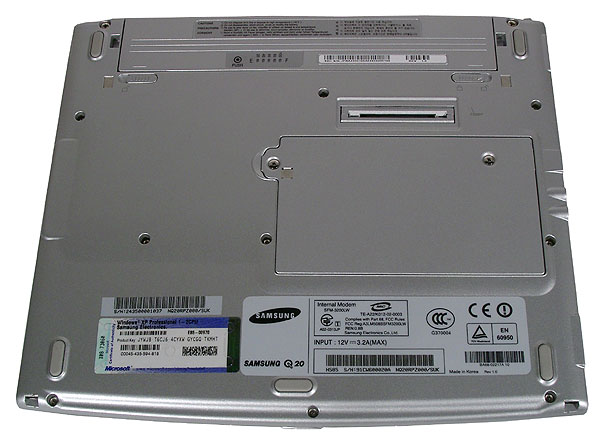

The lower side houses an extension slot, a bay for memory and a mini PCI module, and a battery with a charge indicator (to check the charge level press on the marked place).

If we take for granted the fact that the back side is occupied by the battery, then there are no claims concerning the way the connectors are arranged. Thicker cables will be plugged as close to the back side as possible and thus, won't hamper the user to work.

Ergonomics and convenience

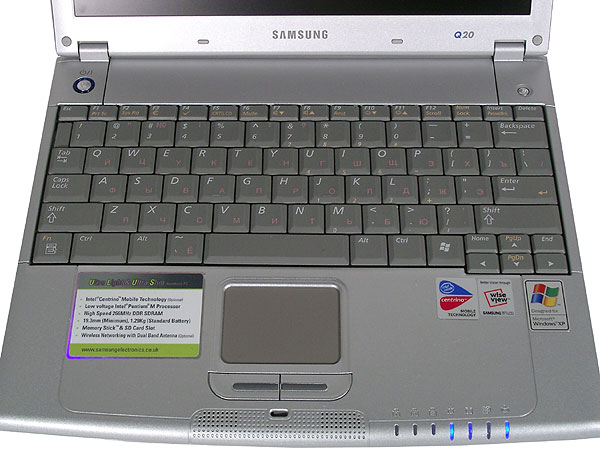

The notebook is quite recognisable with the open cover. The grid covering the speakers in the lower part is becoming Samsung's earmark. Although the speakers are located so close to each other that Q20 sound can't be called stereo. The keyboard differs from average full-size ones by the absence of the right row. This caused a certain rearrangement of the cursor-controlling unit. The Home and End keys are located over the Right and Left, in the places that are usualy vacant in full-size keyboards, therefore, unintended touches can occur. PgUp and PgDn are integrated into the Up and Down keys, respectively, and can be activated when the Fn key is pressed. It takes some time to get used to such arrangement, but once you have, you'll find it very convenient for work with texts. Unfortunately, Ins and Del are situated too far in the upper right corner, but it is typical of most notebooks, as well as the Fn in the place of the left Ctrl of desktop keyboards. The keyboard also has another interesting feature: NumLock is charged with no additional functions, and BIOS enables switching of the numeric keys by pressing NumLock without Fn. Although the practical value of this function seems somewhat dubious.

The touchpad is standard and has no unexpected features. The keys are covered with rubber material that makes them jut out and they seemed very handy for me personally.

The surface is not laden with buttons, there are only two of them: the on/off button surrounded by a blue circle (which, in my opinion, would look much better glowing when the power is on); the other one performs operations specified in BIOS. It can be set to quickly access the browser or to turn off the wireless network adapter. The combination Fn+F4 is used for a fast access to an application specified by the user (calculator is set by default).

The LEDs are lighted with blue, except the charge mode that has an orange LED. They look lovely but they are often shielded by the user's right hand at work.

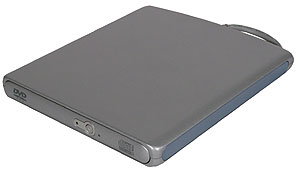

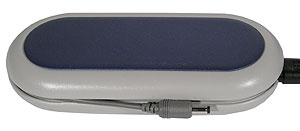

There have been no problems with the external combo drive. And I can't but praise the traditional Samsung's PSU which is stylish and also very convenient in transportations.




The main heat-generating element of the model is the HDD, and consequently, the part of the case under the right palm becomes warmer. Also noteworthy, there are no air vents on the lower surface. The notebook works quietly, which is no surprise considering its platform.

In general, Samsung Q20 is a bright and stylish notebook. It is convenient to work with, considering its dimensions. It can't be used as a multimedia PC as it has no Video-Out and no S/PDIF output; although the supplied combo drive that is powered directly by the notebook widens the latter's functionality as a working tool.

Guarantee and service

The guarantee lasts 3 years (1 year of a full guarantee and free repairs within the next 2 years). The service centres are listed on the Russian Samsung site where it is specially mentioned which of them deal with notebooks.

Site

The Russian Samsung site deserves a separate discussion. The idea itself was good: the site contains the addresses of stores selling Samsung products, although the search system is not very convenient: for instance, in Moscow search it shows stores that are the closest to the selected metro station, and not the stores that sell notebooks. The site also provides information about Samsung models (including serial numbers that have service support in Russia), their specs and drivers. But as soon as we reach specifications, problems appear. Thus, Q20 specs include S/PDIF and S-Video outputs and a touchpad scroller. Besides, there are discrepancies from the global site concerning the maximal memory size and the maximal resolution for the external monitor. Drivers for different models are heaped into one list, but there are no drivers for Q20. While the global site, besides the specs for the model, has both the drivers and even a user guide in Russian. In other words, the Russian representation has a lot of room for improvement.

Tests

Autonomous mode. Remember that we tested a model with a "standard" battery.

BAPCo/MadOnion MobileMark 2002 Productivity workload (Performance rating) 108
BAPCo/MadOnion MobileMark 2002 Productivity workload (Average response time) 1,72
BAPCo/MadOnion MobileMark 2002 Productivity workload (Battery life rating) 170
BAPCo/MadOnion MobileMark 2002 Reader workload (Battery life rating) 191

As we see, the declared run-down time is all but reached in practice.

BAPCo/MadOnion SysMark 2002 102
BAPCo/MadOnion SysMark 2002 Office Productivity 76
BAPCo/MadOnion SysMark 2002 Internet Content Creation 137


MadOnion 3DMark 2001
(32 bit color, 32 bit Texture Format, 24 bit Z-buffer depth, Frame Buffer — Double buffering, Software T&L), 3DMark Result
640x480 800x600 1024x768
2701 2249 1682

Results and conclusions

No doubt, Q20 is a stylish model, which is becoming an earmark of Samsung notebooks. Accoding to the company's officials, Samsung is planning to occupy the niche of image notebooks in Russia, taking advantage of a weak Sony promotion. Noteworthy, the tested configuration of the model is not shipped to Russia. According to the Russian Samsung site, only four configurations are available in this country. Average current prices (number of supplies) for them in Moscow retail stores are shown in the table below.





Nikolai Dorofeev (niko@ixbt.com)

03.05.2004
