OfficeConnect Secure Router and OfficeConnect VPN Firewall - Screening Router and Firewall from 3Com

August 11, 2004







Contents

  1. Overview
  2. 3CR860 and 3CR870 circuitry
  3. Comparative table of device specifications
  4. Excursus to settings
  5. Performance tests
  6. Performance of the LAN-WAN segment, NetIQ Chariot
  7. Performance of the LAN-WAN segment, NetPIPE
  8. IPSec performance, DES encryption
  9. IPSec performance, 3DES encryption
  10. IPSec performance, tunnel scaling, 3DES encryption, two tunnels
  11. IPSec performance, tunnel scaling, 3DES encryption, three tunnels
  12. IPSec performance, AES-128 encryption
  13. Traffic shaping tests
  14. Limiting the entire band of outgoing traffic
  15. Limiting the entire band of incoming traffic
  16. Limiting the outgoing traffic by ports (creating queue groups)
  17. Limiting the incoming traffic by ports (creating queue groups)
  18. 3CR860 and 3CR870 security tests
  19. Availability
  20. Conclusions




The 3Com company has launched new network security products:

  • Screening router
    3Com OfficeConnect Secure Router (3CR860-95);
  • Firewall
    3Com OfficeConnect VPN Firewall (3CR870-95)

OfficeConnect Secure Router is positioned by the company as a device providing protected, high-speed Internet access for multiple users in home and small or branch office environments. The router has an embedded VPN server, which allows to establish up to two IPSec VPN tunnels (tunneling modes supported: server-server and server-host). It also supports termination for up to L2TP over IPSec or PPTP tunnels. The firewall contains special algorithms, which allow to detect (by patterns) and block hacker and DoS attacks. This device can filter traffic using specified or preset rules based on IP addresses or content/url. Besides, the device has a logging service for a wide range of events.

OfficeConnect VPN Firewall is an "elder brother" of the previous device. The number of VPN tunnels supported is extended to 50, it has a new traffic shaping function - that is controlling the data transfer speed on the whole and by the specified set of protocols.

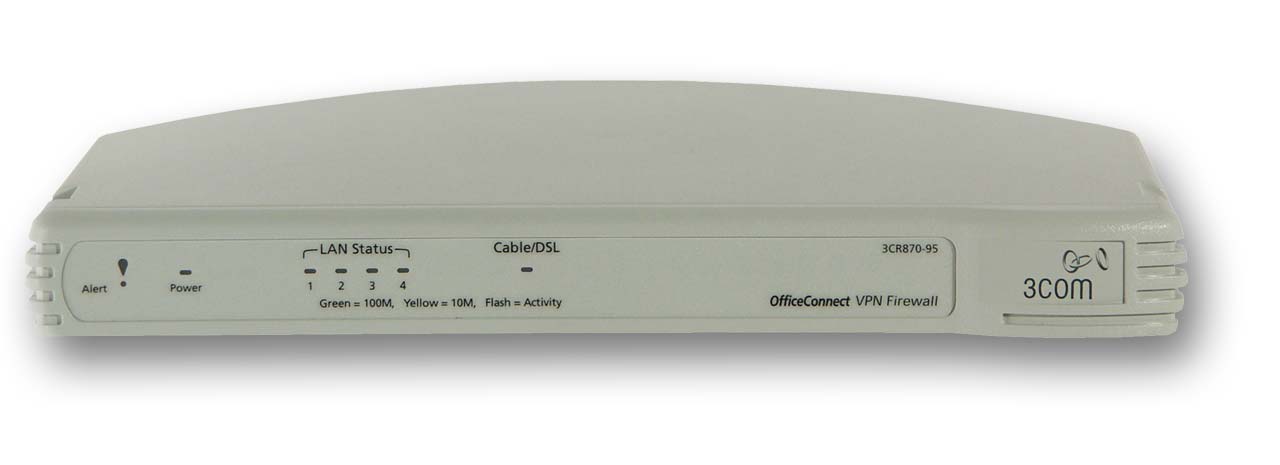

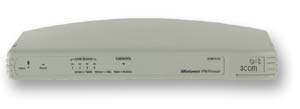

Both devices have the same case, and at the first glance their only difference is in the label on the right of the front panel. Apart from this label, the panel contains 4 LEDs for LAN-ports indicating with color the connection speed and with blinking - data transfer. Cable/DSL LED is similar to the previous four LEDs, but it indicates the WAN port of the device. There remain obvious LEDs - Power and Alert. The latter blinks when the device starts up and in case of malfunctions (software and hardware). Besides it lights up when an attack is detected (at the same time the intruder is blocked by the built-in firewall).








All the ports (four LAN and one WAN) are located on the back panel. The power connector is also located there. On the bottom side of the device you can see brackets to mount the device on vertical surfaces. To put the device on a horizontal surface, it will be sufficient to attach four rubber feet (included into the bundle) to the bottom of the device.

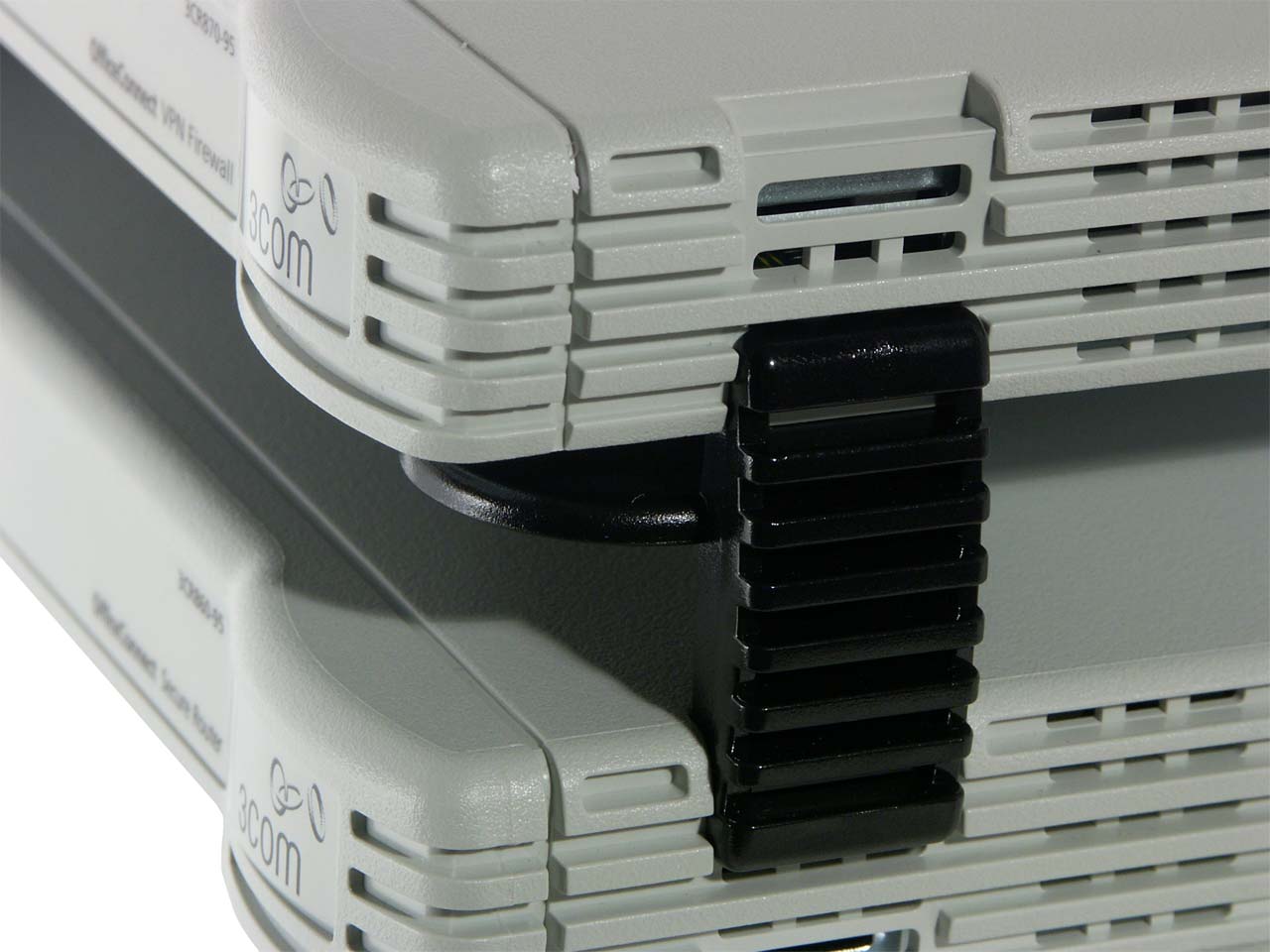

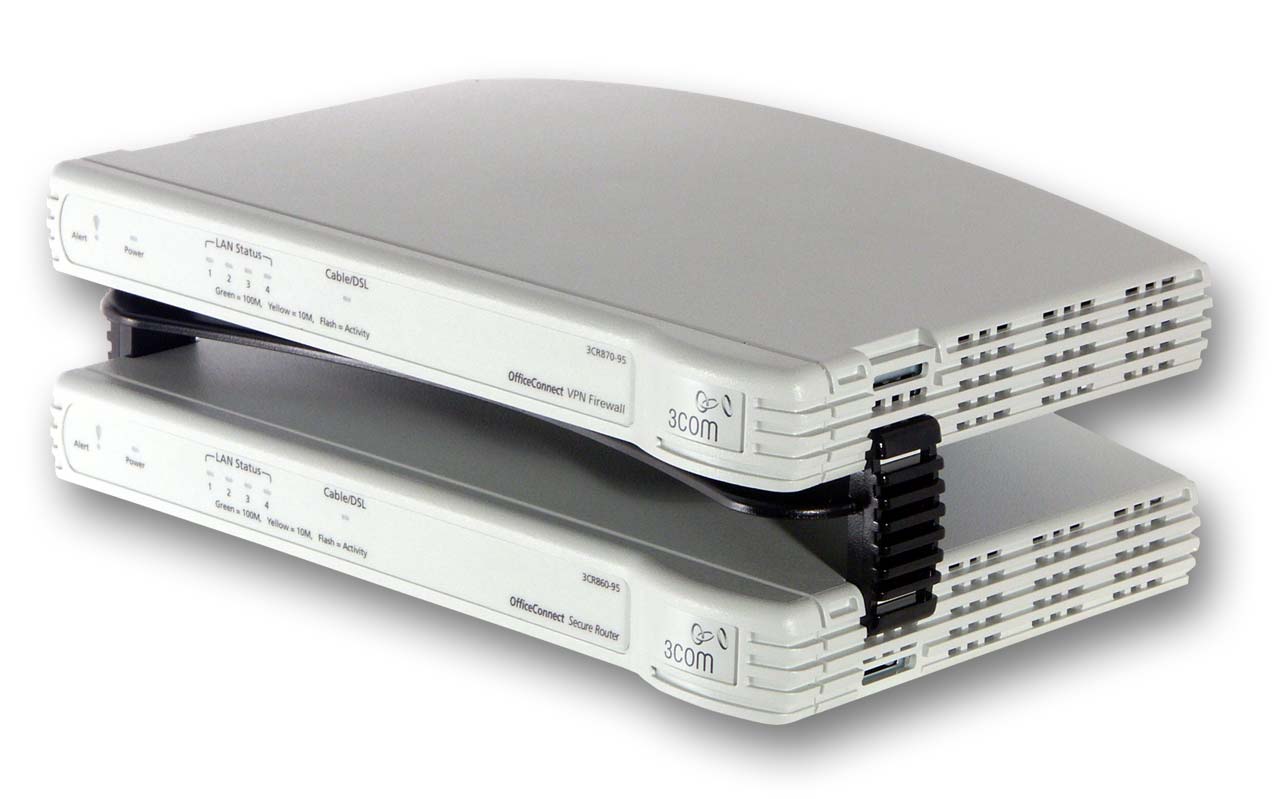

You can also pile the devices in a "stack" using the plastic clip shipping with the device. Note that this stack can grow upwards and include arbitrary number of the devices.






The bundle of the both routers contains (apart from the device and its power adapter):

  • Install and quick setup guide (in English)
  • CD ROM containing the complete documentation, the Gateway Discovery Program for quick search of the device in the network
  • Four plastic feet to put the case horizontally
  • Ethernet patch cord

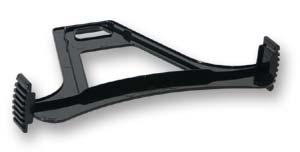

  • Plastic clip to assemble several devices in a stack



3CR860 and 3CR870 circuitry... or the "find ten differences" puzzle








- Do you see a gopher?
- No.
- I don't see it either... But it's out there!

In other words, I didn't manage to find any differences. 3CR860-95 photo is on the left, on the right - 3CR870-95. These devices most likely differ only by their firmware. A label on the bottom of the PCB "OfficeConnect Cable Secure/DSL Gateway" reminded me of the similar device reviewed in this article. The circuitry has not change much since then. At least the microcontroller and the chip of the embedded Broadcom switch remained the same.

There are still no detailed specifications on the main processor of the device - BCM6350 microcontroller and BCM5325 controller operating as a 100Mbit Ethernet switch (properly speaking, we didn't manage to find the specifications at all), so I don't see the point in repeating the information already provided in the article 3Com OfficeConnect Cable/DSL Secure Gateway.

Another big chip on the PCB is Pulse H1184, which (probably) serves as AUTO MDI/MDI-X (cable type detection) and also as a galvanic isolation to protect the embedded switch controller from high voltages. Two HY57V641620HGT-H chips are 64 Mbit (4 Banks x 1M x 16Bit) SDRAM by Hynix. Their nominal operation frequency is 133MHz.

The PCB also contains two Flash-memory chips 8MB each (presumably). Why two? Perhaps the device has a fault-tolerant firmware - one of the chips contains a backup version of firmware, which is activated when the main firmware gets corrupted. We can't really say about it for sure, but the firmware size in both devices does not exceed 6MB.

I faced the "emergency system" personally: when I upgraded the firmware in 3CR870, there occurred some procedural failure - the Alert LED continued blinking long after the file should have been uploaded to the device. I had to reboot the device, following which the device disappeared (that is it couldn't be detected neither over the network nor by the Discovery utility even after 3CR870 had been reset to factory defaults), and the Alert LED went on blinking evoking gloomy thoughts. What should I do? I had to remind myself of the wisdom "If you are getting nowhere fast, RTFM!". It really helped - it appeared that the device was responding to the web interface at the fixed address (within the range 192.168.x.x) but it displayed a screen with the notice that "you have some problems with the firmware, upload it once again". I re-uploaded it (this time successfully), rebooted the device and everything started working all right. By the way, at first I accidentally selected to upload the firmware version for 3CR860 (in safe mode). The file was successfully uploaded, but then the device gave a message that the firmware version was wrong and 3CR870 refused to use it. I wrote about it to inform you that it would hardly be possible to upgrade 3CR860 to 3CR870.



Specifications on 3CR860 and 3CR870

Specs on both devices are similar, so I united them into one table (the differences between the devices are specified in this table).

Case plastic, allows both horizontal and vertical positions as well as "stacking" several devices into a pile
Block interfaces manually no
Wireline segment
LAN number of ports 4
auto MDI/MDI-X yes
WAN number of ports 1
auto MDI/MDI-X yes
connection types supported static IP address yes
dynamic IP address yes
PPTP yes
PPPoE yes
main functions
Access arrangement method Network Address Translation (NAT)
NAT features one-to-many NAT (standard) yes
one-to-one NAT yes
NAT disable option (router mode) no
Device configuration and client setup administration web interface yes
native control utility in Windows it only allows to find the device over network (at any address) and set the address from the current subnetwork
telnet no
COM-port no
SNMP no
save and load configurations yes
embedded DHCP server yes
UPnP support no
Internal clock yes
time synchronization NTP, but the preset servers cannot be modified
Built-in utilities ICMP Ping yes
Traceroute yes
Resolving yes
Logging events yes, customizable: LAN, ISP Connection Events, VPN Detailed logging, Dropped Packets, Attack Detection
logging firewall rule execution yes, but all at once (dropped packets)
storage in the device yes
in the external Syslog server yes
sending to email no
SNMP SNMP Read support no
SNMP Write support no
SNMP Traps support no
Features of the embedded filters and the firewall
Filter types by MAC address no
by IP address yes
by protocol/port by dst port, irregardless of protocol
by URL yes
by domain yes (combined with URL)
content filtering services yes, via subscription
Virtual servers create yes
setting different public/private ports for a virtual server no
setting DMZ yes
Embedded firewall yes, but not very convenient, basically preset rules
SPI support (Sateful Packet Inspection) yes, but cannot be used in rules
application support (netmeeting, quicktime, etc) yes
action types allow yes
deny yes
log no (you can only log dropped packets globally, for all the rules)
rule criteria src interface lan/wan no
dst interface lan/wan no
src ip/range only ip
dst ip/range no
src protocol no
dst protocol no
src port/range no
dst port/range yes, including lists and ranges
timing no
VPN features
IPSec server tunnel types Gateway--Gateway yes, up to 2 in 3CR860 and up to 50 in 3CR870
remote user access yes, up to 2 in 3CR860 and up to 50 in 3CR870
authentication types pre shared key yes
certificates no
hashing algorithms SHA1 yes
MD5 yes
encryption algorithms DES yes
3DES yes
AES yes, 128bit
add records to the routing table of the IPSec tunnel yes, up to 10 records
L2TP server (over IPSec) authentication types pre shared key yes
certificates no
hashing algorithms SHA1 yes
MD5 yes
encryption algorithms DES yes
3DES yes
PPTP server yes
VPN pass through IPSec yes, if the IPSec/L2TP server is disabled
L2TP yes, if the IPSec/L2TP server is disabled
PPTP yes, if the PPTP server is disabled
Traffic shaping
Shaping types
(available only in 3CR870)
limit the general outgoing traffic yes
limit the general incoming traffic yes
limit the incoming traffic by criteria yes
limit the outgoing traffic by criteria yes
Limit criteria for the rules
(available only in 3CR870)
src interface lan/wan no
dst interface lan/wan no
src ip/range no
dst ip/range no
src protocol just the protocol (globally for src/dst) TCP,UDP, TCP&UDP
dst protocol just the protocol (globally for src/dst) TCP,UDP, TCP&UDP
src port/range just the port (globally for src/dst)
dst port/range just the port (globally for src/dst)
timing no
Limit types
(available only in 3CR870)
quantitative limitations for the band in bytes no (there is only a global limitation for the entire incoming/outgoing traffic)
percentage no
prioritization yes, but there are only two priorities (High & Normal)
Routing
Manual records WAN interface yes
LAN interface yes
Dynamic routing WAN interface disabling yes
RIPv1 yes, send and/or receive
RIPv2 yes, send and/or receive
LAN interface disabling yes
RIPv1 yes, send and/or receive
RIPv2 yes, send and/or receive
Additional information
Firmware version 3CR860: 1.03-168
3CR870: 2.0-168
Power supply external power adapter


Navigation:



Eugene Zaitsev (eightn@ixbt.com)
11.08.2004
