VIA C3M266-L CLE266 Mainboard
|
The microATX boards are usually used in offices; as a rule, they have
a minimal set of controllers and integrated video. The tested model can
also be considered as such, though the new core changes the things a little.
Accessories:
-
Package: standard box of the catchy design;
-
Documentation: user manual in 10 languages;
-
Cables: 1 ATA66/100/133 and FDD;
-
Bracket with 2 USB and 2 FireWire ports;
-
CD containing:
-
drivers;
-
user guide in PDF;
-
VIA FliteDeck (for system monitoring, board overclocking and BIOS flashing
from Windows).
The layout is standard for microATX solutions: assembling can be difficult
because some components are placed too close to each other. It can be difficult
to reach some jumpers when the board is already installed. Their functions
are not shown on the textolite.
The 1-channel switching voltage regulator incorporates 2 capacitors
of 1500 uF and 12 of 1000 uF.
The following controllers are integrated:
-
audio controller based on the chipset's capabilities and VIA VT1616 AC'97
codec supporting 5.1 audio systems and having connectors for front audio
inputs/outputs;
-
network controller based on the chipset's capabilities and supporting 10BaseT/100BaseTX.
Non-unsoldered connectors: FireWire controller and its connectors.
The system monitoring is supported by the VIA VT1211 chip. What is controlled:
-
processor voltage, +3.3, +5 and +12 V and +5 V Standby;
-
speed of 2 fans;
-
temperature of the processor (a built-in sensor).
There are 2 connectors for adjustable connection of fans.
Brief characteristics of the board: memory slots - 2 DDR SDRAM;

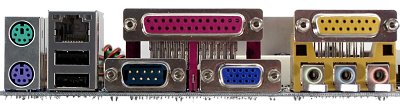

expansion slots - 3 PCI/ CNR; I/O ports - 2 COM/ LPT/ 2 PS/2/ 4 USB 2.0;
dimensions - 245x200 mm.
Adjustment can be carried out with:
| jumpers and switches |
Jumper to clear up the CMOS |
|
| Jumper to enable/disable the audio controller |
|
| BIOS based on the AwardBIOS 6.00PG version from
Phoenix |
Setup of memory timings |
+ |
CAS Latency, Bank Interleave, Precharge to Active, Active to
Precharge, Active to CMD, Command Rate, Burst Length |
| Setup of memory frequency |
+ |
Auto, 66, 100 and 133 MHz |
| Setup of AGP bus |
- |
|
| Setup of PCI bus |
- |
|
| Changeable scaler of AGP and PCI buses |
- |
|
| Manual assignment of interrupts |
- |
|
| Changeable FSB frequency |
+ |
66-166 MHz in 1MHz steps |
| Changeable CPU multiplier |
+ |
x3-x16 |
| Changeable core voltage |
- |
|
| Changeable memory voltage |
+ |
2.5-2.8 V in 0.1V steps |
| Changeable chipset voltage |
- |
|
| Changeable AGP bus voltage |
- |
|
We used the BIOS 1.03 as the latest available version.
The board doesn't have much to attract our attention; so, it's meant
for entry-level computers and, probably, home "TV consoles".
