• i845E chipset

This is the smallest board on this chipset, but it also provides the most scanty set of features.

Accessories:

• Package of a standard design;
• Documentation: user manual in English;
• Cables: 1 ATA66/100/133 and FDD;
• Bracket with a Bass/Center connector;
• CD containing:
• drivers;
• user guide in PDF;
• Adobe Acrobat Reader;
• DirectX 8.1.

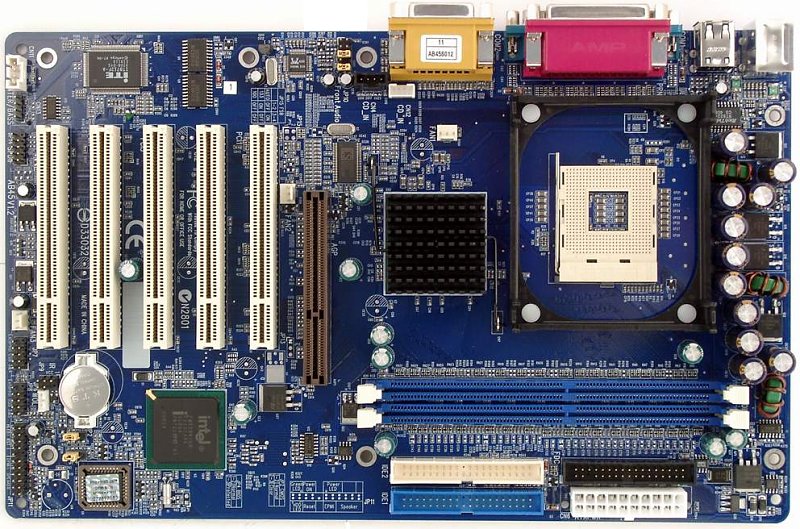

No surprise that the layout is so convenient even though the board is narrower than usual - controllers and their connectors are a rare thing here. It's not difficult to reach jumpers when the board is already installed. Their functions are shown on the textolite.

The 3-channel switching voltage regulator incorporates 11 capacitors of 3300 uF.

The following controllers are integrated:

• audio controller based on the chipset's capabilities and Avance Logic ALC650 AC'97 codec supporting 5.1 audio systems and having connectors for front audio inputs/outputs and for SPDIF;

Non-unsoldered connectors: switches for setting a FSB frequencies.

The system monitoring is supported by the ITE IT8712F-A chip. What is controlled:

• processor voltage, memory, 1.8, +3.3, +5 and +-12 V, VBAT and +5 V Standby
• speed of 3 fans;
• temperatures of the processor (a built-in sensor) and the board (a built-in sensor).

There are 2 connectors for adjustable and 1 for unadjustable connection of fans.

Brief characteristics of the board: memory slots - 2 DDR SDRAM; expansion slots - AGP/ 5 PCI; I/O ports - 2 COM/ LPT/ 2 PS/2/ 6 USB 2.0; dimensions - 305x190 mm.

Adjustment can be carried out with:


We used the BIOS ab45s012 as the latest available version.

This is a good choice for a relatively cheap upgrade or assembling an entry-level computer. At the same time, a user gets nothing except the specified features, i.e. no real overclocking.
