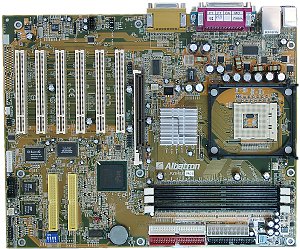

Albatron PX845E Pro II (i845E) Mainboard
|
It's the second time we test a board from this company, and since the
first time there are two things that have changed: a set of accessories
which is richer now and a design of the package.
Accessories:
-
PAckage: cardboard box laminated with plastic with a holographic effect;
-
Documentation: user manual, guide for IDE RAID and instructions for overclocking
a system based on this board - in English;
-
Cables: 2 ATA66/100/133 and FDD;
-
Bracket with 4 USB ports;
-
CD containing:
-
drivers;
-
BIOS version for the board;
-
Adobe Acrobat Reader;
-
PC-Cillin 2002.
Apart from traditional drawbacks (IDE RAID connectors are behind the
PCI slots and audio-ins are in front of them, and difficult handling of
memory modules when a video card is installed) the connectors for USB ports
have not very convenient positions (between the first PCI slot and AGP).
But it's not difficult to reach the jumper and switches when the board
is already installed. Their functions are shown on the textolite.
The 3-channel switching voltage regulator incorporates 10 capacitors
of 2200 uF.
The following controllers are integrated:
-
audio controller based on the ALC650 AC'97 codec supporting 5.1 audio systems
and having connectors for front audio inputs/outputs and for SPDIF;
-
network controller based on the chipset's capabilities and supporting 10BaseT/100BaseTX;
-
IDE RAID controller based on the Promise PDC20276 chip supporting RAID
0 and 1 on the ATA133 protocol;
Thanks to the Winbond W83637HF-AW I/O controller the board supports (and
have connectors) readers for smart cards and Memory Stick flash cards.
The following technologies are supported: BIOS Mirror (to restore contents
of the Flash chip if the BIOS fails) and Voice Genie (informs on problems
during the POST procedure).
+5V supplied in the StandBy mode is indicated by the red LED.
Non-unsoldered connectors: controller of the interface for flash card
readers and its connectors, CNR slot.
The system monitoring is supported by the Winbond W83627HF-AW chip.
What is controlled:
-
voltage of processor, +3.3, +5 and +12 V, VBAT and +5 V Standby;
-
speed of 3 fans;
-
temperatures of the processor (a built-in sensor), and the board (a built-in
sensor).
There are 2 connectors for adjustable and 1 for unadjustable connection
of fans.
Brief characteristics of the board: memory slots - 3 DDR SDRAM;

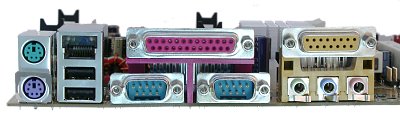

expansion slots - AGP/ 6 PCI; I/O ports - 2 COM/ LPT/ 2 PS/2/ 6 USB 2.0;
dimensions - 305x245 mm.
Adjustment can be carried out with:
| jumpers and switches |
Jumper to clear up the CMOS |
|
| Switches for choosing a language of the Voice Genie
function |
English, Chinese, Japanese, German |
| Switch for choosing a mode of the BIOS Mirror function |
|
| Switch to enable AGP protection from video cards
of 3.3 V |
|
| BIOS based on the AWARDBIOS 6.00PG from Phoenix |
Setup of memory timings |
+ |
CAS Latency, Active To Precharge Delay, RAS to CAS Delay, RAS
Precharge |
| Setup of memory frequency |
+ |
DDR:CPU = x1.5, x2, x2.66, Auto |
| Setup of AGP bus |
+ |
|
| Setup of PCI bus |
- |
|
| Changeable scaler of AGP and PCI buses |
+ |
CPU:AGP(PCIx2) = Auto, x1.5, x2, x2.5 and AGP(PCIx2) = 66 MHz |
| Manual assignment of interrupts |
- |
|
| Changeable FSB frequency |
+ |
100-248 MHz in 1MHZ steps |
| Changeable CPU multiplier |
+ |
x8-x24 |
| Changeable core voltage |
+ |
1.1-1.85 V in 0.025V steps |
| Changeable memory voltage |
+ |
2.5, 2.6, 2.7, 2.8 V |
| Changeable chipset voltage |
- |
|
| Changeable AGP bus voltage |
+ |
1.5, 1.6 V |
We used the latest available version of the BIOS - BIOS 1.02.
This is an excellent motherboard at a moderate price; high quality,
rich functions and wide overclocking and adjustment settings. It's a 3-in-1
device :). This manufacturer is quite young, but we can see that the engineers
have decent experience in this field.
Test results:
