RightMark Audio Analyzer Test Report



Tested device E-MU 1616M
Mode 24-bit, 96 kHz
Sound interface ASIO
Signal route External loopback (line-out - line-in)
RMAA version PRO 6.0


20 Hz - 20 kHz filter Yes
Signal normalization Yes
Mono No
Calibration frequency 1000 Hz
Polarity Correct/correct



Summary

Frequency response (40 Hz - 15 kHz), dB
+0.01, -0.12
Excellent
Noise, dB (A)
-118.0
Excellent
Dynamic range, dB (A)
117.9
Excellent
THD, %
0.0009
Excellent
THD+N, dB (A)
-98.5
Excellent
IMD+N, %
0.0014
Excellent
Channel crosstalk, dB
-116.5
Excellent
IMD at 10 kHz, %
0.0030
Excellent
Total score

Excellent



Frequency characteristic

Spectrum graph


20 Hz to 20 kHz, dB
-0.22, +0.01
40 Hz to 15 kHz, dB
-0.12, +0.01

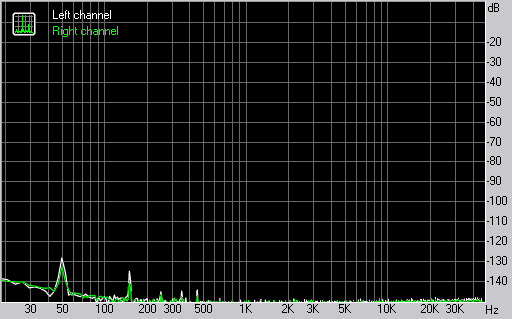

Noise

Spectrum graph



Left
Right
RMS, dB
-116.1
-116.3
RMS, dB (A)
-118.0
-118.0
Peak level, dB
-81.9
-81.9
DC offset, %
-0.0
-0.0

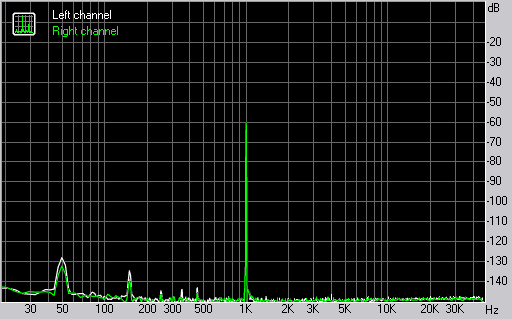

Dynamic range

Spectrum graph



Left
Right
Dynamic range, dB
+116.6
+116.8
Dynamic range, dB ()
+117.9
+117.9
DC offset, %
-0.00
-0.00

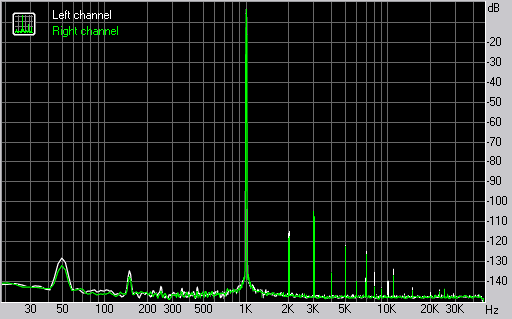

THD+N (-3 dB)

Spectrum graph



Left
Right
THD, %
+0.0009
+0.0009
THD+N , %
+0.0009
+0.0009
THD+N (A), %
+0.0012
+0.0012

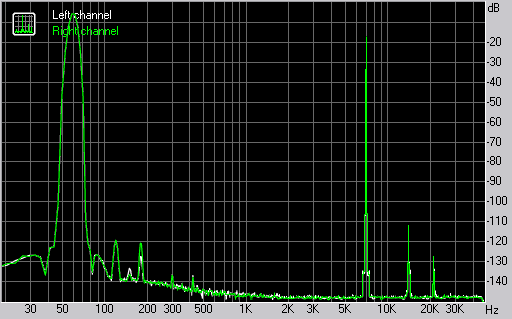

IMD

Spectrum graph



Left
Right
IMD+N, %
+0.0014
+0.0014
IMD+N (A), %
+0.0013
+0.0013



Stereo crosstalk

Spectrum graph



Left
Right
Crosstalk at 100 Hz, dB
-110
-112
Crosstalk at 1000 Hz, dB
-115
-116
Crosstalk at 10000 Hz, dB
-106
-105



IMD (variable frequency)

Spectrum graph



Left
Right
IMD+N at 5000 Hz,
0.0036
0.0037
IMD+N at 10000 Hz,
0.0022
0.0022
IMD+N at 15000 Hz,
0.0032
0.0033
