Toughbook CF-Y2 — a Light-weight and Original Notebook from Panasonic

June 16, 2005








It so happened that Panasonic notebooks have been deprived of our attention up to now. We'll try to repair this injustice and to introduce our readers to these products, especially as Panasonic models look quite interesting (at least at first blush). A peculiarity of these notebooks is their increased durability and original design. Today you will meet a representative of "slim and light-weight" notebooks — Toughbook CF-Y2

Panasonic Toughbook CF-Y2 Specifications (from the manufacturer)

Processor Intel® Pentium M LV 1.3 GHz
Chipset Intel 855GM
RAM 256 MB DDR-266 SDRAM expandable to 768MB
Display 14.1" anti-glare SXGA (1400x1050)
Graphics Integrated
Audio SigmaTel STAC9751 AC`97
PC Cards slot 1xType II (CardBus)
HDD 40 GB (our sample was equipped with Toshiba MK4025GASL)
Optical storage Built-in DVD/CD-RW Combo (our sample was equipped with Matshita UJDA757 DVD/CDRW)
I/O ports
  • 1 x headphones jack
  • 1 x microphone jack
  • 1 x VGA port/Mini D-sub 15-pin for an external monitor
  • 1 x RJ11 Modem jack
  • 1 x RJ45 LAN jack
  • 4 x USB 2.0

Card-reader SecureDigital / MultiMedia Card
Communications: Ethernet 10/100
Fax modem 56K
Wi-Fi
Dimensions and weight
  • 310 x 244 x 33-46 mm (12.2" x 9.6" x 1.3-1.8")
  • 1.5 kg (3.4 lbs)

Power supply
  • Li-Ion batteries 7.4V 7050mAh
  • 100–240V AC power adapter

It should be noted that this model currently comes equipped with Pentium M LV 738 1.4 GHz with Intel PRO/Wireless 802.11ABG.

Package Contents:

  • Notebook
  • Power supply unit with a cord
  • Product Recovery DVD-ROM
  • Operating Instructions (ENG)
  • Windows XP Pro booklet

First Impressions

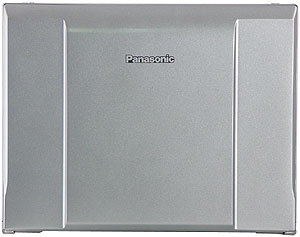

The stamped display lid looks quite original. The entire case is made of magnesium alloy. Together with a shock-mounted hard drive, it should provide extra durability for this notebook.

Battery is installed on the rear.

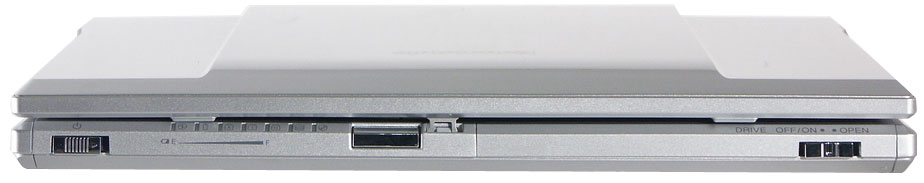

The front panel houses: a power slider (on the left), indicators, a display lid latch, and a sliding catch that opens or turns off the DVD/CD-RW drive.

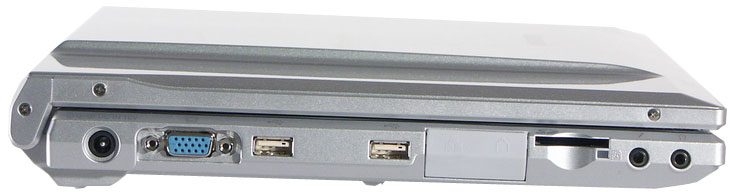

Left flank (left to right)

  • Power cable connector
  • VGA port
  • 2 x USB
  • LAN port
  • Phone line connector (these two connectors are covered by a rubber lid)
  • SD-Card slot
  • Microphone jack
  • Headphones jack

The layout of USB ports calls for comments — there are only two of them located behind RJ-45 and RJ-11, not a good location. If a network or modem cable is plugged to the notebook, it's very inconvenient to connect USB devices. But if no cables are plugged, this layout allows to connect even the bulkiest USB devices without adapters.

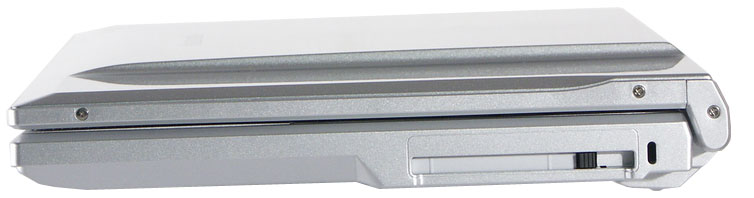

The right flank houses only PC Card slot and Kensington lock hole.

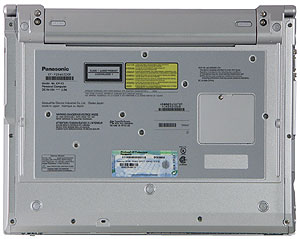

Battery latches and a lid that covers memory modules are on the bottom. There are no air vent holes for the processor.

On the whole, the set of ports is minimalist. But if you are not going to use the notebook as a desktop replacement with external mouse and keyboard, then two USB ports should be enough. No IEEE1394 port may become a critical issue, though.

Ergonomics and usability

First of all we should figure out how to open that lid. Two symmetric sliders suggest that we should use them to open the lid instead of a button in the middle. The lid is stamped with ribbing, which allows to make the notebook thinner.

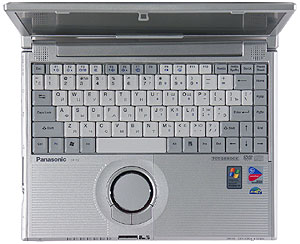

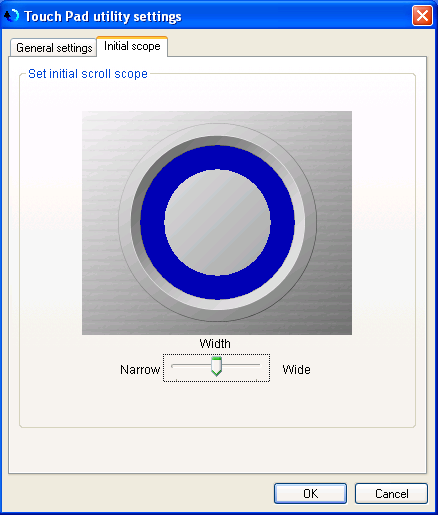

The first thing you notice when you open the lid is an original round touchpad. This solution is supposedly more convenient to use for scrolling. You scroll by moving your finger on the touchpad, not very original, isn't it? But you draw circles instead of moving your finger up and down.




I've heard polar opinions about usability of such a touchpad. I can say that I liked it much better than the traditional design. And the round shape of the pad is almost no problem to control the cursor.

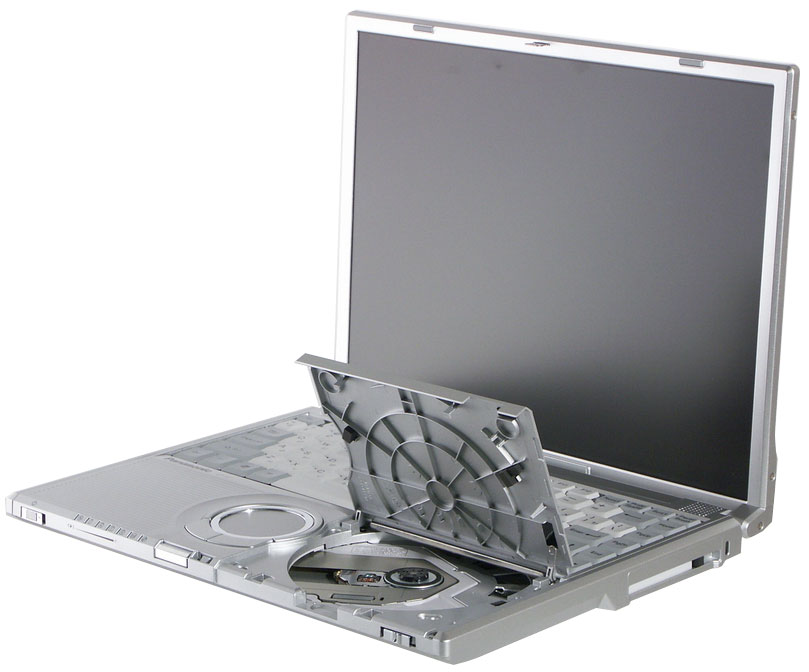

I don't like the other original design element — pop-up lid of the optical drive. First of all, the process of installing/removing a disc seems a tad less convenient than the traditional way. Secondly, the drive is very noisy, so disabling it seems a good option.

The keyboard is almost as wide as the notebook. It's rather convenient, we can only hold a demand against the Enter button size — it would be better to be able to press it without aiming.

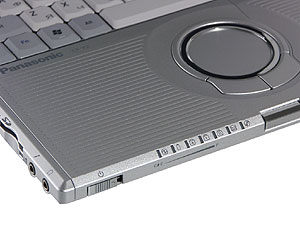

All indicators are grouped into a single block in the fore left part of the notebook. The place is rather good, at least you don't block indicators with your hand. The indicators also show the battery charge level. To check up the battery charge, you should move the slider (as if you turn it on) with the lid closed and the power supply unit unplugged. The scale is non-linear. When all the LEDs are off, it means that the charge level is 0%-4%, one LED alight means 5-24%, and so on at 20% steps to 94%. All five LEDs lighting correspond to the 95-100% charge. But wireless activity is not indicated; there is also no hot key to switch it off — you'll have to do it on the software level only.

Unfortunately, when we tested this notebook, our testbed for examining panels was not yet ready, so I cannot publish precise angles of view for this model. The antiglare screen subjectively reduces small enough viewing angles, typical of notebook panels.

The major attraction of this notebook is its original design. In my opinion, it's up to users to decide how this original design goes with usability. I've just tried to deliver my impressions.

Repairs and upgrades

This notebook uses a hard drive with reduced voltage (3.3V), so you'll probably have to resort to some tricks to replace the hard drive. You can read some tips on how to replace a drive on your own here. But this method has not been tested, so use it only at your own risk.

Testing the notebook

As soon as you have a look into the specifications, you will assume that the performance of this notebook will not be high, its battery life should be good, and 3D graphics is not this model's element.

BAPCo/MadOnion MobileMark 2002 Productivity workload (Performance rating) 139
BAPCo/MadOnion MobileMark 2002 Productivity workload (Average response time) 1.42 sec
BAPCo/MadOnion MobileMark 2002 Productivity workload (Battery life rating) 262 minutes
BAPCo/MadOnion MobileMark 2002 Reader workload (Battery life rating) 281 minutes


BAPCo/MadOnion SysMark 2002 141
BAPCo/MadOnion SysMark 2002 Office Productivity 125
BAPCo/MadOnion SysMark 2002 Internet Content Creation 158


MadOnion 3DMark 2001
(32 bit color, 32 bit Texture Format, 24 bit Z-buffer depth, Frame Buffer — Double buffering, Software T&L, Game Performance)
Resolution640x480800x6001024x7681280x7681400x1050
3DMark Result2711224316741114987

And our tests prove it.

Overall Bottom Line. Conclusions

Panasonic Toughbook CF-Y2 is a notebook with original impressive design. Durable case, shock-mounted hard drive, and long battery life make it a good companion when you travel or on vacation. But the notebook capacities are limited by the poor choice of ports, and to a lesser degree, by its relatively low performance.

Another important factor is its price. Frankly speaking, this model is quite pricey.





Nikolai Dorofeyev (niko@ixbt.com)
June 16, 2005
