M-Audio Audiophile 192 Professional Sound Card

October 24, 2006

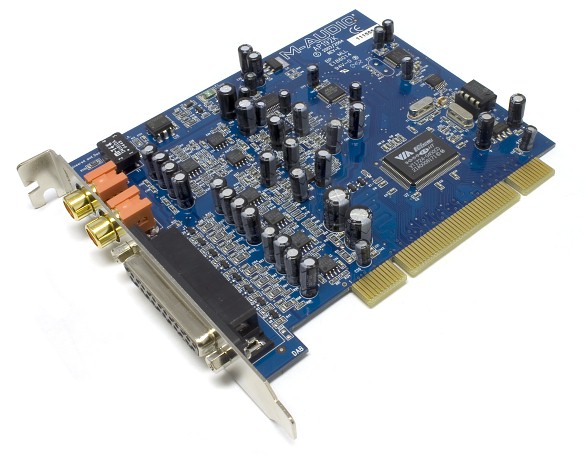

The M-Audio Audiophile 192 professional sound card was announced late in 2004. The "Audiophile" name was succeeded from the previous model, Audiophile 2496. But nevertheless this product is not intended for audiophiles. Balanced TRS connectors and the Delta series indicate that Audiophile 192 is a modern and affordable professional sound card for a home/project sound studio. A single PC can host up to four such cards.

Two analog inputs and four analog outputs are card's key feature, so let's take a closer look at them.

Main Outputs 1/2 (1/4" TRS) support balanced/unbalanced connections. Output signal is strictly assigned to the first MME device and is designed for connecting mixing consoles, headphones amplifiers, and recording devices. Its volume is fixed at maximum and cannot be changed.

Monitor Outputs (1/4" TRS) support balanced/unbalanced connections. Output signal is defined by card internal hardware mixer (can monitor signals from digital and analog inputs/outputs) and is designed for connecting active monitors.

Is a dedicated output really a plus can be questioned. Given the card is connected to an analog mixer, it solves the problem of separating and adjusting headphones and monitor signal levels. As for the enhanced routing and mixing capabilities, these are not that demanded from an internal stereo sound card. We suppose a dedicated headphones amplifier (like that of M-Audio Revolution 5.1 or ESI MAYA 44) would be more useful.

Converters(ratings) Stereo ADC AKM AK5385A 24-bit 192 kHZ
(THD+N -103 dB, DR 114 dB)

8-channel DAC AKM AK4358 24-bit 192 kHz
(THD+N -94 dB, DR 112 dB)

Converters are the same as those of ESI Juli@, alike in operation.

And again about the 8-channel DAC. This gives a capability to monitor digital and analog inputs/outputs completely on the hardware level of DAC stereo channels, signals mixed the analog way without passing through PC.

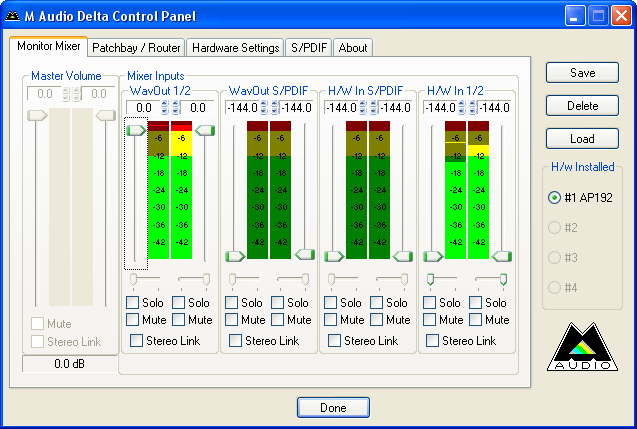

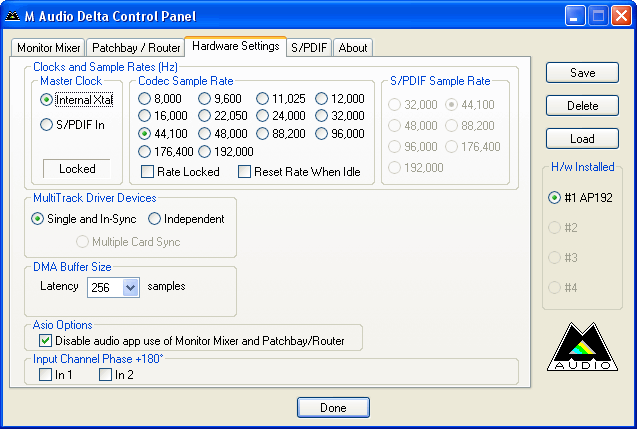

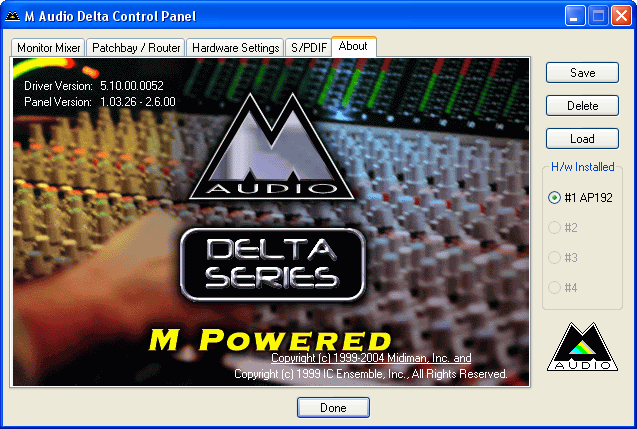

The control panel appearance is similar throughout the entire Delta series. Card mixer is unified, which simplifies controls for an experienced user. The disadvantage is that settings are mixed up and scattered about the tabs. Signal monitoring and routing are not intuitively understandable, so one might have to look into the manual more often than expected. ESI Juli@ has a more comfortable control panel.

Mixer channels:

WavOut 1/2 - analog output of the first WavOut 1/2 channel (fixed volume)

WavOut S/PDIF - second hardware channel WavOut S/PDIF (S/PDIF output by default)

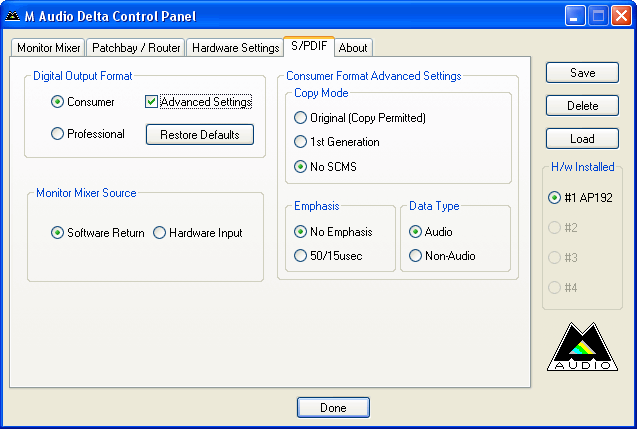

H/W in S/PDIF - S/PDIF hardware monitoring (cannot monitor input and output at the same time, need to select in the S/PDIF tab)

H/W in 1/2 - 1/2 hardware input monitoring

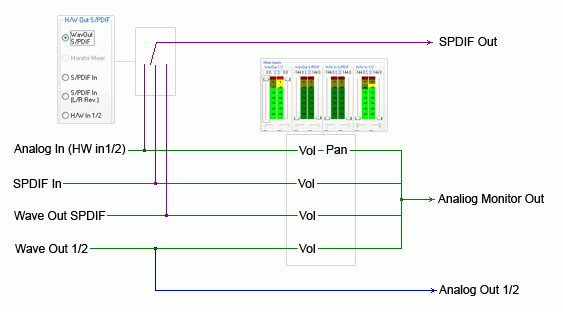

For your comfort Roman Kuznetsov drew a signal-flow diagram. "Vol" means level control, "Pan" is for panorama. Images show mixer tabs corresponding to units.

Thus the second hardware channel WavOut S/PDIF can be used as an independent analog monitor output, which transforms the card into a fully-fledged 4-channel solution with 2 independent stereo outputs. If you raise the volume of WavOut S/PDIF and mute everything else you will get a second independent stereo channel. If you set WavOut S/PDIF to minimum, adjusting WavOut 1/2 you will dub the first channel to both analog outputs.







RMAA ASIO report:

Device: M-Audio Delta ASIO

Features:
Input channels: 4
Output channels: 4
Input latency: 294
Output latency: 298
Min buffer size: 64
Max buffer size: 2048
Preferred buffer size: 256
Granularity: 0
ASIOOutputReady - supported

Sample rate:
8000 Hz - supported
11025 Hz - supported
16000 Hz - supported
22050 Hz - supported
32000 Hz - supported
44100 Hz - supported
48000 Hz - supported
88200 Hz - supported
96000 Hz - supported
176400 Hz - supported
192000 Hz - supported


Input channels:
channel: 0 (Analog In 1 Delta-AP192 [1]) - Int32LSB
channel: 1 (Analog In 2 Delta-AP192 [1]) - Int32LSB
channel: 2 (SPDIF In L Delta-AP192 [1]) - Int32LSB
channel: 3 (SPDIF In R Delta-AP192 [1]) - Int32LSB

Output channels:
channel: 0 (Analog Out 1/2 Delta-AP192 [1]) - Int32LSB
channel: 1 (Analog Out 1/2 Delta-AP192 [1]) - Int32LSB
channel: 2 (SPDIF Out L/R Delta-AP192 [1]) - Int32LSB
channel: 3 (SPDIF Out L/R Delta-AP192 [1]) - Int32LSB

Another benefit of this card is its support for all possible sampling rates.

Objective testing

We had a chance to test Audiophile 192 sending signal to the reference rack interface Lynx Aurora 8. This enabled us to obtain card output ratings. According to the specifications, Audiophile 192 analog output features 108 dBA SNR and 109 dBA dynamic range. The vendor honestly provided the actual card output ratings instead of DAC ratings.

The results in different PCs may vary due to different motherboard and PSU models, and external noise pickup.

Tested circuit:Audiophile 192 line-out - Aurora 8 line-in

Mode:44100 Hz, 24-bit

Frequency response (40 Hz to 15 kHz), dB: +0.05, -0.05 Excellent
Noise level, dB (A): -108.5 Excellent
Dynamic range, dB (A): 108.5 Excellent
THD, %: 0.0007 Excellent
THD+N, dB (A): -94.9 Excellent
IMD+N, %: 0.0020 Excellent
Stereo crosstalk, dB: -108.4 Excellent
IM at 10 kHz, %: 0.0019 Excellent

Total score: Excellent

Spectrum graph
M-Audio Audiophile 192 dynamic range (44100 Hz, 24-bit)

Tested circuit: Audiophile 192 line-out - Aurora 8 line-in

Mode: 96000 Hz, 24-bit

Frequency response (40 Hz to 15 kHz), dB: +0.03, -0.04Excellent
Noise level, dB (A): -108.3Excellent
Dynamic range, dB (A): 108.4Excellent
THD, %: 0.0007Excellent
THD+N, dB (A): -94.9 Excellent
IMD+N, %: 0.0021Excellent
Stereo crosstalk, dB: -106.0Excellent
IM at 10 kHz, %: 0.0024Excellent

Total score: Excellent

The results are nearly the identical to those of ESI Juli@. After all, these cards feature the same converter chips.

Tested circuit: Audiophile 192 line-out - line-in

Mode: 44100 Hz, 24-bit

Frequency response (40 Hz to 15 kHz), dB: +0.05, -0.06 Excellent
Noise level, dB (A): -106.4 Excellent
Dynamic range, dB (A): 106.4 Excellent
THD, %: 0.0015 Excellent
THD+N, dB (A): -94.9 Excellent
IMD+N, %: 0.0023 Excellent
Stereo crosstalk, dB: -104.0 Excellent
IM at 10 kHz, %: 0.0024 Excellent

Total score:

The analog input features higher-quality converters rated at 113 dBA. As we can see, loopback test results are bottlenecked by DACs. It's not a problem of RMAA, but a problem of this measurement technique. To obtain more adequate results one will need a higher-quality reference device. However, by connecting input to output we can: 1) obtain approximate values; and 2) discover noise pickups and optimize wire pass-through.

Test auditions

For auditions we used near-field studio monitors ADAM S2.5A, Proel professional microphone cable with gilded connectors. We also compared M-Audio Audiophile 192 with ESI Juli@ and M-Audio Revolution 5.1. All of these feature the same DAC - AKM AK4358. Cards were installed into the same PC. Comparison was conducted by momentary cable switching.

All three sound cards perform on the same level and differ only by nuances. ESI Juli@ (balanced TRS connection) is a leader in details, attack and stereo panorama. Audiophile 192 yields a bit, but still performs better than M-Audio Revolution 5.1. Remember, these differences can be heard only on rather high-quality acoustics and hardly show up on inexpensive active stereo speakers or entry-level monitors.

It's interesting that, when reviewing Audiophile 2496, I also preferred a product from ESI - Waveterminal 2496.

Conclusions

M-Audio Audiophile 192 sound card is an inexpensive professional solution mostly important for users in need of additional analog output. The closest rival, ESI Juli@, features a more intuitive control panel and provides unbalanced RCA connectivity. In everything else these cards are similar. Perhaps, compatibility with ProTools M-Powered will become a deciding argument to Audiophile 192.


M-Audio Audiophile 192 sound card
kindly provided by PROAUDIO.RU


Maxim Lyadov (maxim@ixbt.com)
October 16, 2006
