New Digitex DVD Media




 Forum

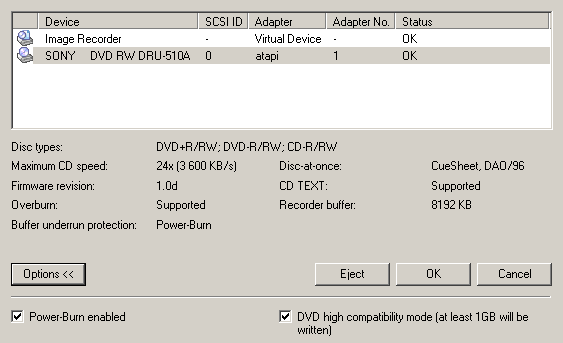

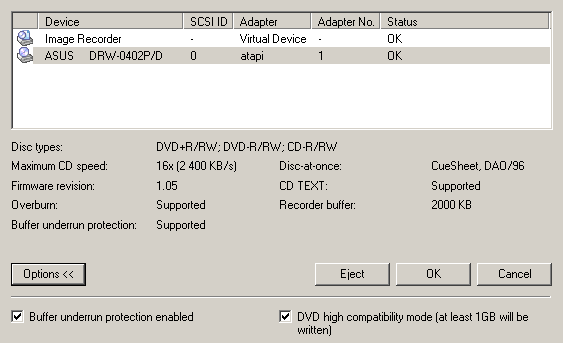

Recording DVD drives are getting widely popular, and the number of the drives installed is also mushrooming. The demand for various recordable DVD media is growing up at the same rate. This market sector becomes the most vital for many optical drive makers. Digitex has recently updated its line of recordable DVD discs. If earlier the same pack contained DVD media from different companies, now the whole line is produced solely by Optodisc. It prevents the problems that users faced before. Today we've got a new series from Digitex to test in our lab. At the present the line lacks for DVD+R/RW media designed for 4X, but the company is going to get the license in the near future for their production. All the discs were tested on the ASUS DRW-0402P/D and SONY DRU510-A drives which support all media types of the new line. Note that it's not professional benchmarking as we do not have specific tools and that many discs. We used usual DVD drives and recorded 4-5 discs of each type.

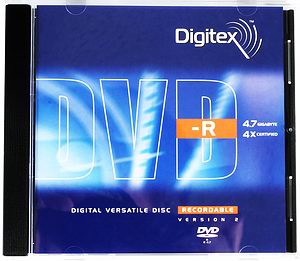

DVD-R DVD-R47B4-J1




Lead-In data.

00 6A 00 00 01 40 C1 FD 9E D8 52 00 02 87 0E 13  .J...@....R.....
87 88 80 00 03 4F 50 54 4F 44 49 00 04 53 43 52  .....OPTODI..SCR
30 30 34 00 05 88 80 00 00 00 01 00 06 0B 0F 11  004.............
86 67 80 00 07 88 80 00 00 00 00 00 08 05 16 0D  .G..............
10 0A 09 00 09 97 06 0E 0B 58 88 00 0A C0 00 00  .........X......
00 00 10 00 0B 07 1A 17 B8 89 75 00 0C D5 79 88  ..........U...Y.
80 00 00 00 0D 00 00 D0 00 00 00 00 00 00 00 00  ................

Recording on ASUS DRW-0402P/D, 2x, Lite-On Kprobe reading




  Recording on SONY DRU510-A, 2x, Lite-On Kprobe reading




  Recording on ASUS DRW-0402P/D, 2x, Toshiba Nero reading




  Recording on SONY DRU510-A, 2x, Toshiba Nero reading

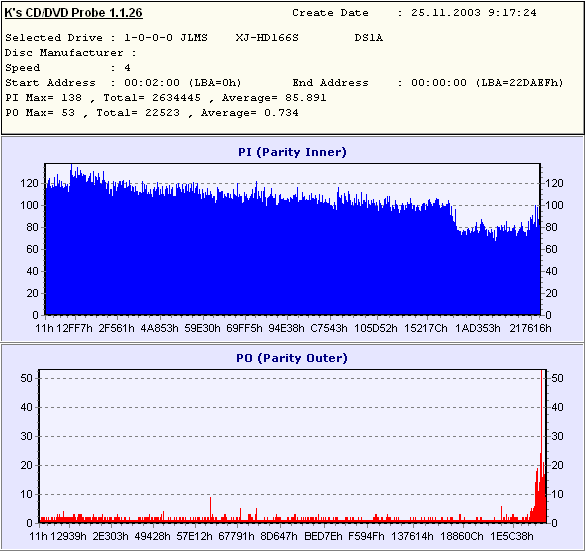

  Recording on ASUS DRW-0402P/D, 4x, Lite-On Kprobe reading

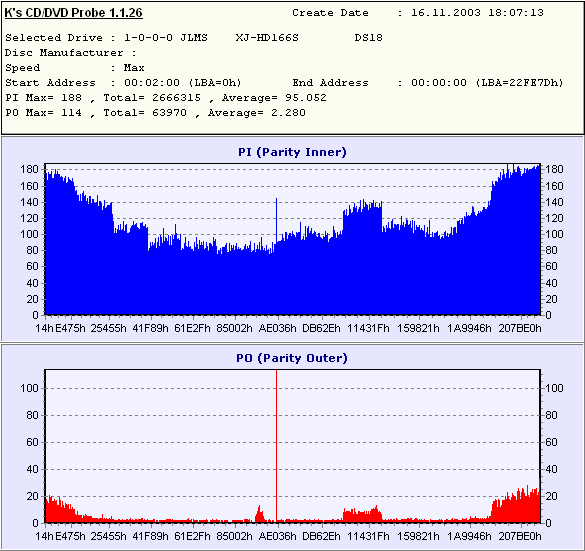

  Recording on SONY DRU510-A, 4x, Lite-On Kprobe reading




  Recording on ASUS DRW-0402P/D, 4x, Toshiba Nero reading




  Recording on SONY DRU510-A, 4x, Toshiba Nero reading



In spite of the high level of errors the discs recorded were successfully read by the test DVD-ROM drives. Sometimes the movies played on the home BBK 916S player had some problems like sound interruption and picture freezing by the disc end.

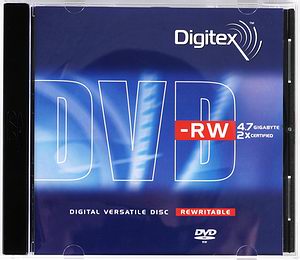

DVD-RW DVD-RW47B2-J1







Lead-In data.

00 6A 00 00 01 40 D6 FD 9E D8 21 00 02 0F 07 0D  .J...@....!.....
88 76 09 00 03 4F 50 54 4F 44 49 00 04 53 43 4B  .V...OPTODI..SCK
30 30 31 00 05 0D 88 76 09 00 00 00 06 10 0B 07  001....V........
60 07 10 00 07 10 0B 07 88 60 07 00 00 00 00 00  `........`......

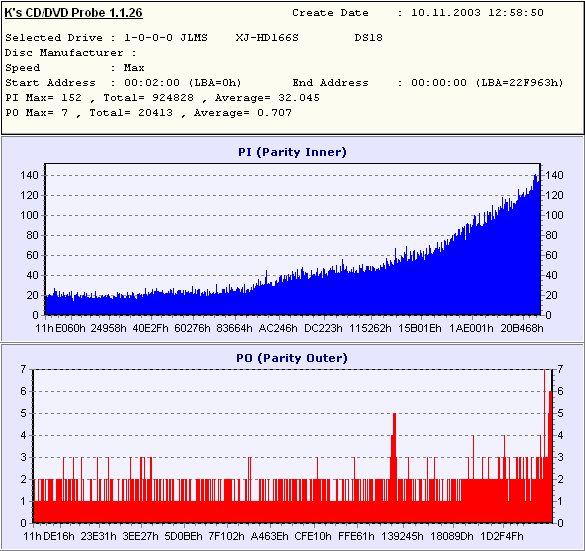

Recording on ASUS DRW-0402P/D, 2x, Lite-On Kprobe reading

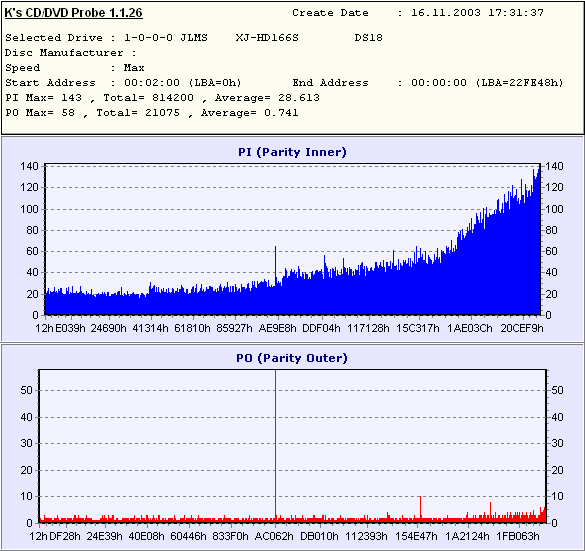

  Recording on SONY DRU510-A, 2x, Lite-On Kprobe reading




  Recording on ASUS DRW-0402P/D, 2x, Toshiba Nero reading

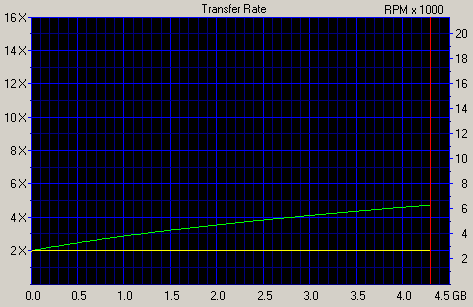

  Recording on SONY DRU510-A, 2x, Toshiba Nero reading



The discs were successfully read on the test DVD-ROM and home DVD players.

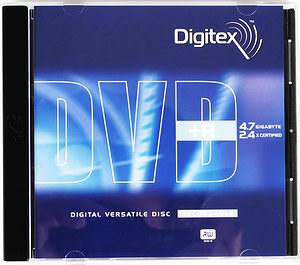

DVD+R DVD+R47B2.4-J1




Information on Manufacturer.

DVD+R/RW Manufacturer  OPTODISCO
Book Type                  DVD+R
Max Rate              10.08Mbps
Linear Density       0.267um/bit
No of Layers                   1

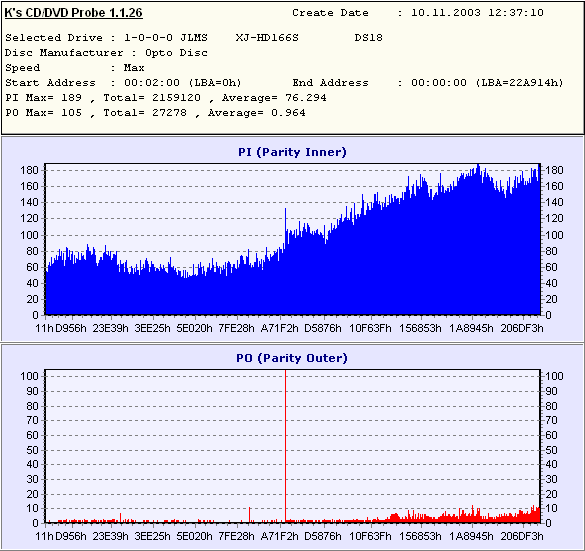

Recording on ASUS DRW-0402P/D, 2.4x, Lite-On Kprobe reading

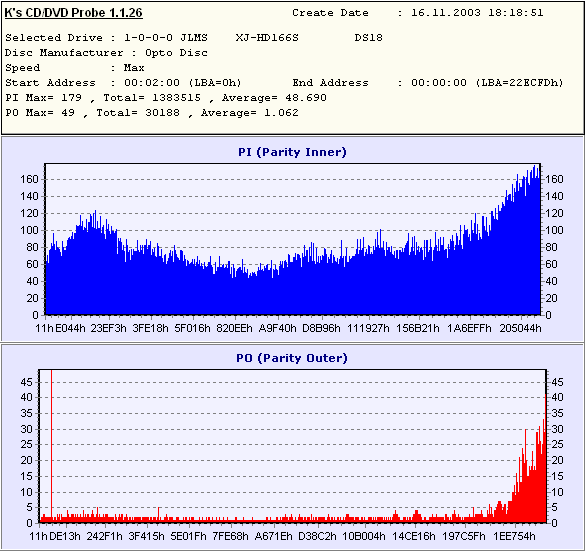

  Recording on SONY DRU510-A, 2.4x, Lite-On Kprobe reading

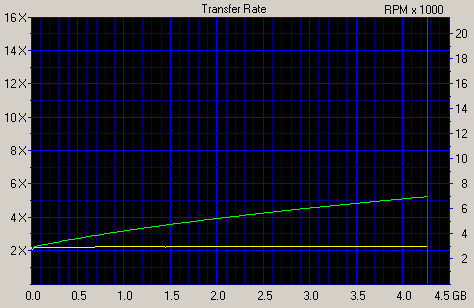

  Recording on ASUS DRW-0402P/D, 2.4x, Toshiba Nero reading




  Recording on SONY DRU510-A, 2.4x, Toshiba Nero reading



The discs were successfully read on the test DVD-ROM and home DVD -players.

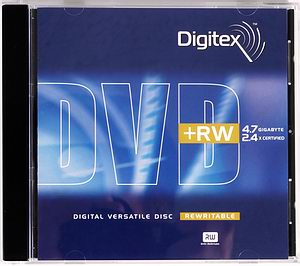

DVD+RW DVD+RW47B2.4-J1







Information on Manufacturer.

DVD+R/RW Manufacturer  OPTODISCO
Book Type                 DVD+RW
Max Rate              10.08Mbps
Linear Density       0.267um/bit
No of Layers                   1

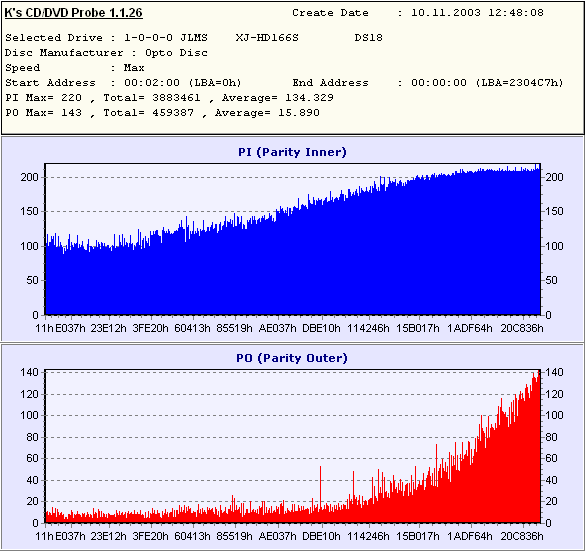

Recording on ASUS DRW-0402P/D, 2.4x, Lite-On Kprobe reading

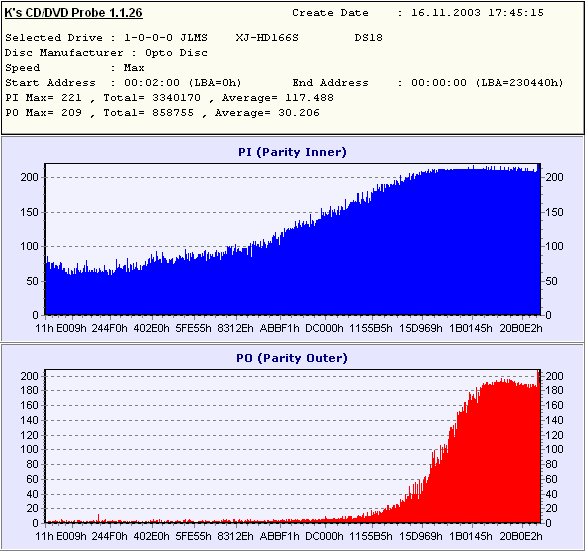

  Recording on SONY DRU510-A, 2.4x, Lite-On Kprobe reading

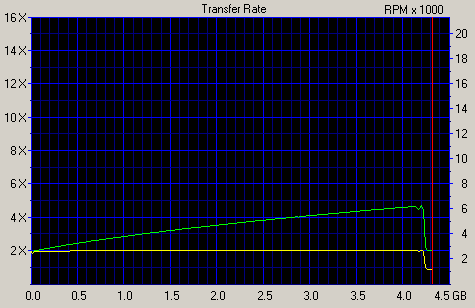

  Recording on ASUS DRW-0402P/D, 2.4x, Toshiba Nero reading

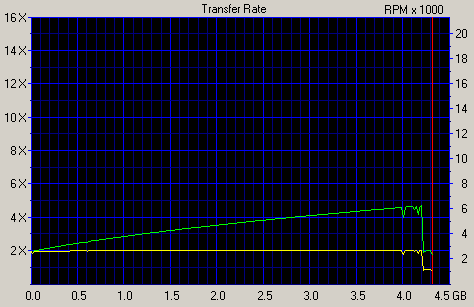

  Recording on SONY DRU510-A, 2.4x, Toshiba Nero reading



There's quite a lot of errors at the end of the disc, though the DVD-ROM drives read the data without any problems. Sometimes the movies played on the home BBK 916S player had some problems like sound interruption and picture freezing by the disc end.




Roman Shelepov (srl@ixbt.com)
