Hoontech DSP24 Value



RightMark Audio Analyzer test


Testing chain: WT2496 Line Out - DSP24 Value Line In
Sampling mode: 96000 Hz, 24 bits




Final results

Frequency response (from 40 Hz to 15 kHz), dB: -1.00, +0.00Average
Noise level, dB (A): -86.0Good
Dynamic range, dB (A): 83.6Good
THD, %: 0.004Very good
IMD, %: 13.710Very poor
Stereo crosstalk, dB: -85.5Excellent

General performance: Good

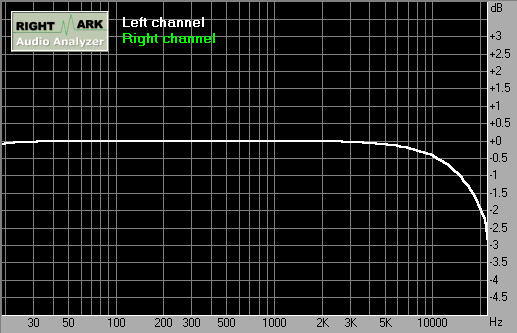

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-1.91, +0.00
From 40 Hz to 15 kHz, dB-1.00, +0.00

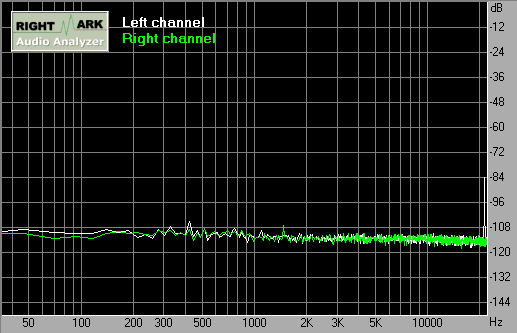

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-80.3-80.7
RMS power (A-weighted), dB:-86.0-86.4
Peak level, dB FS:-70.5-71.1
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+77.7+78.3
Dynamic range (A-weighted), dB:+83.6+83.9
DC offset, %:0.000.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0040.004
THD + Noise, %:3.2753.275
THD + Noise (A-weighted), %:0.1540.154




IMD

Spectrum graph


Parameter Left Right
IMD + Noise, %:74.22974.230
THD + Noise (A-weighted), %:13.70913.710




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-92.8-90.5
Crosstalk at 1 kHz, dB:-89.7-85.5
Crosstalk at 10 kHz, dB:-76.1-76.9

This report was generated by RightMark Audio Analyzer v.3.1
