Hoontech DSP24 Value



RightMark Audio Analyzer test


Testing chain: DSP24 Value RCA Out - WT2496 Line In
Sampling mode: 48000 Hz, 16 bits




Final results

Frequency response (from 40 Hz to 15 kHz), dB: -0.29, +0.00Very good
Noise level, dB (A): -86.5Good
Dynamic range, dB (A): 83.9Good
THD, %: 0.002Excellent
IMD, %: 0.016Very good
Stereo crosstalk, dB: -87.1Excellent

General performance: Very good

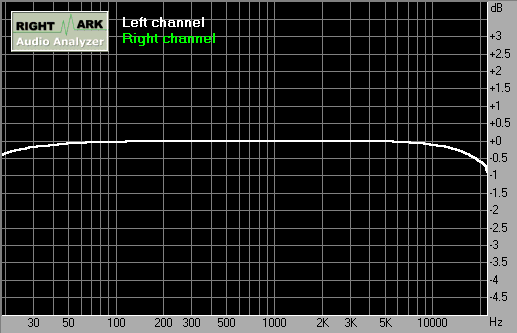

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.58, +0.00
From 40 Hz to 15 kHz, dB-0.29, +0.00

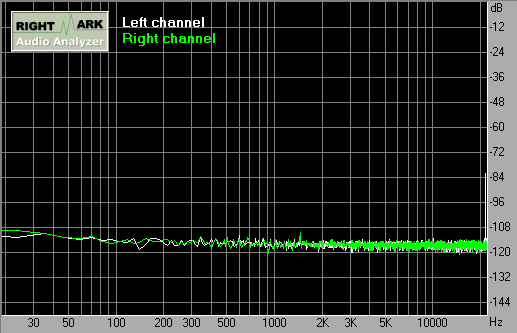

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-82.0-83.0
RMS power (A-weighted), dB:-86.5-86.8
Peak level, dB FS:-71.7-71.7
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+79.3+80.3
Dynamic range (A-weighted), dB:+83.9+84.2
DC offset, %:0.000.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0020.002
THD + Noise, %:0.0160.014
THD + Noise (A-weighted), %:0.0100.010




IMD

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0290.026
THD + Noise (A-weighted), %:0.0160.015




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-93.2-89.4
Crosstalk at 1 kHz, dB:-87.1-90.2
Crosstalk at 10 kHz, dB:-76.8-76.4

This report was generated by RightMark Audio Analyzer v.3.1
