Hoontech DSP24 Value



RightMark Audio Analyzer test


Testing chain: DSP24 Value Digital Out - WT2496 Digital In
Sampling mode: 48000 Hz, 16 bits




Final results

Frequency response (from 40 Hz to 15 kHz), dB: +0.00, +0.00Excellent
Noise level, dB (A): -86.1Good
Dynamic range, dB (A): 83.6Good
THD, %: 0.001Excellent
IMD, %: 0.014Very good
Stereo crosstalk, dB: -90.9Excellent

General performance: Very good

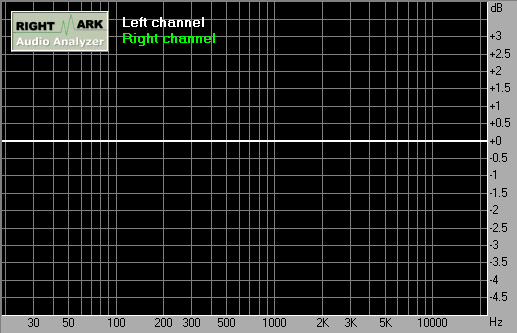

Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB+0.00, +0.01
From 40 Hz to 15 kHz, dB+0.00, +0.00

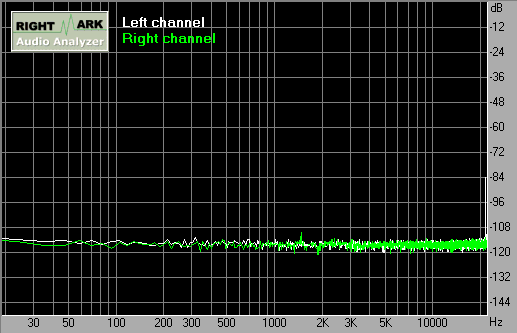

Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-81.0-81.5
RMS power (A-weighted), dB:-86.1-86.4
Peak level, dB FS:-70.8-71.7
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+78.3+78.8
Dynamic range (A-weighted), dB:+83.6+83.9
DC offset, %:0.000.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0010.001
THD + Noise, %:0.0180.017
THD + Noise (A-weighted), %:0.0100.010




IMD

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0240.023
THD + Noise (A-weighted), %:0.0140.013




Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-97.7-97.0
Crosstalk at 1 kHz, dB:-90.9-92.1
Crosstalk at 10 kHz, dB:-77.5-76.9

This report was generated by RightMark Audio Analyzer v.3.1
