RightMark Audio Analyzer testTesting chain: DSP24 Value RCA Out - WT2496 Line In |
| Frequency response (from 40 Hz to 15 kHz), dB: | -0.31, +0.00 | Very good |
| Noise level, dB (A): | -85.8 | Good |
| Dynamic range, dB (A): | 83.2 | Good |
| THD, %: | 0.002 | Excellent |
| IMD, %: | 0.017 | Very good |
| Stereo crosstalk, dB: | -87.3 | Excellent |

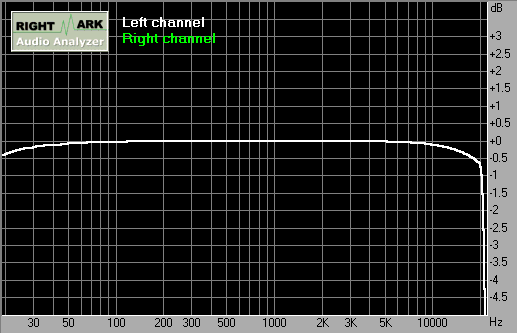

| Frequency range | Response |
| From 20 Hz to 20 kHz, dB | -0.66, +0.00 |
| From 40 Hz to 15 kHz, dB | -0.31, +0.00 |
| Parameter | Left | Right |
| RMS power, dB: | -81.5 | -82.6 |
| RMS power (A-weighted), dB: | -85.8 | -86.2 |
| Peak level, dB FS: | -70.7 | -71.7 |
| DC offset, %: | 0.00 | 0.00 |
| Parameter | Left | Right |
| Dynamic range, dB: | +78.9 | +80.0 |
| Dynamic range (A-weighted), dB: | +83.2 | +83.7 |
| DC offset, %: | 0.00 | 0.00 |
| Parameter | Left | Right |
| THD, %: | 0.002 | 0.002 |
| THD + Noise, %: | 0.017 | 0.015 |
| THD + Noise (A-weighted), %: | 0.011 | 0.010 |
| Parameter | Left | Right |
| IMD + Noise, %: | 0.029 | 0.026 |
| THD + Noise (A-weighted), %: | 0.017 | 0.016 |
| Parameter | L <- R | L -> R |
| Crosstalk at 100 Hz, dB: | -96.3 | -95.0 |
| Crosstalk at 1 kHz, dB: | -87.3 | -88.4 |
| Crosstalk at 10 kHz, dB: | -76.4 | -77.8 |
