Hoontech DSP24 Value



RightMark Audio Analyzer test


Testing chain: Line Out - Line In external loop
Sampling mode: 44100 Hz, 16 bits




Final results

Frequency response (from 40 Hz to 15 kHz), dB: +0.00, +0.00Excellent
Noise level, dB (A): -135.1Excellent
Dynamic range, dB (A): 96.9Excellent
THD, %: 0.000Excellent
IMD, %: 0.003Excellent
Stereo crosstalk, dB: -149.1Excellent

General performance: Excellent




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB+0.00, +0.00
From 40 Hz to 15 kHz, dB+0.00, +0.00




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-135.5-133.7
RMS power (A-weighted), dB:-136.9-135.1
Peak level, dB FS:-90.3-90.3
DC offset, %:0.000.00




Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+95.5+95.5
Dynamic range (A-weighted), dB:+96.9+96.9
DC offset, %:0.000.00

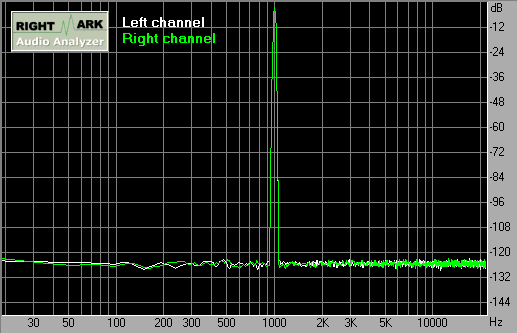

THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0000.000
THD + Noise, %:0.0020.002
THD + Noise (A-weighted), %:0.0020.002

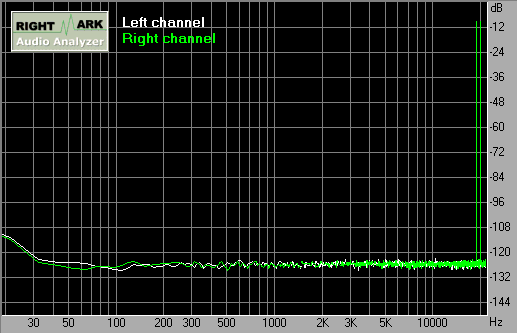

IMD

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0040.004
THD + Noise (A-weighted), %:0.0030.003

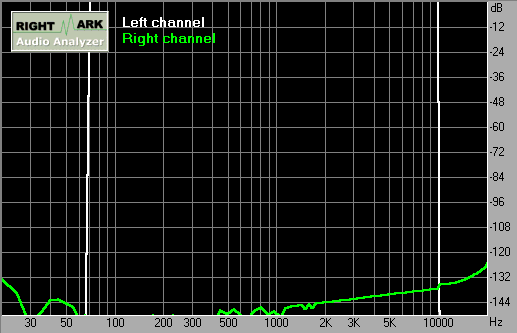

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-214.1-156.9
Crosstalk at 1 kHz, dB:-208.7-149.1
Crosstalk at 10 kHz, dB:-199.7-137.0

This report was generated by RightMark Audio Analyzer v.3.1
