RightMark Audio Analyzer testTesting chain: DSP24 Value Digital Out - WT2496 Digital In |
| Frequency response (from 40 Hz to 15 kHz), dB: | -0.01, +0.00 | Excellent |
| Noise level, dB (A): | -85.6 | Good |
| Dynamic range, dB (A): | 83.0 | Good |
| THD, %: | 0.001 | Excellent |
| IMD, %: | 0.015 | Very good |
| Stereo crosstalk, dB: | -89.0 | Excellent |

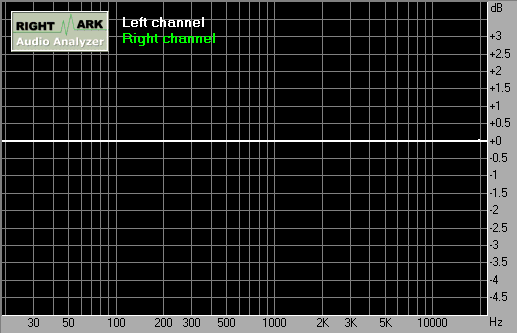

| Frequency range | Response |
| From 20 Hz to 20 kHz, dB | -0.01, +0.01 |
| From 40 Hz to 15 kHz, dB | -0.01, +0.00 |

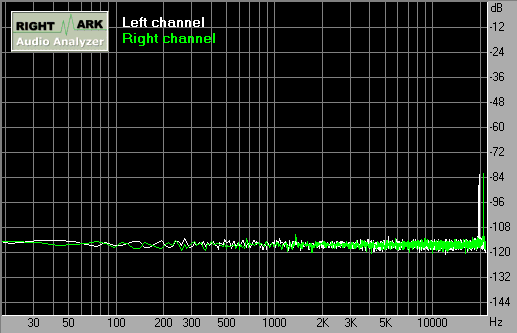

| Parameter | Left | Right |
| RMS power, dB: | -81.1 | -81.5 |
| RMS power (A-weighted), dB: | -85.6 | -86.0 |
| Peak level, dB FS: | -70.8 | -71.7 |
| DC offset, %: | 0.00 | 0.00 |
| Parameter | Left | Right |
| Dynamic range, dB: | +78.4 | +78.9 |
| Dynamic range (A-weighted), dB: | +83.0 | +83.4 |
| DC offset, %: | 0.00 | 0.00 |

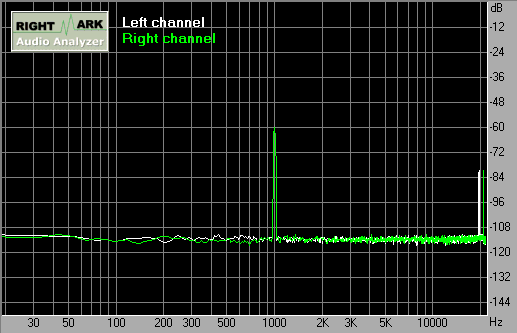

| Parameter | Left | Right |
| THD, %: | 0.001 | 0.001 |
| THD + Noise, %: | 0.018 | 0.017 |
| THD + Noise (A-weighted), %: | 0.011 | 0.010 |
| Parameter | Left | Right |
| IMD + Noise, %: | 0.025 | 0.023 |
| THD + Noise (A-weighted), %: | 0.015 | 0.014 |
| Parameter | L <- R | L -> R |
| Crosstalk at 100 Hz, dB: | -101.7 | -94.1 |
| Crosstalk at 1 kHz, dB: | -92.4 | -89.0 |
| Crosstalk at 10 kHz, dB: | -76.0 | -76.4 |
