EGO•SYS Waveterminal 2496



RightMark Audio Analyzer test


Testing chain: Line Out - Line In external loop
Sampling mode: 96000 Hz, 24 bits




Final results

Frequency response (from 40 Hz to 15 kHz), dB: -0.01, +0.06Excellent
Noise level, dB (A): -98.9Excellent
Dynamic range, dB (A): 96.4Excellent
THD, %: 0.003Excellent
IMD, %: 0.004Excellent
Stereo crosstalk, dB: -96.6Excellent

General performance: Excellent




Frequency response

Spectrum graph


Frequency range Response
From 20 Hz to 20 kHz, dB-0.05, +0.06
From 40 Hz to 15 kHz, dB-0.01, +0.06




Noise level

Spectrum graph


Parameter Left Right
RMS power, dB:-94.3-94.1
RMS power (A-weighted), dB:-98.9-99.1
Peak level, dB FS:-81.5-82.2
DC offset, %:0.000.00

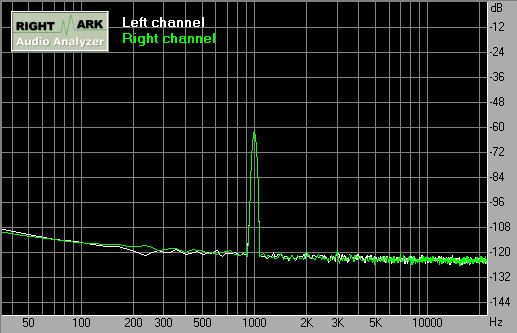

Dynamic range

Spectrum graph


Parameter Left Right
Dynamic range, dB:+91.9+91.9
Dynamic range (A-weighted), dB:+96.4+96.7
DC offset, %:0.000.00




THD + Noise (at -3 dB FS)

Spectrum graph


Parameter Left Right
THD, %:0.0030.002
THD + Noise, %:0.0050.005
THD + Noise (A-weighted), %:0.0050.004




IMD

Spectrum graph


Parameter Left Right
IMD + Noise, %:0.0090.009
THD + Noise (A-weighted), %:0.0040.004

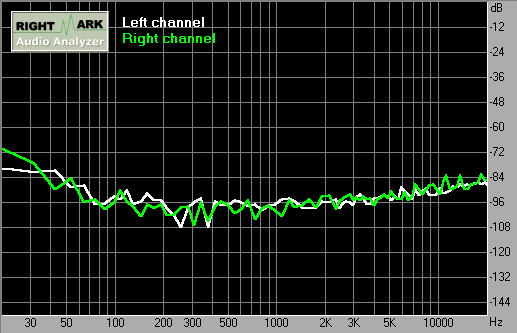

Stereo crosstalk

Spectrum graph


Parameter L <- R L -> R
Crosstalk at 100 Hz, dB:-93.5-95.5
Crosstalk at 1 kHz, dB:-96.6-100.5
Crosstalk at 10 kHz, dB:-90.7-90.8

This report was generated by RightMark Audio Analyzer v.3.1
