RightMark Audio Analyzer testTesting chain: Line Out - Line In external loop |
| Frequency response (from 40 Hz to 15 kHz), dB: | -0.01, +0.07 | Excellent |
| Noise level, dB (A): | -97.0 | Excellent |
| Dynamic range, dB (A): | 92.8 | Very good |
| THD, %: | 0.002 | Excellent |
| IMD, %: | 0.006 | Excellent |
| Stereo crosstalk, dB: | -97.7 | Excellent |
| Frequency range | Response |
| From 20 Hz to 20 kHz, dB | -0.08, +0.07 |
| From 40 Hz to 15 kHz, dB | -0.01, +0.07 |
| Parameter | Left | Right |
| RMS power, dB: | -95.1 | -95.2 |
| RMS power (A-weighted), dB: | -97.1 | -97.0 |
| Peak level, dB FS: | -82.2 | -82.3 |
| DC offset, %: | 0.00 | 0.00 |

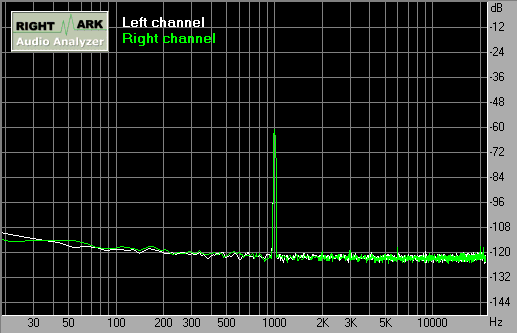

| Parameter | Left | Right |
| Dynamic range, dB: | +91.2 | +91.4 |
| Dynamic range (A-weighted), dB: | +92.8 | +93.1 |
| DC offset, %: | 0.00 | 0.00 |

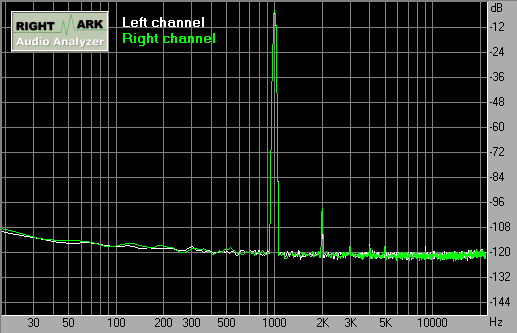

| Parameter | Left | Right |
| THD, %: | 0.001 | 0.002 |
| THD + Noise, %: | 0.005 | 0.005 |
| THD + Noise (A-weighted), %: | 0.004 | 0.004 |
| Parameter | Left | Right |
| IMD + Noise, %: | 0.007 | 0.007 |
| THD + Noise (A-weighted), %: | 0.006 | 0.006 |

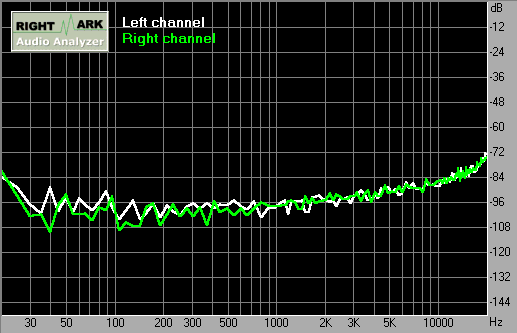

| Parameter | L <- R | L -> R |
| Crosstalk at 100 Hz, dB: | -99.9 | -96.8 |
| Crosstalk at 1 kHz, dB: | -98.3 | -97.7 |
| Crosstalk at 10 kHz, dB: | -88.4 | -86.0 |
