RightMark Audio Analyzer testTesting chain: Audigy Front Out - WT2496 Line In |
| Frequency response (from 40 Hz to 15 kHz), dB: | -5.00, +0.00 | Poor |
| Noise level, dB (A): | -89.7 | Good |
| Dynamic range, dB (A): | 87.3 | Good |
| THD, %: | 0.046 | Good |
| IMD, %: | 0.043 | Good |
| Stereo crosstalk, dB: | -82.2 | Very good |

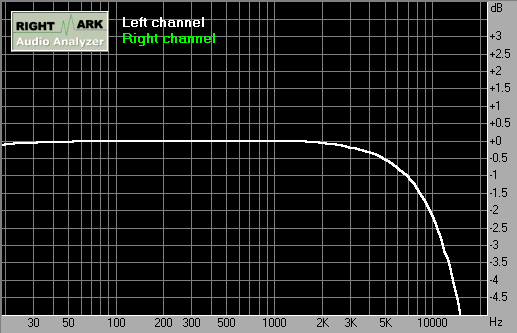

| Frequency range | Response |
| From 20 Hz to 20 kHz, dB | -9.41, +0.00 |
| From 40 Hz to 15 kHz, dB | -5.00, +0.00 |
| Parameter | Left | Right |
| RMS power, dB: | -82.5 | -82.2 |
| RMS power (A-weighted), dB: | -89.7 | -89.7 |
| Peak level, dB FS: | -68.6 | -68.0 |
| DC offset, %: | 0.00 | 0.00 |

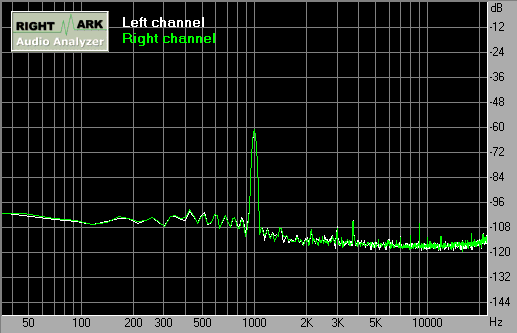

| Parameter | Left | Right |
| Dynamic range, dB: | +80.0 | +79.9 |
| Dynamic range (A-weighted), dB: | +87.3 | +87.3 |
| DC offset, %: | 0.00 | 0.00 |

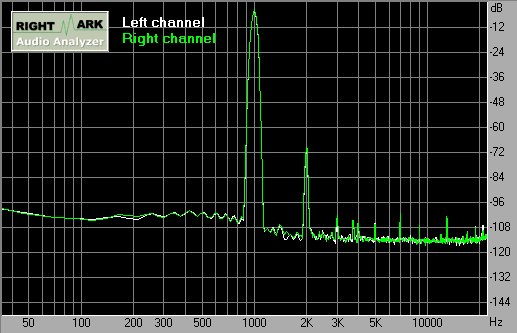

| Parameter | Left | Right |
| THD, %: | 0.042 | 0.046 |
| THD + Noise, %: | 0.068 | 0.072 |
| THD + Noise (A-weighted), %: | 0.059 | 0.066 |
| Parameter | Left | Right |
| IMD + Noise, %: | 0.174 | 0.174 |
| THD + Noise (A-weighted), %: | 0.043 | 0.042 |

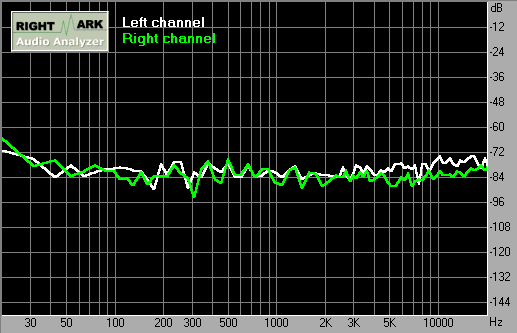

| Parameter | L <- R | L -> R |
| Crosstalk at 100 Hz, dB: | -79.6 | -81.5 |
| Crosstalk at 1 kHz, dB: | -82.2 | -86.6 |
| Crosstalk at 10 kHz, dB: | -75.0 | -82.5 |
