RightMark Audio Analyzer testTesting chain: Audigy Rear Out - WT2496 Line In |

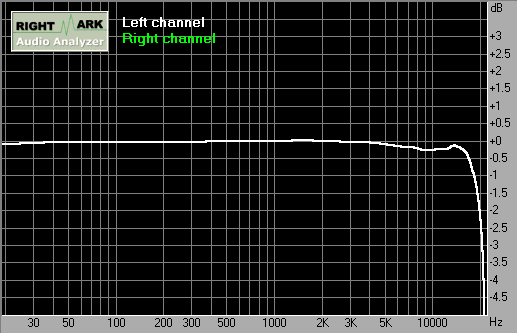

| Frequency response (from 40 Hz to 15 kHz), dB: | -0.27, +0.01 | Very good |

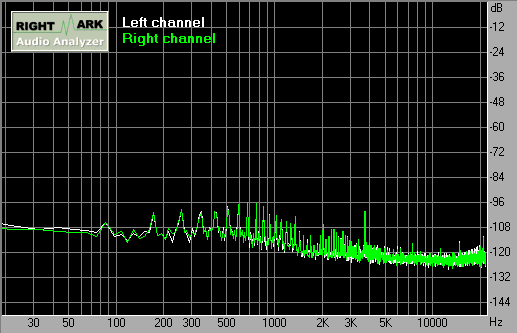

| Noise level, dB (A): | -87.4 | Good |

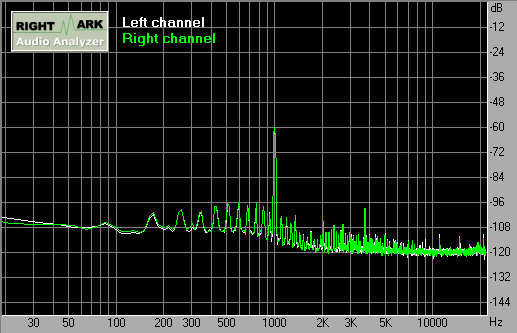

| Dynamic range, dB (A): | 84.9 | Good |

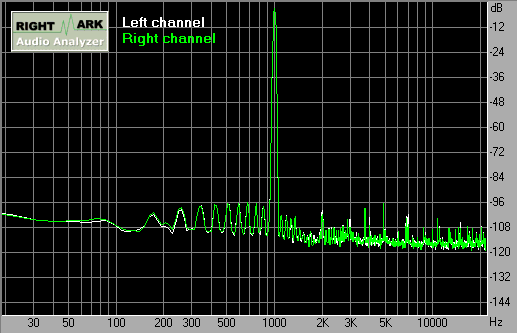

| THD, %: | 0.002 | Excellent |

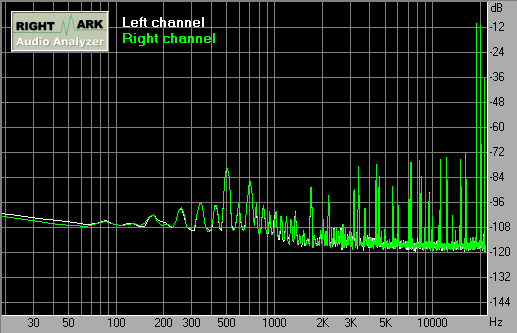

| IMD, %: | 1.190 | Poor |
| Stereo crosstalk, dB: | -85.1 | Excellent |
| Frequency range | Response |
| From 20 Hz to 20 kHz, dB | -2.08, +0.01 |
| From 40 Hz to 15 kHz, dB | -0.27, +0.01 |
| Parameter | Left | Right |
| RMS power, dB: | -86.4 | -86.4 |
| RMS power (A-weighted), dB: | -87.4 | -87.4 |
| Peak level, dB FS: | -70.7 | -69.8 |
| DC offset, %: | 0.00 | 0.00 |
| Parameter | Left | Right |
| Dynamic range, dB: | +84.0 | +83.9 |
| Dynamic range (A-weighted), dB: | +84.9 | +84.9 |
| DC offset, %: | 0.00 | 0.00 |
| Parameter | Left | Right |
| THD, %: | 0.002 | 0.002 |
| THD + Noise, %: | 0.012 | 0.012 |
| THD + Noise (A-weighted), %: | 0.011 | 0.011 |
| Parameter | Left | Right |
| IMD + Noise, %: | 3.671 | 3.672 |
| THD + Noise (A-weighted), %: | 1.189 | 1.190 |
| Parameter | L <- R | L -> R |
| Crosstalk at 100 Hz, dB: | -96.3 | -88.8 |
| Crosstalk at 1 kHz, dB: | -85.1 | -87.3 |
| Crosstalk at 10 kHz, dB: | -78.1 | -81.0 |
