  • Interface: Enhanced IDE (ATAPI).
  • Formats supported:
    • CD-ROM : CD-ROM, CD-ROM XA, CD-DA, CD-I, CD-I Bridge, CD-MIDI, CD-G, CD-RW, CD-R, CD-TEXT Multisession (Photo-CD,CD-EXTRA)
  • Reads discs of 8 and 12 cm in diameter
  • Data buffer: 256 Kbyte
  • Data rate:
    • DVD Transfer Rate 16X (21,600KByte/s)
    • CD Transfer Rate 48X (8,212KByte/s )
    • DVD-RAM Transfer rate 2X (2,704KByte/s)
  • Access time:
    • DVD 105 ms
    • CD 90 ms
    • DVD-RAM 200ms
  • Installation: horizontal and vertical
  • Weight: 1 kg

The drive came in the OEM package. The front panel has only a Load/Eject button. This drive is able to read DVD-RAM Type2 discs.

Test results

Quality of operation with CDs

CD WinBench 99

  • CDWinMark99 - 1250
  • CD-ROM Transfer Rate
    • Inside - 2850 KBytes/s
    • Outside - 6620 KBytes/s
  • CPU utilization - 9.12%
  • CD-ROM Access Time - 96.6 ms

Nero CD-Speed

The following information on the drive is obtained with the Drive check utility:

  • Vendor : MATSHITA
  • Product : DVD-ROM SR-8587
  • Firmware version : 5Z37
  • Buffer size : 256 KBytes
  • Maximum read speed : 8448 KBytes/sec (48 X)
  • CDDA accurate : yes
  • C2 pointers : yes
  • Speed settings : 8-20-32-40-48 X
  • Read RAW mode : yes

According to these data the drive supports all functions necessary for accurate capture of audio tracks.

Testing of the drive using a standard CD

Average Speed 34.20x
Start Speed 20.24x
End Speed 45.53x
Random Seek 78 ms
1/3 Seek 86 ms
Full Seek 126 ms
Reading type CAV
CPU usage 1x 1%
Accurate stream Yes
DAE quality Score 10
SpinUp Time 1.79 sec
SpinDown Time 0.34 sec
Disc Recognition Time 10.99 sec

CD-ROM Drive Analyzer

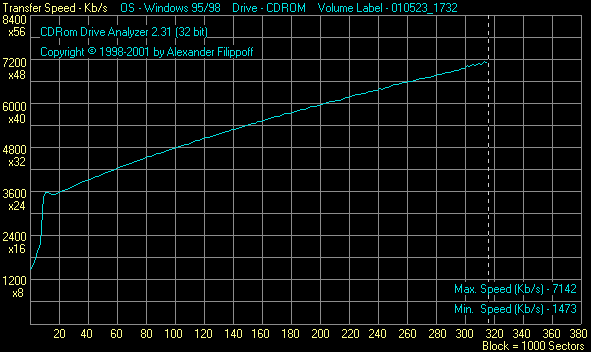

CD-R reading

CD-RW reading

Damaged CD reading

Reading of CD-ROM discs is uncertain, especially if discs are of poor quality. The speed was jumping much. And this affected the reading time.

Advanced DAE Quality(Nero CD-Speed)

Offset 292 bytes (73) samples)
Sequential Read Test Average Speed: 15,78 X
Data Errors: 0
Sync Errors: 0
Harmonica Read Test Average Access Time: 162 ms
Data Errors: 0
Sync Errors: 0
Total Data Errors: 0
Total Sync Errors: 0
Quality Score: 100.0
On The Fly Copying Simulation Copying at 1 X
Copying at 2 X
Copying at 4 X
Copying at 6 X
Copying at 8 X
too slow
Copying at 10 X
too slow
Copying at 12 X
too slow
Copying at 16 X
too slow
CD Text Drive is capable of reading CD Text information
Subchannel Data Test 1
Track (01): 01
Relative position (01:05.00): 01:05.00
Absolute position (01:07.00): 01:07.00
Index (5): 5

Test 2
Track (17): 17
Relative position (01:33.00): 01:33.00
Absolute position (33:35.00): 33:35.00
Index (1): 1

Test 3
Track (36): 36
Relative position (00:00.00): 00:00.00
Absolute position (70:02.00): 70:02.00
Index (1): 1

Leadin Drive cannot read data from the Leadin
Leadout Drive cannot read data from the Leadout

Soundtrack extraction from audio CDs (CDDAE 99)

Licensed CD Pirated CD
Average extraction speed 16.9x 8.5x
Total errors 0.00% 0.00%

Direct copying of data from a 780 MBytes CD-R onto a hard disc.

The drive read the 780 MBytes disc very good. The time of full copying is 12 min. 55 sec. The reading was so long as the drive read the test disc quite uncertainly.

Quality of operation with DVD discs

Nero DVD Speed

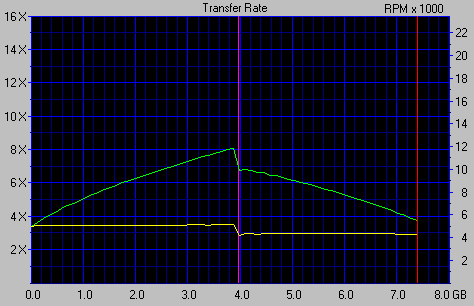

Testing with a two-layer DVD disc

Average Speed 5.78x
Start Speed 3.41x
End Speed 3.37x
Random Seek 98 ms
1/3 Seek 112 ms
Full Seek 178 ms
Reading type CAV
CPU usage 1x 14%
SpinUp Time 1.97 sec
SpinDown Time 0.04 sec
Layer Change Time 526 ms
Disc Recognition Time 12.11 sec

DVD-Video playback with the Cyberlink PowerDVD 2.55

The DVD-Video was played without any problems; no artifacts were noticed. Changing of the layer didn't affect the quality of reproduction.

Noise characteristics.

  • Tray - 6/10
  • CD
    • Seek - 6/10
    • Total noise - 5/10
  • DVD
    • Seek - 6/10
    • Total noise - 6/10

Both at the maximum and reduced speed the noise level was quite high. Speed reduction is possible only with the help of external programs (CDBremse, Nero DriveSpeed): 48x-40x-32x-20x-8x.


When working with badly balanced CDs the drive didn't shine. It vibrated quite much. However, vibration didn't prevent from reading discs at a high speed.

Thermal conditions.

There are no any complains about its thermal conditions. The data were read after an intensive 2-hour operation:

T inside the case - 35°C
T of the upper surface - 38°C
T of the lower surface - 39°C

Possibility to make the drive region free (RPC-1).

According to www.firmware.fr.st, you can change the firmware version to make the drive region free.
