BTC BDV-316B

By Roman Shelepov

E-IDE/ATAPI interface.
Formats supported:

DVD-ROM : DVD-ROM, DVD-Video
CD-ROM : CD-ROM, CD-ROM XA, CD-DA, CD-I, CD-RW, CD-R, CD-TEXT Multisession (Photo-CD,CD-EXTRA)

Reads discs of 8 and 12 cm in diameter
Data buffer: 512 KBytes
Data rate:

DVD Transfer Rate 16X (21,632 KByte/s) Single Layer
DVD Transfer Rate 10X (13,520 KByte/s) Double Layer
CD Transfer Rate 48X (7,200 KByte/s )

Access time:

DVD 105 ms
CD 95 ms

Installation: horizontal and vertical
Weight: 1 kg
Error-free running time

MTBF 100,000 Power On hours (POH)
POH at the working cycle not more than 25%

Accessories: user manual, fastening bolts, CD audio cable, a diskette with drivers, a CD with drivers and a soft-DVD player (WinDVD). The front panel has two buttons for Audio CD playback - Open/Close/Stop and Play/Skip. The drive is shorter by 25 mm than a usual one (176 mm against 198-203 mm). It solves a problem of small cases like minitower which have 4 - 6 5" places for drives, though there are actually two for full-size ones (203 mm). The front panel also has a rubber layer which eliminates noise and protects from dust.

Test results

Quality of operation with CDs

CDWinBench 99

CDWinMark99 - 1810
CD-ROM Transfer Rate

Inside - 3370 KBytes/s
Outside - 6500 KBytes/s

CPU utilization - 9.19%
CD-ROM Access Time - 86.1 ms

Nero CD-Speed

The following information on the drive is obtained with the Drive check utility:

Vendor : DVD-16X
Product : BDV316B
Firmware version : 0.47
Buffer size : 512 KBytes
Maximum read speed : 8448 KBytes/sec (48 X)
CDDA accurate : yes
C2 pointers : yes
Speed settings : 4-8-16-20-24-28-32-40-48 X
Read RAW mode : yes

According to these data the drive supports all functions necessary for accurate capture of audio tracks and has a wide range of speeds.

Testing of the drive using a standard CD

	BTC BDV 316B
Average Speed	33.64x
Start Speed	19.51x
End Speed	44.60x
Random Seek	95 ms
1/3 Seek	119 ms
Full Seek	144 ms
Reading type	CAV
CPU usage 1x	0%
Accurate stream	Yes
DAE quality Score	10
SpinUp Time	2.99 sec
SpinDown Time	3.90 sec
Disc Recognition Time	6.90 sec

CD-ROM Drive Analyzer

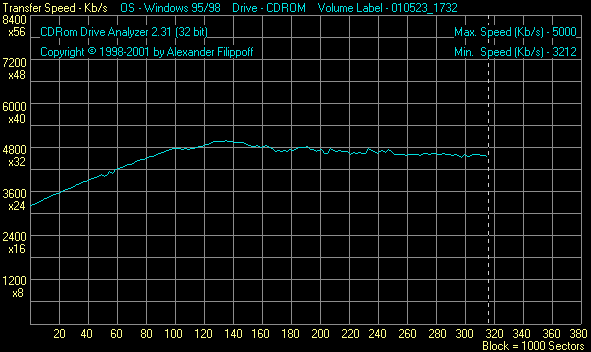

CD-R reading

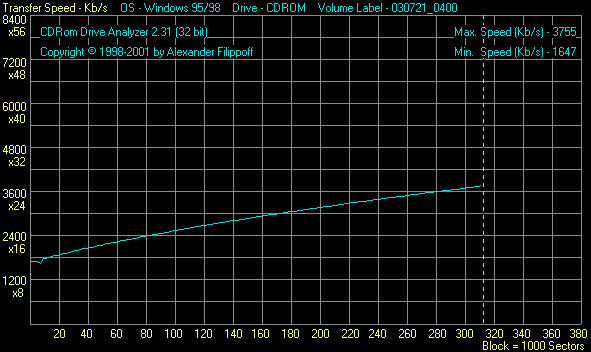

CD-RW reading

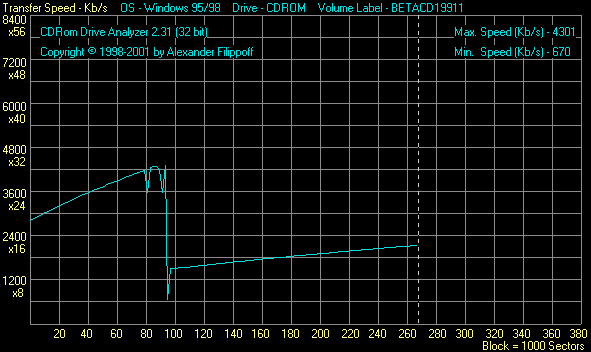

Damaged CD reading

Advanced DAE Quality(Nero CD-Speed)

Offset	2256 bytes (564 samples)
Sequential Read Test	Average Speed: 21.69 X Data Errors: 0 Sync Errors: 0
Harmonica Read Test	Average Access Time: 123 ms Data Errors: 0 Sync Errors: 0 Total Data Errors: 0 Total Sync Errors: 0 Quality Score: 100.0
On The Fly Copying Simulation	Copying at 1 X OK Copying at 2 X OK Copying at 4 X OK Copying at 6 X OK Copying at 8 X OK Copying at 10 X OK Copying at 12 X OK Copying at 16 X OK
CD Text	Drive is capable of reading CD Text information
Subchannel Data	Test 1 Track (01): 01 Relative position (01:05.00): 01:05.40 -> incorrect! Absolute position (01:07.00): 01:07.40 -> incorrect! Index (5): 5 Test 2 Track (17): 23 incorrect! Relative position (01:33.00): 01:51.40 -> incorrect! Absolute position (33:35.00): 51:53.40 -> incorrect! Index (1): 1 Test 3 Track (36): 53 incorrect! Relative position (00:00.00): 02:30.40 -> incorrect! Absolute position (70:02.00): 112:02.40 -> incorrect! Index (1): 1
Leadin	Drive cannot read data from the Leadin
Leadout	Drive cannot read data from the Leadout

Soundtrack extraction from audio CDs (CDDAE 99)

	Licensed CD	Pirated CD
Average extraction speed	21.3x	20.7x
Total errors	0.00%	0.00%

Direct copying of data from a 780 MBytes CD-R onto a hard disc.

The drive read the 780 MBytes disc very good, though when reading the last files there was an error, but when I pressed Continue the copying was finished successfully. The time of full copying is 5 min. 43 sec.

Quality of operation with DVD discs

Nero DVD Speed

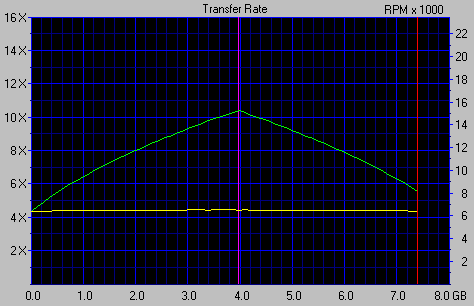

Testing with a two-layer DVD disc

	BTC BDV 316B
Average Speed	7.94x
Start Speed	4.33x
End Speed	5.57x
Random Seek	102 ms
1/3 Seek	110 ms
Full Seek	171 ms
Reading type	CAV
CPU usage 1x	12%
SpinUp Time	2.97 sec
SpinDown Time	3.97 sec
Layer Change Time	75 ms
Disc Recognition Time	9.93 sec

DVD-Video playback with the Cyberlink PowerDVD 2.55

The DVD-Video was played without any problems; no artifacts were noticed. Changing of the layer didn't affect the quality of reproduction.

Noise characteristics.

Tray - 7/10
CD

Seek - 6/10
Total noise - 6/10

Seek - 7/10
Total noise - 7/10

At the maximum speed the noise level was acceptable, though it was necessary to reduce a read speed in case of some discs. Speed reduction is possible only with the help of external programs (CDBremse, Nero DriveSpeed): 4-8-16-20-24-28-32-40-48 X.

Vibration

When working with badly balanced CDs the drive didn't shine. It vibrated though not much. However, vibration didn't prevent from reading discs at a high speed.

Thermal conditions

There are no any complains about its thermal conditions. The data were read after an intensive 2-hour operation:

T inside the case - 35°C
T of the upper surface - 37°C
T of the lower surface - 39°C

Possibility to make the drive region free (RPC-1).

According to www.firmware.fr.st, you can change the firmware version to make the drive region free.
