  • Interface: Enhanced IDE (ATAPI).
  • Formats supported:
    • DVD-ROM : DVD-ROM, DVD-Video
    • CD-ROM : CD-DA, CD-ROM (mode 1), CD-ROM XA (mode 2 form 1 and form 2), CD-ROM XA, Mixed-Mode CD, CD-I, CD-I Ready, CD-Bridge, Photo CD (single and multi session), CD Extra (CD-Plus), CD Text, Video CD, I-Trax CD, UDF, Bootable CD
  • Reads discs of 8 and 12 cm in diameter
  • Data buffer: 512 KBytes
  • Data rate:
    • DVD Transfer Rate 16X (22160 KBytes/s)
    • CD Transfer Rate 40X (6840 KBytes/s )
  • Access time:
    • DVD 115 ms
    • CD 100 ms
  • Error-free running time:
    • MTBF 100,000 Power On hours (POH)
    • at the working cycle not more than 20%
  • Installation: horizontal and vertical
  • Weight: 0.96 kg

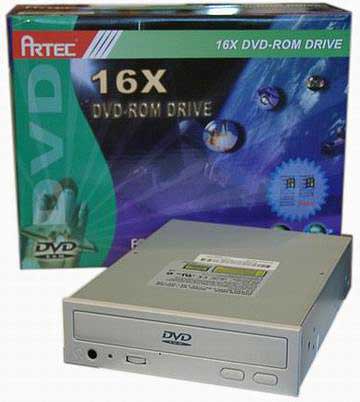

Accessories: user manual, fastening bolts, CD audio cable, CD with drivers and a soft-DVD player. The front panel has two buttons for Audio CD playback - Open/Close/Stop and Play/Skip.

Test results

Quality of operation with CDs

CDWinBench 99

  • CDWinMark99 - 1750
  • CD-ROM Transfer Rate
    • Inside - 3000 KBytes/s
    • Outside - 5800 KBytes/s
  • CPU utilization - 9.52%
  • CD-ROM Access Time - 80.5 ms

Nero CD-Speed

The following information on the drive is obtained with the Drive check utility:

  • Vendor : IDE
  • Product : DVD-ROM 16X
  • Firmware version : 1.06
  • Buffer size : 512 KBytes
  • Maximum read speed : 7744 KBytes/sec (44 X)
  • CDDA accurate : yes
  • C2 pointers : no
  • Speed settings : 4-44 X
  • Read RAW mode : yes

The drive doesn't support C2 error correction, therefore, it can't detect and correct group errors. Usually it is used by programs of audio track extraction. Besides, it's the first time I see a drive with the maximum speed of 44x.

Testing of the drive using a standard CD

Average Speed 24.18x
Start Speed 17.30x
End Speed 7.65x
Random Seek 82 ms
1/3 Seek 92 ms
Full Seek 129 ms
Reading type P-CAV
CPU usage 1x 1%
Accurate stream Yes
DAE quality Score 10
SpinUp Time 6.40 sec
SpinDown Time 4.02 sec
Disc Recognition Time 9.40 sec

CD-ROM Drive Analyzer

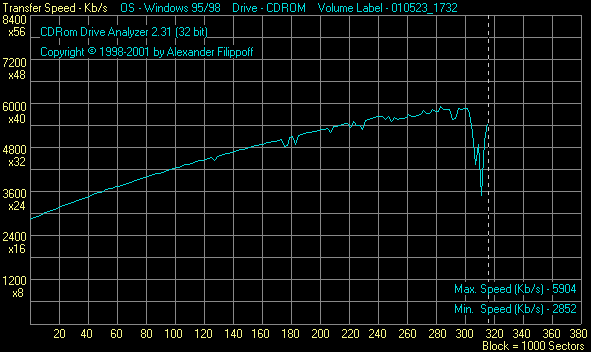

CD-R reading

CD-RW reading

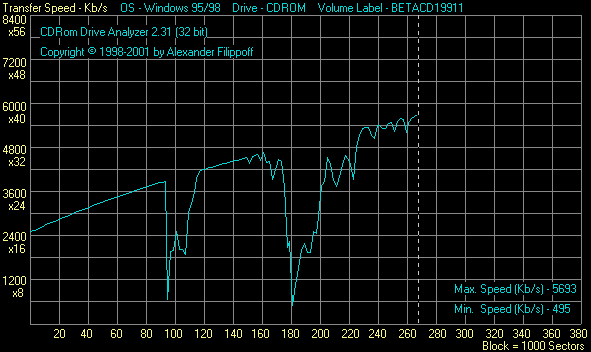

Damaged CD reading

The doesn't read CD-ROM discs stably and it doesn't distinguish CD and CD-R discs.

Advanced DAE Quality(Nero CD-Speed)

Offset 2136 bytes (534) samples)
Sequential Read Test Average Speed: 15,53 X
Data Errors: 0
Sync Errors: 0
Harmonica Read Test Average Access Time: 121 ms
Data Errors: 0
Sync Errors: 0
Total Data Errors: 0
Total Sync Errors: 0
Quality Score: 100.0
On The Fly Copying Simulation Copying at 1 X
Copying at 2 X
Copying at 4 X
Copying at 6 X
Copying at 8 X
Copying at 10 X
too slow
Copying at 12 X
too slow
Copying at 16 X
too slow
CD Text Drive is capable of reading CD Text information
Subchannel Data Test 1
Track (01): 01
Relative position (01:05.00): 01:05.00
Absolute position (01:07.00): 01:07.00
Index (5): 5

Test 2
Track (17): 17
Relative position (01:33.00): 01:33.00
Absolute position (33:35.00): 33:35.00
Index (1): 1

Test 3
Track (36): 36
Relative position (00:00.00): 00:00.00
Absolute position (70:02.00): 70:02.00
Index (1): 1

Leadin Drive can read max. 98 sectors (-00:01.23) from the Leadin
Leadout Drive cannot read data from the Leadout

Soundtrack extraction from audio CDs (CDDAE 99)

Licensed CD Pirated CD
Average extraction speed 15.9x 15.4x
Total errors 0.00% 0.00%

Direct copying of data from a 780 MBytes CD-R onto a hard disc.

The drive read the 780 MBytes disc very good. The time of full copying is 4 min. 32 sec.

Quality of operation with DVD discs

Nero DVD Speed

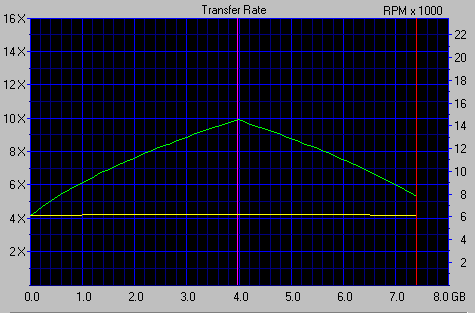

Testing with a two-layer DVD disc

Average Speed 7.57x
Start Speed 4.15x
End Speed 5.31x
Random Seek 97 ms
1/3 Seek 106 ms
Full Seek 143 ms
Reading type CAV
CPU usage 1x 13%
SpinUp Time 2.07 sec
SpinDown Time 3.63 sec
Layer Change Time 70 ms
Disc Recognition Time 14.19 sec

DVD-Video playback with the Cyberlink PowerDVD 2.55

The DVD-Video was played without any problems; no artifacts were noticed. When a layer was changing DVD quality didn't get worse, although the layer changing time is quite big.

Noise characteristics

  • Tray - 6/10
  • CD
    • Seek - 5/10
    • Total noise - 5/10
  • DVD
    • Seek - 6/10
    • Total noise - 6/10

Both at the maximum and reduced speeds the noise level wasn't acceptable. It is possible to reduce a speed of operation with CDs using external programs (CDBremse, Nero DriveSpeed): 4-44x.


When the drive worked with badly balanced CDs it didn't shine. The vibration was quite noticeable. However, the disc was read at a high speed.

Thermal conditions

There are no any complains about its thermal conditions. The data were read after an intensive 2-hour operation:

T inside the case - 36°C
T of the upper surface - 39°C
T of the lower surface - 42°C

Possibility to make the drive region free (RPC-1).

According to www.firmware.fr.st, you can change the firmware version to make the drive region free. But before changing it make sure your current firmware version is lower than 2.xx. Starting from v2.xx these drives have their hardware part changed.
