Specification of the ASUSTeK CRW2410S: |
Firmware version |
6.36 |
Recording modes |
Disc-At-Once, Track-At-Once, Session-At-Once, MultiSession, Packet
Writing |
Recording formats |
CD-DA, CD-ROM, CD-ROM XA, Photo CD, CD-Text, CD+G, CD-I, CD-Extra,
Video CD |
Read/write support in Raw-mode |
RAW-DAO - supported
RAW-DAO Write Simulation - supported
CD+G RAW-DAO - supported
RAW-SAO - supported
RAW-SAO Write Simulation - supported |
Average access time |
125 ms |
CD-R recording |
2x, 4x, 8x, 12x (CLV)
16x, 24x (Zone-CLV) |
CD-RW recording |
2x, 4x, 8x, 10x |
Buffer underrun error prevention technology |
BURN-Proof |
Interface |
PIO Mode4 |
Reading |
40x max (6000 KBytes/s) |
Buffer size |
2048 KBytes |
Production date |
October 2001 |
Manufacturer |
China |
Price as tested |
$160 |

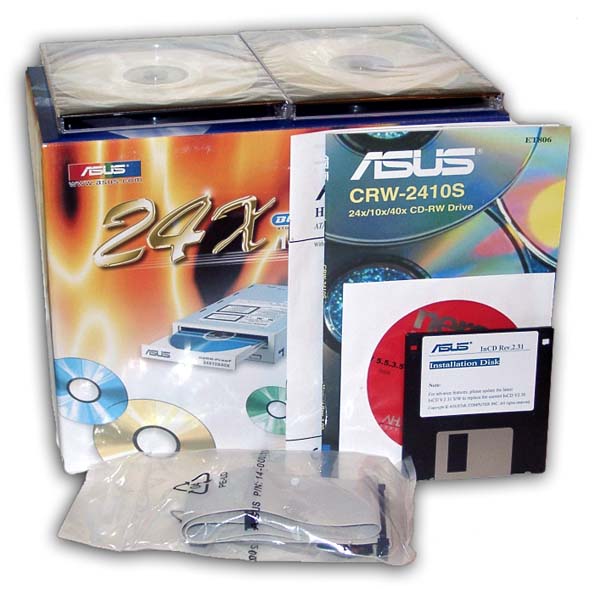

The drive ships in a Retail package.
The box contains:
- In-depth user's manual in English and Japanese;
- Installation manual in 11 languages;
- CD with software for disc recording: Nero Burning Rom 5.5.3.5, InCD 2.29
from Ahead Software
- One 24x CD-R and one High Speed CD-RW (4x-10x);
- 4 screws;
- Analog cable for connecting the drive to a sound card;
- IDE cable.
|
|
ATIP: 97m
15s 17f
Disc Manufacturer: Ritek
Co.
Reflective layer: Dye (Short
strategy; e.g. Phthalocyanine)
Media type: CD-Recordable
Recording Speeds: min. unknown
- max. unknown
nominal Capacity: 702.83
MBytes
(79m 59s 74f / LBA: 359849) |
ATIP: 97m
27s 10f
Disc Manufacturer: Plasmon
Data Systems, Ltd.
Reflective layer: Phase change
Media type: CD-ReWritable
Recording Speeds: min. 4X
- max. 8X
nominal Capacity: 656.10
MBytes
(74m 41s 00f / LBA: 335925) |
The technical characteristics and the appearance of the CRW2410S are
very close to the Sanyo BP-1500 recorder, on which the Asus's drive is
based on. That is why it is not surprising that the firmware versions of
both drives are identical.

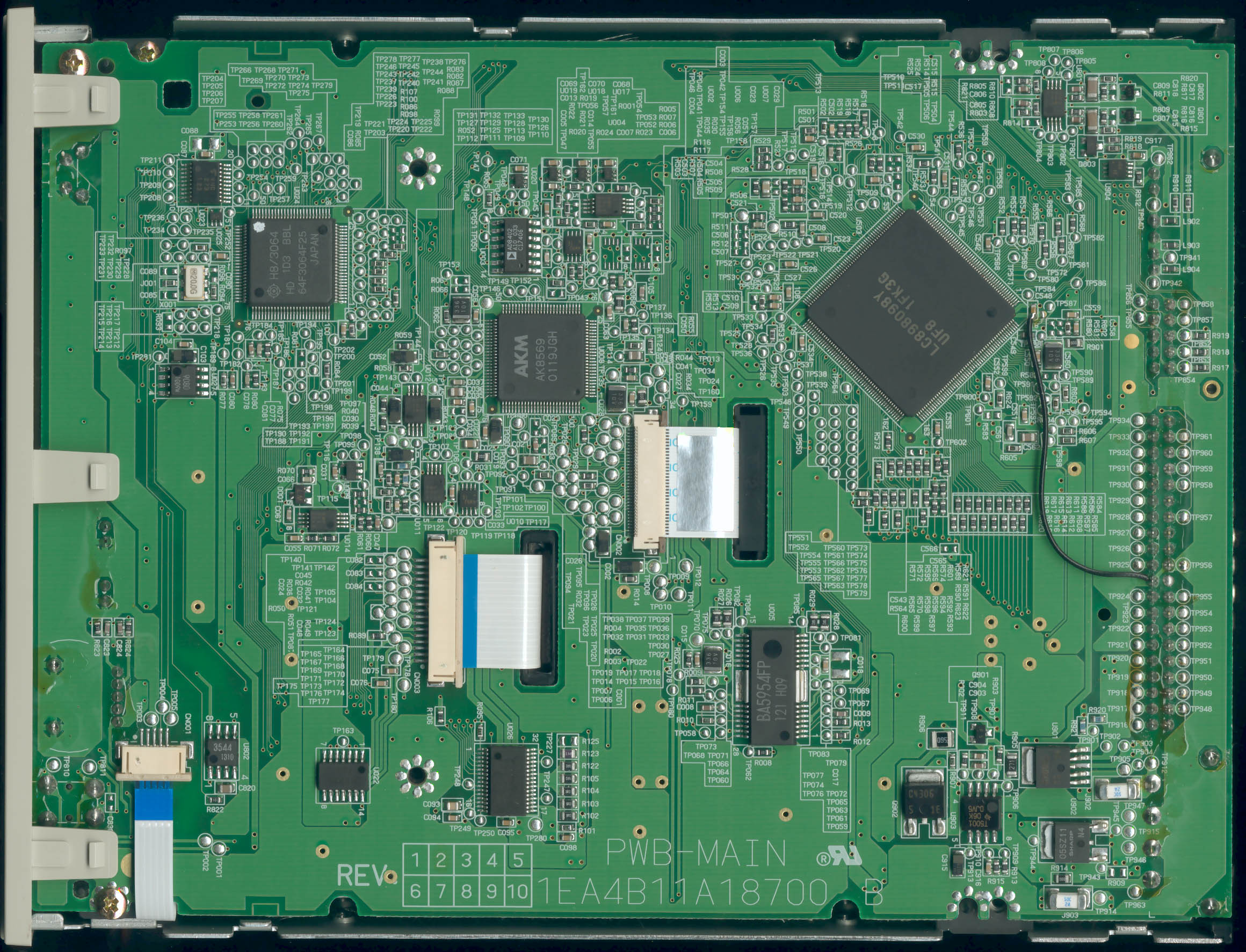

Below you can see a chip from Sanyo (LC898098Y UF8 1FK3G).

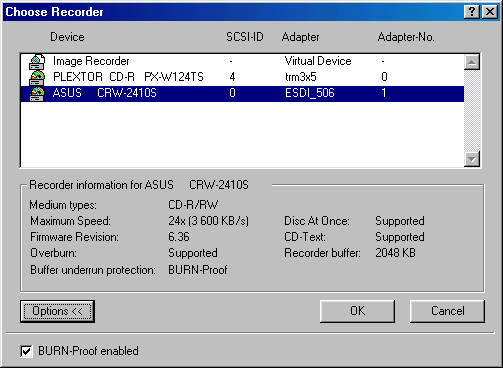

Here is what the Nero says you about the drive:

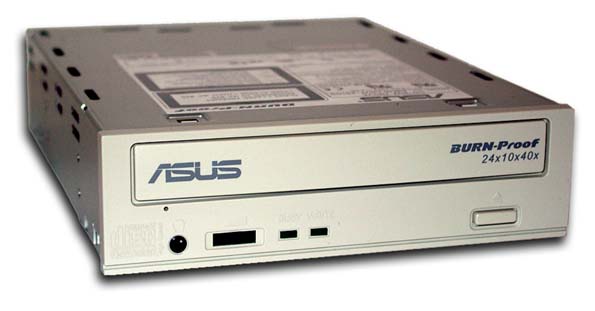

The design is unsophisticated:
A traditional rectangular tray with roundish corners, a little recessed
headphones jack, a mechanical volume control, a roundish tray button, two
one-color LEDs and an emergency ejection hole. There is also a digital-out
on the rear panel.
When recording at the highest speed the buffer lacks for stability,
and jumps from 80 to 97% for the CRW2410S are normal.
The drive whistles a little during operation, though no noise
or vibration can be noticed.
