AOpen CRW2440



Specification of the AOpen CRW2440:
Firmware version 1.00
Recording modes Disc-At-Once, Track-At-Once, Session-At-Once, MultiSession, Packet Writing
Recording formats CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-I, CD-Bridge, Photo-CD, Video CD, Hybrid CD
Read/write support in Raw-mode RAW-DAO - supported
RAW-DAO Write Simulation - supported
CD+G RAW-DAO - supported
RAW-SAO - supported
RAW-SAO Write Simulation - supported
Average access time 120 mc
CD-R recording 4x, 8x, 16x (CLV)
20x, 24x (Zone-CLV)
CD-RW recording 2x, 4x, 10x
Buffer underrun error prevention technology JustLink
Optimal write speed and laser power determination technology JustSpeed
Interface Ultra DMA 33
Reading 40x max (6000 KBytes/s)
Buffer size 2048 KBytes
Production date Nobember 2001
Manufacturer Taiwan
Price as tested N/A

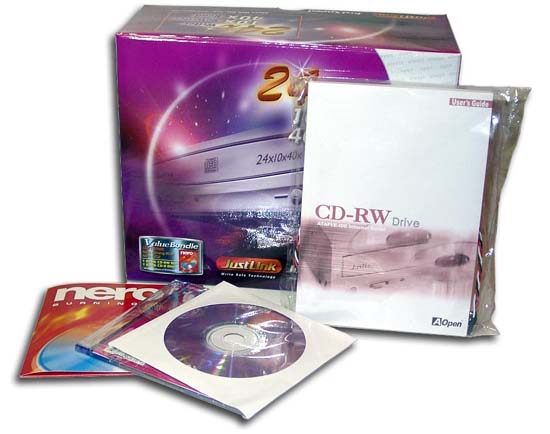

The drive ships in a Retail package.

The box contains:

  • Installation guide
  • CD with Nero Burning Rom 5.5.3.5 from Ahead Software (though it is written on the CD that the version is 5.0)
  • AOpen CD-R for high-speed recording and High Speed CD-RW 4x-10x
  • Analog cable for connecting the drive to a sound card.

ATIP: 97m 15s 17f
Disc Manufacturer: Ritek Co.
Reflective layer: Dye (Short strategy; e.g. Phthalocyanine)
Media type: CD-Recordable
Recording Speeds: min. unknown - max. unknown
nominal Capacity: 702.83 MBytes (79m 59s 73f / LBA: 359848)

ATIP: 97m 27s 10f
Disc Manufacturer: Plasmon Data Systems, Ltd.
Reflective layer: Phase change
Media type: CD-ReWritable
Recording Speeds: min. 4X max. 8X
nominal Capacity: 656.10 MBytes
(74m 41s 00f / LBA: 335925)

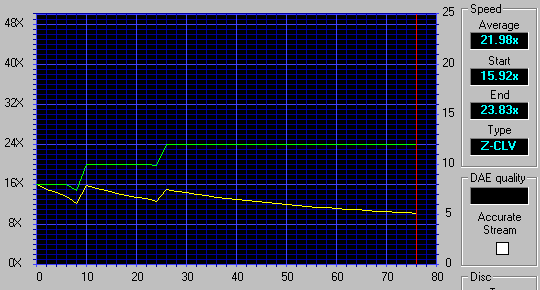

Character and method of recording:

Well, the set of accessories is quite scarce. Although it is not a problem to find screws and an IDE cable, I don't think AOpen saved much on them.

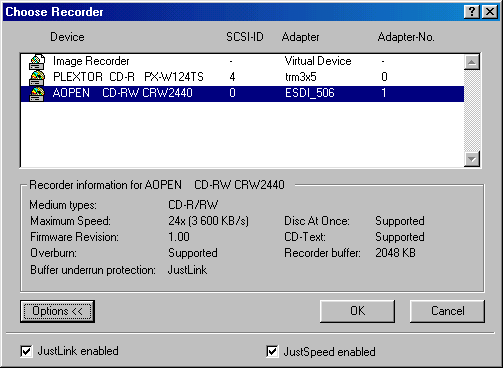

Here is what the Nero says you about the drive:

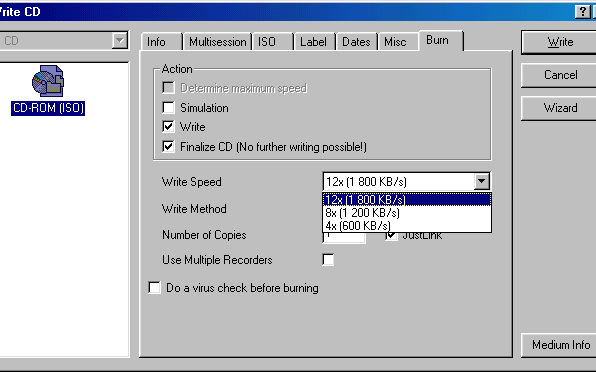

During the tests we found one interesting peculiarity which is typical of many CD-RW drives based on the Ricoh's chipset. The CRW2440 drive didn't want to record discs with ATIP 4M at a speed higher than 12x (although we used the new Mirex media of the maximum write speed of 24x).

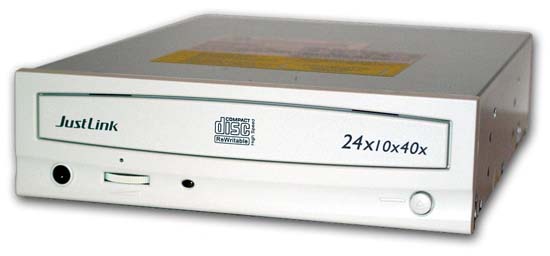

The design of the drive is very similar to the 20x model, as well as to the 16x one.

Like with the 20x model, AOpen didn't use the Ricoh's design and made its tray solid, without a door. As usual, it has a headphones jack, a mechanical volume control, one LED and an emergency ejection hole. The drive can be installed both in the vertical and horizontal positions.

On the back there is a special jumper that switches on the UltraDMA 33 mode (the PIO Mode 4 is a default one).

The drive makes quite much noise (or rather whistle) because of air which is constantly drawn through it. Discs ejected after intensive reading are rather warm. The spindown time is not low, that is why if whistle irritates you, you should find a special utility which allows reducing this time.
