JVC Develops 1.75-inch 8K4K D-ILA Device

Victor Company of Japan (JVC) announces a new addition to its lineup of proprietary D-ILA (Direct-Drive Image Light Amplifier) high-definition reflective liquid crystal devices for projectors. The newly developed 1.75-inch 8K4K D-ILA device has the world's largest number of pixels*1 and is able to display images of approximately 35 megapixels (8192 x 4320 pixels), the equivalent of more than 17 times the level of Full High-Definition. This means that a single display device can now produce Super Hi-Vision images and can display images with the highest number of pixels currently defined under international standards.

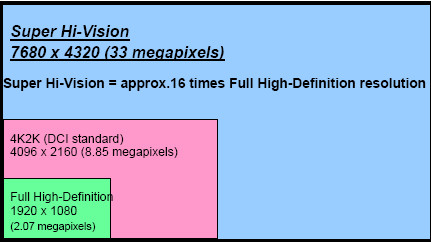

Super Hi-Vision is a TV broadcasting service currently under development at NHK; a single image has approximately 33 megapixels (7680 x 4320 pixels), with 60 frame/second sequential scanning and 22.2 multichannel sound. Image format is international standard ITU-R BT.1769, SMPTE 2036. Diagonal size is 1.67 inches at Super Hi-Vision standard pixel dimensions of 7680 x 4320.

Through the development of a new production process and new pixel structure for even finer pixels, JVC has now succeeded in developing the 1.75-inch 8K4K D-ILA device, the world's first device to achieve real Super Hi-Vision definition level. The new device has approximately 50% higher density in its ratio of area per pixel as compared to the 1.27-inch 4K2K D-ILA device, which was originally the world's smallest 4K device. Furthermore, the new device has achieved a video display of approximately 35 megapixels, the world's highest pixel counts, while continuing to provide the D-ILA series' characteristics such as "high-quality images without a distracting pixel structure", "high light availability", and "high contrast ratio".

Major specifications:

  • Device size: 1.75-inch diagonal
  • No. of pixels (H x V): 8192 x 4320 pixels
  • Pixel pitch: 4.8µm
  • Gap between pixels: 0.24µm
  • Aperture ratio: 90% or higher
  • Device contrast ratio: 20,000:1
  • Response time (tr + tf): 4.5ms
  • LC mode: Vertical Aligned LC
  • LC alignment film: Light stabilized inorganic alignment film

Features of New 1.75-inch 8K4K D-ILA Device:

  1. The 4.8µm pixel pitch fine pixel technology makes possible a device that is just 1.75 inches on the diagonal while achieving ultra-high-definition images of 35 megapixels (8192 x 4320 pixels), the highest pixel count in the world.
  2. The device resolution of 8192 horizontal x 4320 vertical dots is fully compatible with the Super Hi-Vision standard (7680 x 4320 pixels) being promoted by NHK as next-generation broadcast technology. Able to display ultra-high-definition images that are 17 times Full High-Definition and 4 times conventional 4K2K (the DCI 4K digital cinema standard), the new device can be used for a wide range of leading-edge ultra-high-definition imaging applications.
  3. The 0.24µm gap between pixels achieves a high aperture of 90% or higher surface devoted to image, while maintaining ultra-high resolution. In addition, technology adopted to reduce disorder caused by liquid crystal orientation has made it possible to limit extraneous light such as scattered and diffracted light from reflective surfaces, with the end result being a high contrast ratio of 20,000:1 for device contrast.
  4. By applying the same inorganic alignment layer used on previous D-ILA devices, the tradition of long life and high durability is successfully maintained.
  5. JVC's extensive production experience and technology made it possible to achieve both reduced liquid crystal cell gaps and high image uniformity, with the goal being to achieve quick liquid crystal response.
  6. It is possible to create a device driver for the ultra-high-bandwidth signal of 8K4K resolution by adopting a new package structure that accommodates the optimized internal driver design and the increased number of drive signal line inputs.

Source: Victor Company of Japan
