Tyan introduces i7221 board for servers on P4 LGA775 CPUs

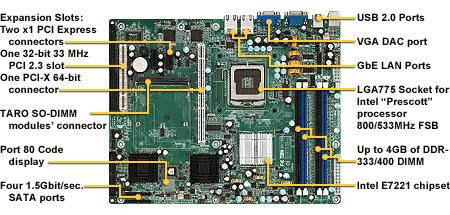

Tyan Computer introduced adaptable platform for 1-way rackmount servers Tomcat i7221 (S5150) based on Intel E7221 Copper River chipset (Pentium 4 Prescott LGA775).
- Chipset:
- E7221 Northbridge
- ICH6R Southbridge
- Dual-channel, DDR333/400 SDRAM DIMM, up to 4 GB of unbuffered ECC/non-ECC
- Expansion slots:
- PCI-X 64-bit 133/100/66 MHz
- Proprietary 200-pin SO-DIMM
- PCI Express, PCI-X, PCI
- 32-bit 33 MHz PCI 2.3 slot
- I/O
- HDD
- 4 x USB 2.0 in 2 headers
- 1 x COM header
- 1 x LPT header
- Backpanel I/O
- PS/2 keyboard and mouse
- 2 x USB 2.0
- 15-pin D-Sub
- 1 x COM
- 2 x RJ45 10/100/1000 Base-T
- Integrated PCI IDE (ICH6R)
- 1 channel for 2 devices
- Up to 4 x ATA-100/66/33 devices
- SATA (ICH6R)
- 4 x SATA host controllers
- RAID 0,1
- 8-bit graphics in MCH
- LAN (2 GbE), 2 x Broadcom BCM5751 PCI Express with ASF 2.0
- ATX form-factor, 304.8x243.8 mm
As far as I know "adaptable" means a set of expansion boards, including:
|
|
4-port TARO SATA board |
1-channel TARO RAID board |
|
2-channel TARO RAID board |
