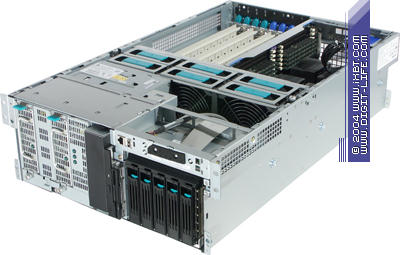

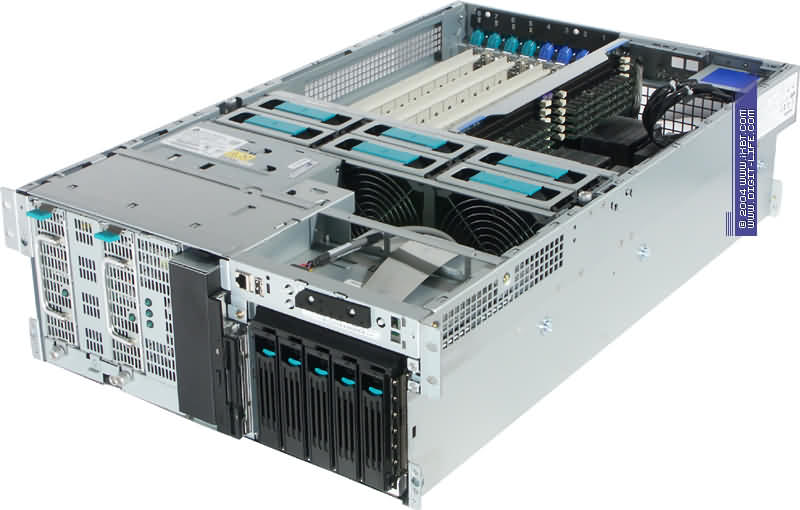

Intel SRSH4 based server in our lab
We are currently testing Intel SRSH4 based server. It features 4 x Xeon MP processors (2GHz, 1MB L3 cache, 400MHz FSB, 603-pin µPGA), SRCU42L RAID, 8GB of 1GB registered ECC PC2100 DIMM (KVR266X72RC25L/1G; CL=2.5), 5 x Fujitsu MAS3735NC HDDs (73.5GB; U320-SCA2; 8MB buffer, 3.5s average seek; 15,000 rpm).
Other features of SRSH4 are:
- ServerWorks Grand Champion HE chipset
- dual-channel Adaptec AIC7902 Ultra320 SCSI
- Intel PRO/100+ Server Network Connection, Intel PRO/1000 XT Network Connection
- 4MB ATI Rage XL VGA PCI (1600x1200)
- I/O:
- 1 x IDE
- National Semiconductor Super I/O PC87417
- 2 x asynchronous 9-pin Shell-232C
- 1 x IEEE1284
- CMOS765B and 82077AA-compatible HDD controller
- 3 x USB 1.0 (two in the back, one in the front)
- Expansion slots:
- 4 x PCI-X 64-bit/66MHz (hot-plug)
- 2 x PCI-X 64-bit/100MHz (non hot-plug)
- 2 x 32-bit/33MHz (non hot-plug)
