T2-P and T2-R: new barebones from ASUS

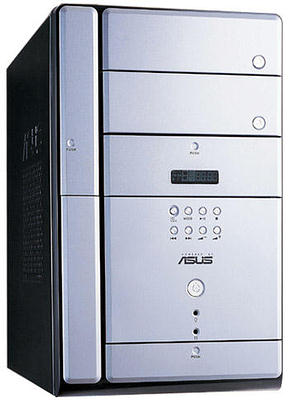

ASUSTeK published information on two new barebones, T2-P (Terminator 2-P) and T2-R. For your comfort below is the summary table, as the models´ appearance differs by Audio DJ, Audio CD buttons only (photos below show T2-P):
| |
T2-P |
T2-R |
| Size |
190x310x300mm |
| CPU |
Intel Socket 478 Northwood/Prescott, up to P4 3.4+ GHz |
| Memory |
PC1600/PC2100/PC2700/PC3200, up to 2GB, 2 x DIMM sockets |
PC1600/PC2100/PC2700, up to 2GB, 2 x DIMM sockets |
| Motherboard |
P4P8T (proprietary), Intel 865G / ICH 5, 800/533/400MHz FSB |
P4R8T proprietary), ATI RS300/IXP200, 800/533/400MHz FSB |
| Graphics |
Int. 64MB |
ATI Radeon 9100, DVI, 64MB |
| Expansion slots |
1 x PCI, 1 x AGP 8x |
| Audio |
6-channel AC97, S/PDIF, Audio DJ, Audio CD buttons, FM radio studio |
6-channel AC97, S/PDIF |
| LAN |
- 1 x 10/100Mbps
- 1 x Wireless 802.11b WiFi
|
1 x 10/100Mbps |
| Flash media reader |
Compact Flash Type I/II, Microdrive, Memory Stick, Memory Stick Pro, Secure Digital, MultiMedia Card, Smart Media Card |
- |
| Drive bays |
1 x 3.5 FDD, 1 x 3.5 HDD, 2 x 5.25 ODD |
1 x 3.5 FDD, 1 x 3.5 HDD, 2 x 5.25 ODD |
| Frontpanel interfaces |
- 2 x USB 2.0
- 2 x IEEE1394 (4pin, 6pin)
- S/PDIF-out, MIC, earphones
- Card reader
- Audio DJ buttons
- Power switch
- Power and HDD LEDs
|
- 2 x USB 2.0
- S/PDIF-out, MIC, earphones
- Power switch
- Power and HDD LEDs
|
| Backpanel interfaces |
- 4 x USB 2.0
- PS/2 keyboard and mouse
- VGA (D-Sub)
- Game / MIDI
- RJ-45 LAN (10/100 Mbps)
- Line-in/out, speakers out
- FM antenna
- 802.11b antenna
- GIGA LAN
- TV Tuner
|
- 2 x USB 2.0
- PS/2 keyboard and mouse
- VGA (D-Sub)
- Game / MIDI
- RJ-45 LAN (10/100 Mbps)
- Line-in/out, earphones out
- FM antenna
|
