The complete table of Soltek barebones

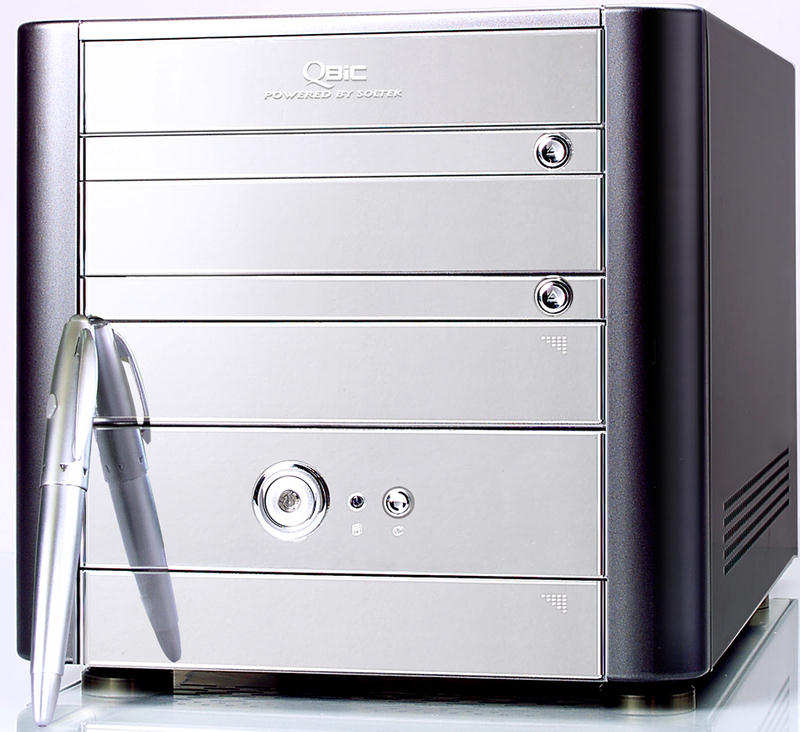

Taking the opportunity, I´d like to familiarize our readers with barebones developed by Soltek. Especially, in the light of company´s new Qbic EQ3402 model on Intel 845GE (SL-B8A-F motherboard).


Model EQ3401M (reflective panel) EQ3402M (reflective panel) EQ3702M (reflective panel)
Model EQ3401A (aluminium panel) EQ3402A (aluminium panel) EQ3702A (aluminium panel)
Size 21.5 x 33 x 20 cm
Body material Aluminium
Front panel 2 x USB, Mic-In, Line-Out (headphones), 1 x IEEE1394, 1 x SPDIF
Back panel
  • 1 x VGA
  • 2 x COM
  • 1 x LPT (optional)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 4 x USB 2.0/1.1
  • 1 x Fast Ethernet 1/10/100 LAN
  • 2 x IEEE1394a
  • 1 x Line In, Line Out, 1 x Mic In
  • 1 x VGA
  • 2 x COM
  • 1 x LPT (optional)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 4 x USB 2.0/1.1
  • 1 x Fast Ethernet 1/10/100 LAN
  • 1 x Line In, Line Out, 1 x Mic In
  • 2 x VGA
  • 1 x COM
  • 1 x LPT (optional)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 2 x USB 2.0/1.1
  • 2 x IEEE1394a
  • 1 x TV-out
  • 1 x Fast Ethernet 1/10/100 LAN
  • 1 x Line In, Line Out, 1 x Mic In
Power supply 250W (PFC) 200W (PFC)
Drive bays 2 x 5.25"; 2 x 3.5"

Model EQ2000M (reflective panel) EQ3000M (reflective panel) EQ3701M (reflective panel)
Model EQ2000W (white panel) EQ3000W (white panel)
Size 21.5 x 29.5 x 18.8 cm 21.5 x 29.5 x 23 cm
Body material Aluminium
Front panel
  • 2 x USB
  • Mic-In, Line-Out (headphones),
  • 3 x IEEE1394
  • 2 x SPDIF
  • 2 x USB
  • Mic-In, Line-Out (headphones)
  • 3 x IEEE1394
  • 2 x SPDIF
  • 2 x USB
  • Mic-In, Line-Out (headphones)
  • 1 x IEEE1394
  • 1 x SPDIF
Back panel
  • 1 x VGA
  • 2 x COM
  • 1 x LPT (optional)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 4 x USB 2.0/1.1
  • 1 x Fast Ethernet 1/10/100 LAN
  • 1 x Line In, Line Out, 1 x Mic In
  • 1 x VGA
  • 2 x COM
  • 1 x LPT (optional)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 4 x USB 2.0/1.1
  • 1 x Fast Ethernet 1/10/100 LAN
  • 1 x Line In, Line Out, 1 x Mic In
  • 2 x VGA
  • 1 x COM
  • 1 x LPT (optional)
  • 1 x PS/2 keyboard
  • 1 x PS/2 mouse
  • 2 x USB 2.0/1.1
  • 2 x IEEE1394a
  • 1 x TV-out
  • 1 x Fast Ethernet 1/10/100 LAN
  • 1 x Line Out, 1 x Surround-out, 1 x Center/woofer
Power supply 200W
Drive bays 1 x 5.25"; 2 x 3.5" 2 x 5.25"; 2 x 3.5"

The systems above feature the motherboards below:

  EQ3401 on SL-B8E-F EQ2000 / EQ3000 / EQ3402 on SL-B8A-F EQ3701 / EQ3702 on SL-B7A-F
Model SL-B8E-F SL-B8A-F SL-B7A-F
Form-factor Mini Form Factor (180 x 255 mm?)
Processor Intel P4 Socket 478 @ 800/533 MHz FSB (Hyper Threading) Intel P4 Socket 478 @ 533/400 MHz FSB (Hyper Threading) AMD Socket 462 @ 333/266 MHz
Chipset Intel 865G (GMCH) + ICH5 Intel 845GE (GMCH) + ICH4 NVIDIA Crush18G(IGP) + MCP2-T
Memory
  • 2 x DDR SDRAM sockets, up to 2GB
  • 2 x 400/333/266 DDR SDRAM channels
  • 2 x DDR SDRAM sockets, up to 2GB
  • Supports 333/266/200 DDR SDRAM
  • 2 x DDR SDRAM sockets, up to 2GB
  • 2 x 333/266 DDR SDRAM channels
Graphics Intel Extreme 256bit Graphics Core Intel Extreme Graphics NVIDIA GeForce4 MX
IDE 2 x ATA 100, 2 x Serial ATA 1 x ATA 100, 1 x ATA 66 2 x ATA 133/100/66
Expansion slots 1 x AGP (AGP 8x), 1 x PCI, 2 x DIMM 1 x AGP (AGP 4x), 1 x PCI, 2 x DIMM 1 x AGP (AGP 8x), 1 x PCI, 2 x DIMM
Audio 6-channel REALTEK (AC´97)
LAN RTL8100B ICS 1893 PHY
Options IEEE1394 / Serial ATA IEEE1394 IEEE1394 / TV-out/ Dual VGA Output
