Atmel announces new 8mp CCD
Atmel announced new 8-megapixel large format (film compatible image format) AT71200M CCD area array. It’s designed for digital minilabs, retouch/enhancement stations, high resolution reprography, large format X-ray film scanning and high resolution microscopy applications.

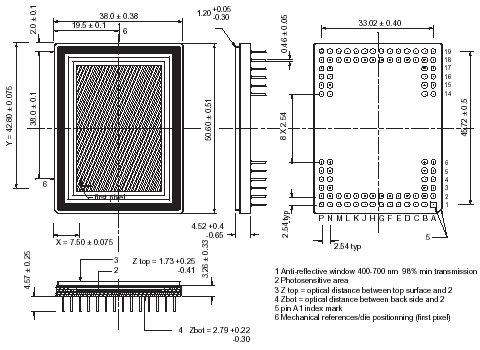

The new matrix features 3500 õ 2300 effective resolution (8.05 million pixels, 35x23mm), each pixel is 10x10µm in size. The CCD features bayer standard RGB color mosaic, specially designed for colorimetric applications, with the three colors balanced for a 4500 degrees-K standard lluminant. AT71200M CCD can be widely used, including very low dark current operation (MPP mode). Other specs are here.
