Sub-$100 3Digest: The End of 2003

CONTENTS

  1. Video cards' features
  2. Testbed, test tools, 2D quality
  3. Test results: Quake3 ARENA
  4. Test results: Serious Sam: The Second Encounter
  5. Test results: Return to Castle Wolfenstein
  6. Test results: Unreal Tournament 2003
  7. Test results: Unreal II: The Awakening
  8. Test results: RightMark 3D
  9. Test results: HALO: Combat Evolved
  10. Test results: Splinter Cell
  11. Conclusion

The year 2003 is nearing its end, and it's time to sum up the events... We will touch upon it in our 3Digest as well, and today we will just draw a final line.

Unfortunately, the sub$100 sector covers a lot of various cards: those which were targeted at the low-end market and those which jumped from the middle-end sector. The prices vary a lot! There are GeForce2 MX, RADEONs of the first releases, and GeForce4 MX with a 64bit buses standing next to them... The same mishmash is in the upper subsector of $60 to $80.

So, what's better, how do the relatively old accelerators perform in modern games, especially at the maximum quality settings? You can check our 3Digests of the last several years to see how they performed in older games; as to the newer games, it's quite complicated to keep all the cards (both old and new) in our 3Digest. That is why it often becomes a problem to compare old models with modern ones targeted at the low-end sector.

We have decided to revive such reviews covering video cards of the value market sector. Today we will test 22 cards priced from $15 to $100. To see whether a certain accelerator justifies its price the diagrams also indicate the prices for the end of November, 2003.

Cards



1. NVIDIA GeForce2 MX 200
Gigabyte GeForce2 MX200 32MB SDR 64bit, 175/166 MHz


2. NVIDIA GeForce2 MX 400
Reference card NVIDIA GeForce2 MX 32MB SDR 128bit, 200/183 MHz


3. NVIDIA GeForce2 Pro
Inno3D Tornado GeForce2 Pro 64MB DDR 128bit, 200/400 MHz


4. NVIDIA GeForce4 MX440
eVGA e-GeForce4 MX440 64MB DDR 128bit, 270/400 MHz


5. NVIDIA GeForce4 MX440SE
eVGA e-GeForce4 MX440 64MB DDR 128bit, downclocked 250/200 MHz

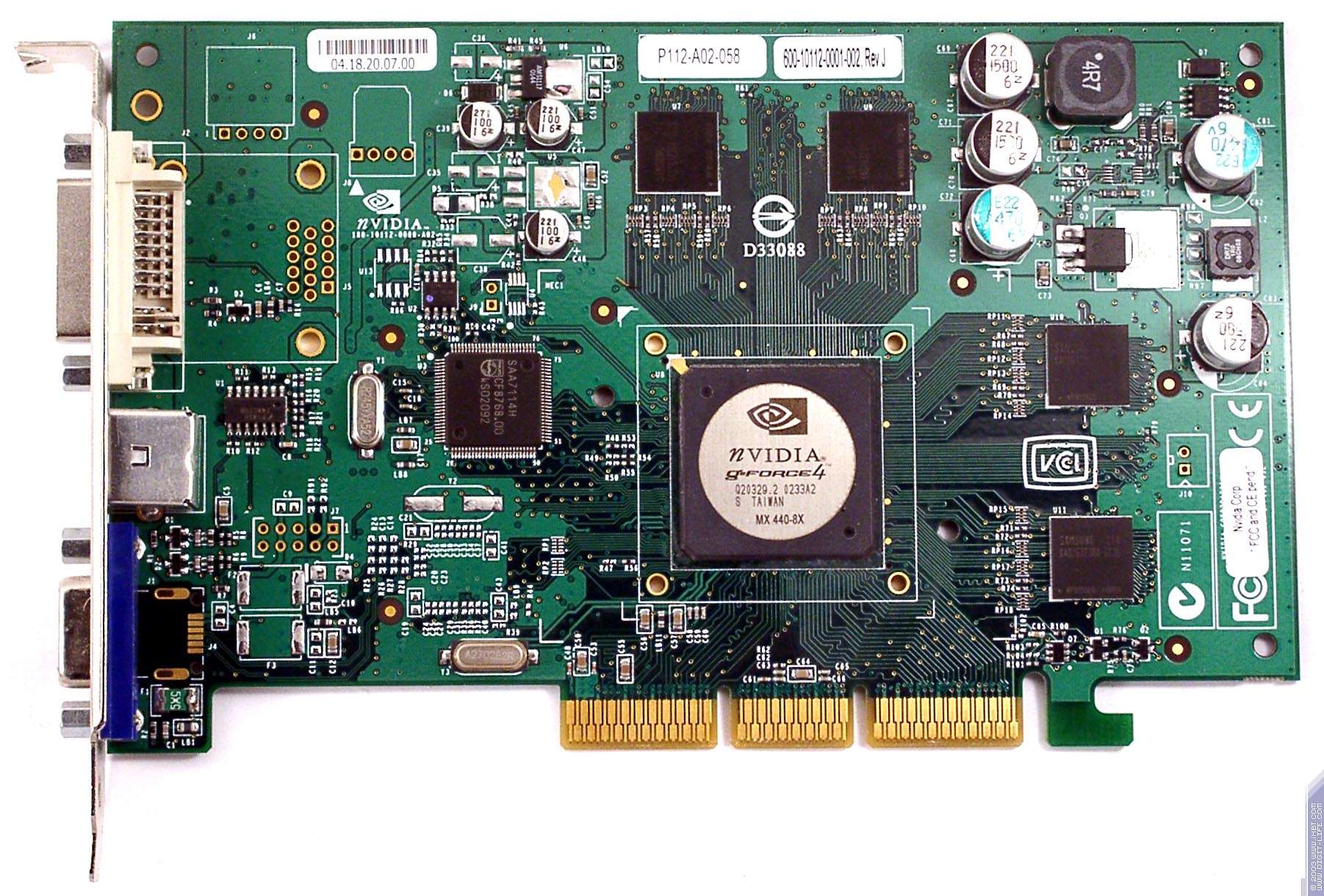

6. NVIDIA GeForce4 MX440-8x
Reference card NVIDIA GeForce4 MX440-8x 64MB DDR 128bit, 275/512 MHz

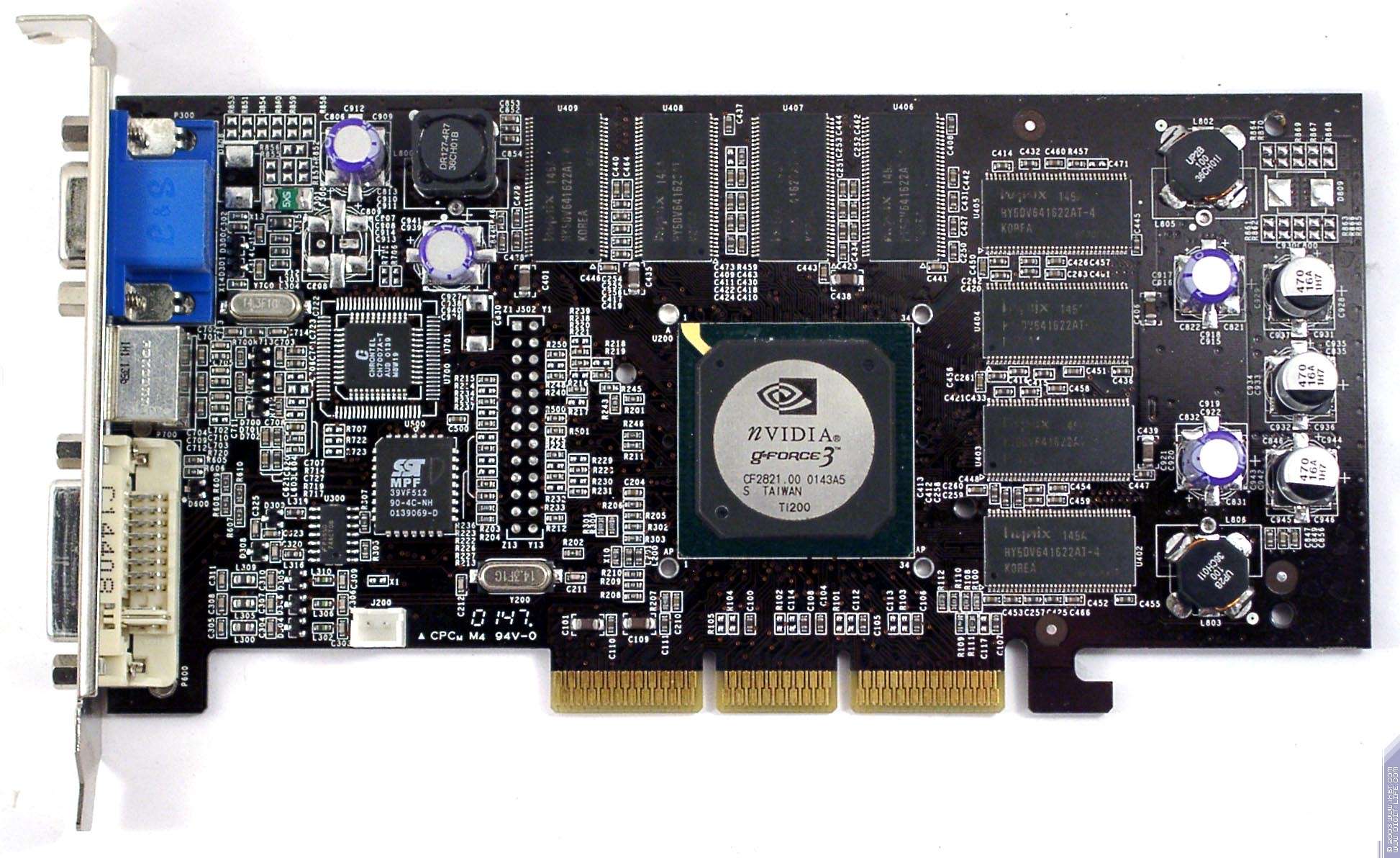

7. NVIDIA GeForce3 Ti 200
ABIT Siluro GF3 Ti200 64MB DDR 128bit, 175/400 MHz


8. NVIDIA GeForce4 Ti 4200 64MB
Gainward Powerpack GeForce4 Ultra/600 64MB DDR 128bit, downclocked 250/400 MHz


9. NVIDIA GeForce FX 5200 64bit
ASUS V9520 Magic 128MB DDR 64bit, 250/333 MHz

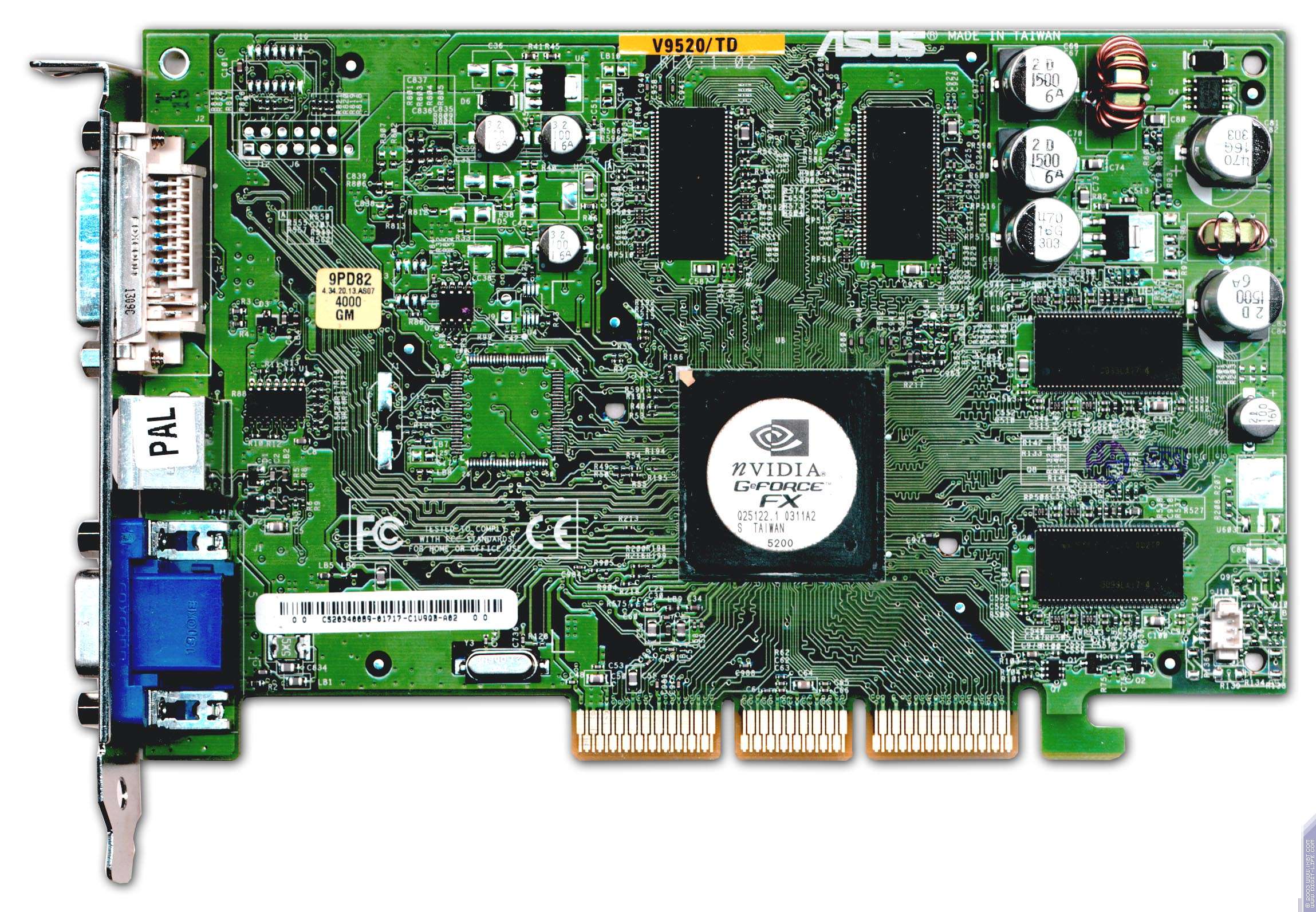

10. NVIDIA GeForce FX 5200 128bit
ASUS V9520 128MB DDR 128bit, 250/400 MHz


11. NVIDIA GeForce FX 5200 Ultra 128bit
MSI FX5200U 128MB DDR 128bit, 325/650 MHz


12. NVIDIA GeForce FX 5600 XT 64bit
Chaintech GeForce FX 5600 XT 128MB DDR 64bit, 235/400 MHz

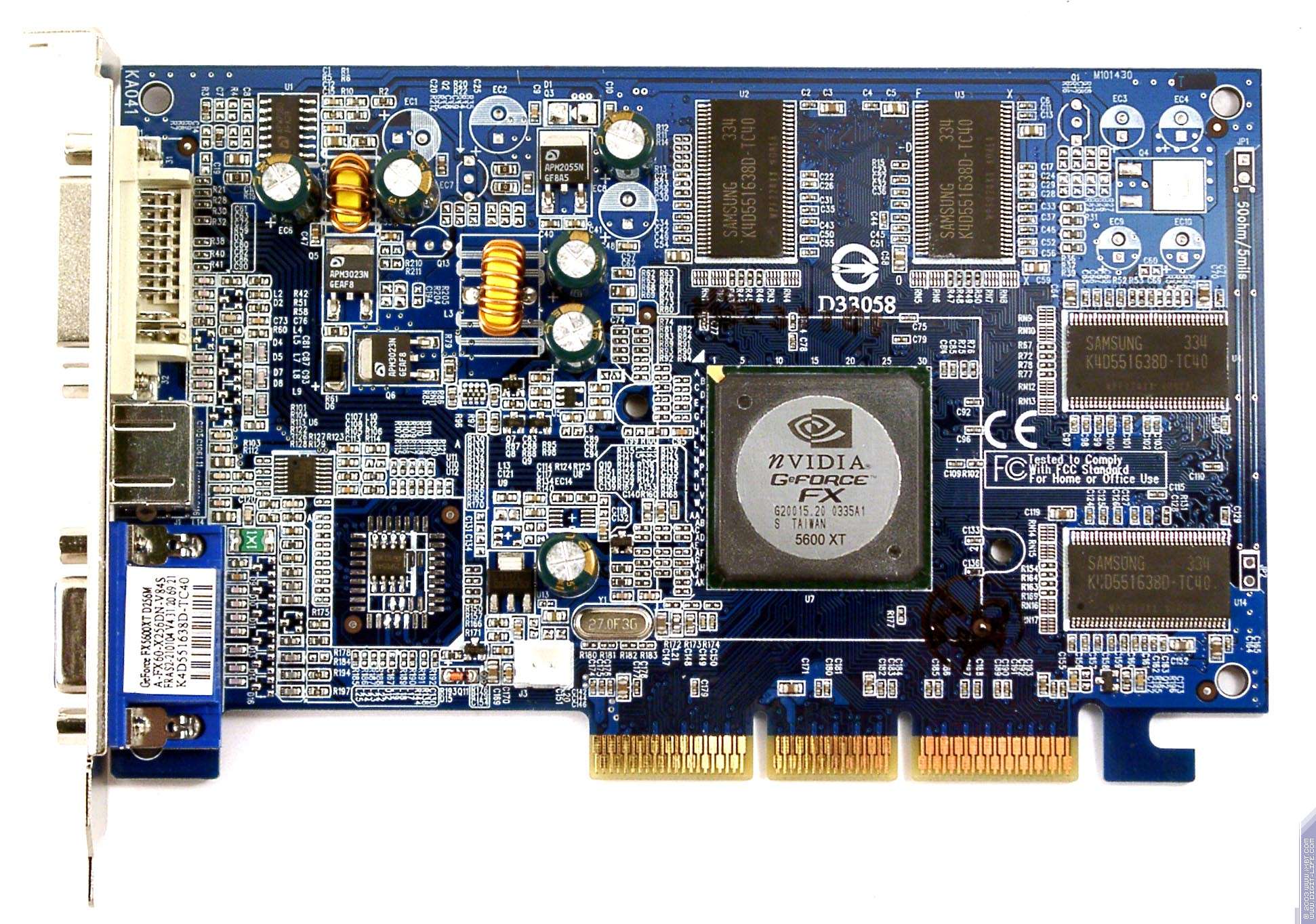

13. NVIDIA GeForce FX 5600 XT 128bit
Chaintech GeForce FX 5600 XT 256MB DDR 128bit, 235/400 MHz

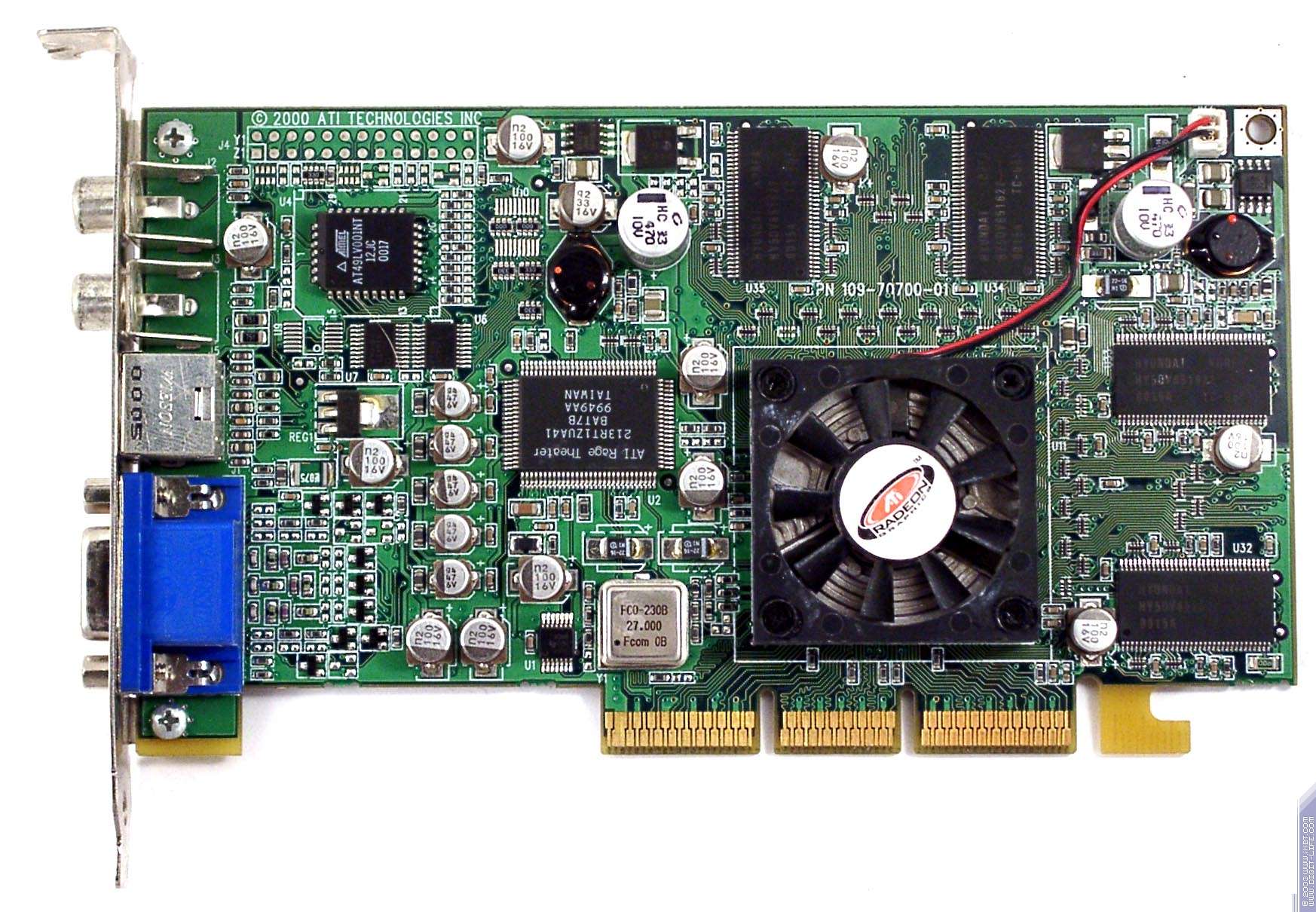

14. ATI RADEON 7200 128bit 64MB
ATI RADEON 64MB DDR 128bit, 183/366 MHz

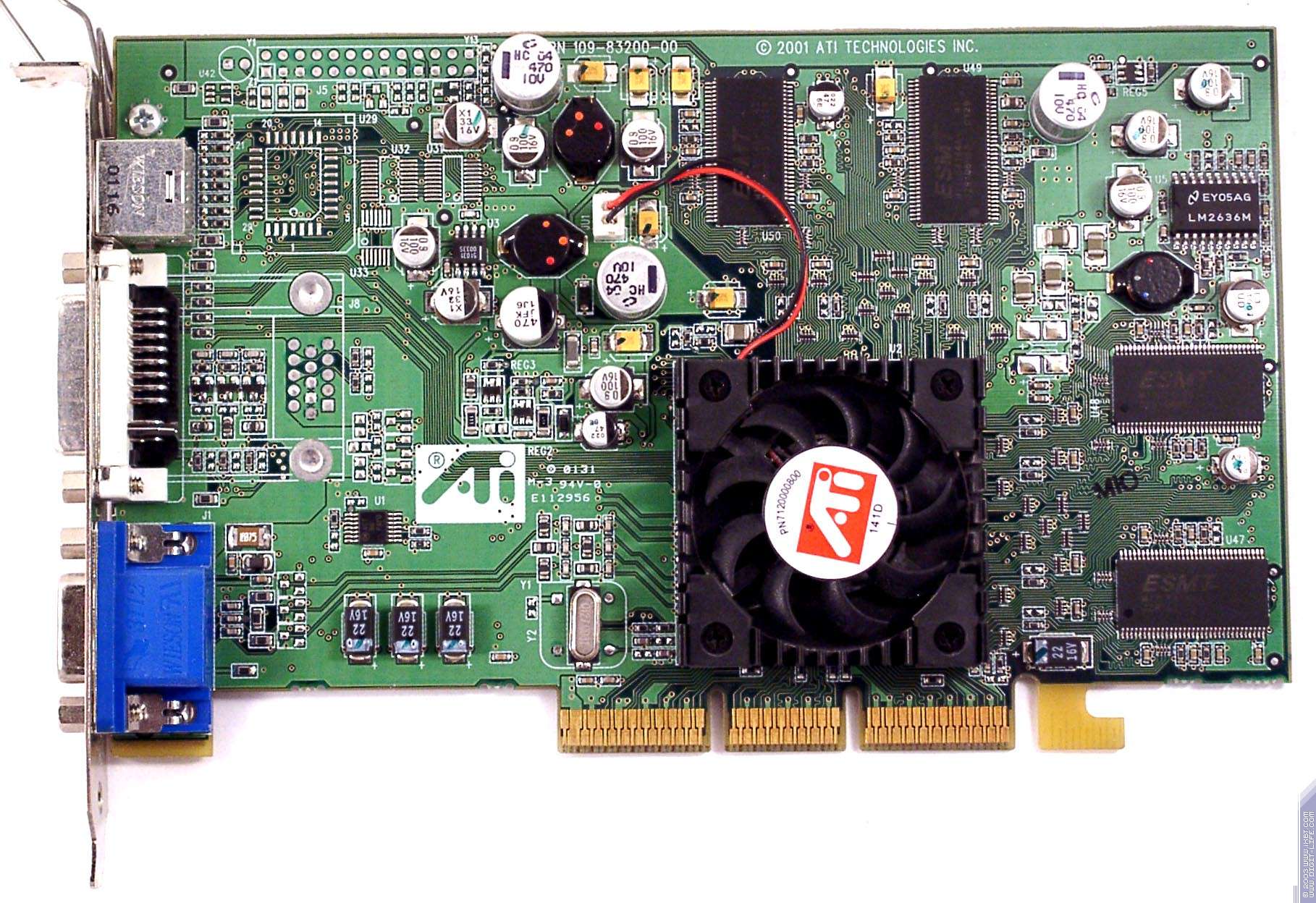

15. ATI RADEON 7500LE 128bit 64MB
Manli RADEON 7500LE 64MB DDR 128bit, 260/380 MHz

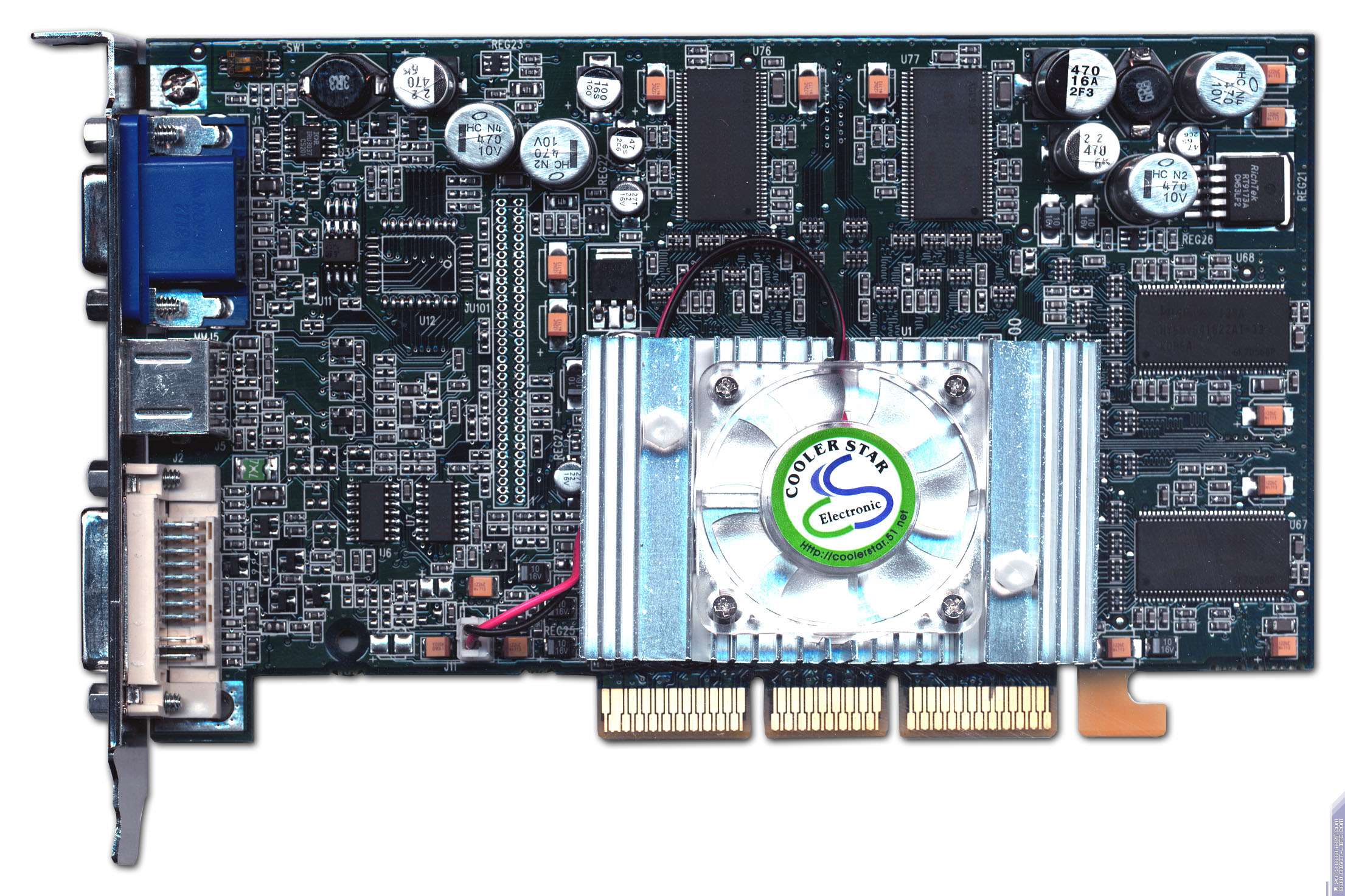

16. ATI RADEON 9000 PRO 128bit 64MB
TYAN Tachyon G9000PRO 64MB DDR 128bit, 275/550 MHz


17. ATI RADEON 8500LE (9100) 128bit 64MB
SuperGrace RADEON 8500LE 64MB DDR 128bit, 250/460 MHz

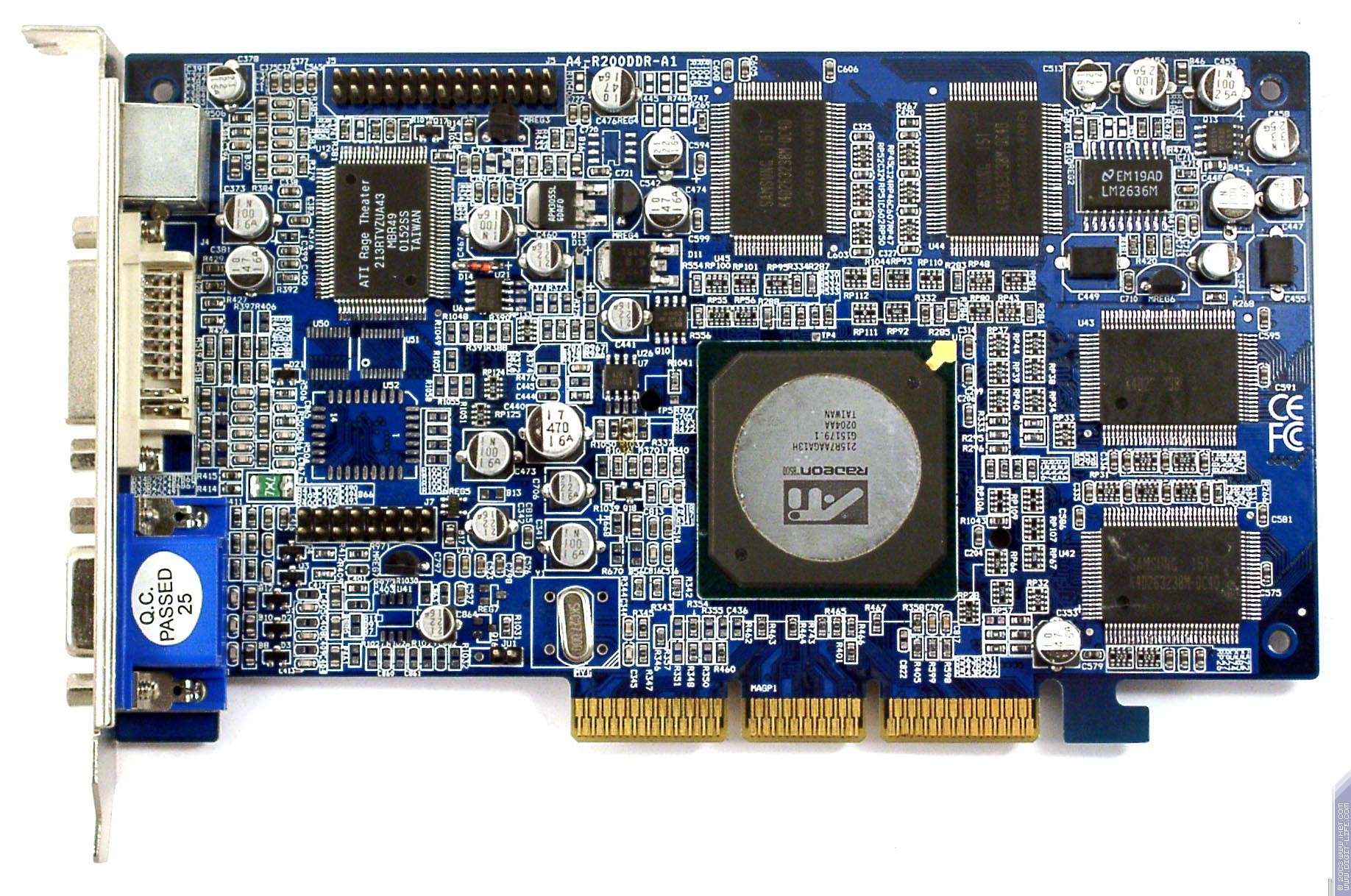

18. ATI RADEON 8500LE (9100) 128bit 128MB
Joytech Apollo Monster II RADEON 8500LE 128MB DDR 128bit, 250/500 MHz


19. ATI RADEON 9200SE 64bit 128MB
PowerColor RADEON 9200SE 128MB DDR 64bit, 200/333 MHz

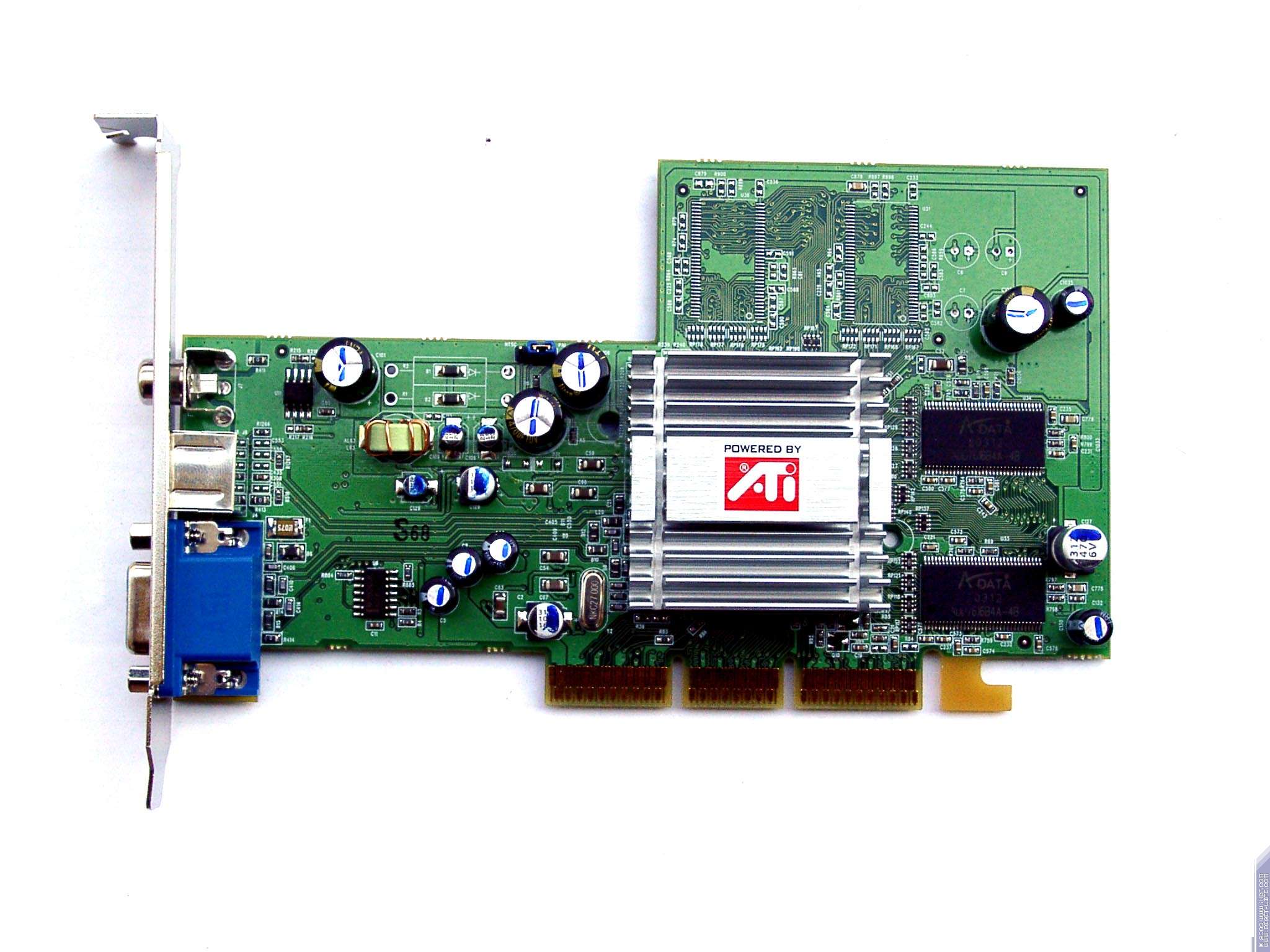

20. ATI RADEON 9200 64bit 64MB
Sapphire RADEON 9200 64MB DDR 64bit, 250/400 MHz

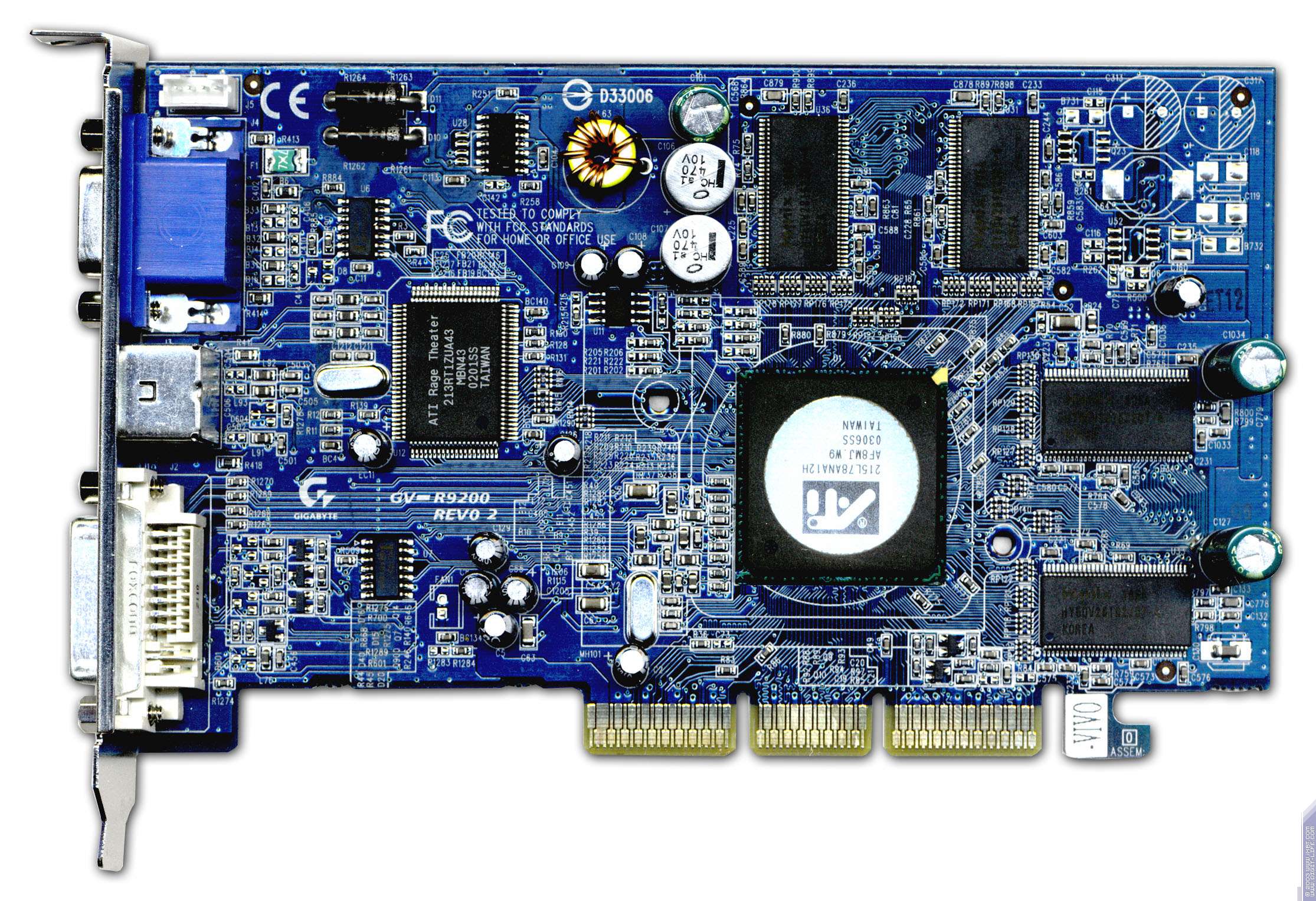

21. ATI RADEON 9200 128bit 128MB
Gigabyte RADEON 9200 128MB DDR 128bit, 250/400 MHz


22. ATI RADEON 9600SE 64bit 128MB
ASUS A9600SE 128MB DDR 64bit, 325/400 MHz






However, it's still doubtful whether two of them can be considered to belong to this sector: they are the GeForce FX 5200 Ultra (which is still hard to find at the price lower than $100), and the GeForce FX 5600 XT 128bit which must be definitely cheaper than $100 in a month.

Quality of all the cards is described in out 3Digests.

Testbed and drivers

Testbed:

  • Pentium 4 3200 MHz based computer:
    • Intel Pentium 4 3200 MHz CPU;
    • DFI LANParty Pro875 (i875P) mainboard;
    • 1024 MB DDR SDRAM;
    • Seagate Barracuda IV 40GB HDD;
    • Windows XP SP1; DirectX 9.0b;
    • ViewSonic P810 (21") and ViewSonic P817 (21") monitors.
    • NVIDIA drivers v52.16; ATI v6.396 (CATALYST 3.9).

VSync off, S3TC off in applications.

All tests are carried out at 800x600@32bit color. It's made for weak cards which are not able to play at 1024x768 at all. Even at 800x600 in some benchmarks the performance isn't ok at all!

Even at this resolution the weak cards perform very poorly in modern games, that is why I beg you not to cry that it's nonsense to test the GeForce2 MX on the Pentium4 3200 MHz as the processor and platform do not make a strong effect there.

Test results: performance

Test applications:

  • Return to Castle Wolfenstein (MultiPlayer) (id Software/Activision) - OpenGL, multitexturing, ixbt0703-demo, test settings - maximum, S3TC OFF, the configurations can be downloaded from here

    •
  • Serious Sam: The Second Encounter v.1.07 (Croteam/GodGames) - OpenGL, multitexturing, ixbt0703 demo, test settings: quality, S3TC OFF

    •
  • Quake3 Arena v.1.17 (id Software/Activision) - OpenGL, multitexturing, ixbt0703 demo, test settings - maximum: detailing level - High, texture detailing level - #4, S3TC OFF, smoothness of curves is much increased through variables r_subdivisions "1" and r_lodCurveError "30000" (at default r_lodCurveError is 250 !), the configurations can be downloaded from here

    •
  • Unreal Tournament 2003 v.2225 (Digital Extreme/Epic Games) - Direct3D, Vertex Shaders, Hardware T&L, Dot3, cube texturing, default quality

    •
  • Unreal II: The Awakening (Legend Ent./Epic Games) - Direct3D, Vertex Shaders, Hardware T&L, Dot3, cube texturing, default quality

    •
  • RightMark 3D v.0.4 (one of the gaming scenes) - DirectX 8.1, Dot3, cube texturing, shadow buffers, vertex and pixel shaders (1.1, 1.4).

    •
  • Tom Clancy's Splinter Cell v.1.2b (UbiSoft) - Direct3D, Vertex/Pixel Shaders 1.1, Hardware T&L, High quality); demo 1_1_2_Tbilisi

    •
  • HALO: Combat Evolved (Microsoft) - Direct3D, Vertex/Pixel Shaders 1.1, Hardware T&L, high quality

    •

If you need demo benchmarks please email me.

Attention! There's a misprint on the diagrams: you should read "ATI RADEON 9200 128MB DDR 128bit" instead of "ATI RADEON 9200 64MB DDR 128bit"

Quake3 Arena











Serious Sam: The Second Encounter











Return to Castle Wolfenstein (Multiplayer)











Unreal Tournament 2003











Unreal II: The Awakening











RightMark 3D









 The video cards that do not support shaders are not tested.



HALO: Combat Evolved









 Originally all the cards were tested since the game is able to work without shaders, but the quality was so awful that I removed scores of the cards that did not support pixel shaders.



Splinter Cell









 The situation is similar to the above one.

Conclusion

So, for every price sector we have made up a list of benchmarks within which you can see the cards taking the first, second and third places.

US$90-100:

  • Quake3 Arena
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. RADEON 9600SE

  • Serious Sam: The Second Encounter
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. GeForce FX 5600XT 128bit

  • Return to Castle Wolfenstein (Multiplayer)
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. GeForce FX 5600XT 128bit

  • Unreal Tournament 2003
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. GeForce FX 5600XT 128bit

  • Unreal II: The Awakening
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. GeForce FX 5600XT 128bit

  • RightMark 3D
    1. GeForce FX 5200 Ultra
    2. GeForce4 Ti 4200
    3. GeForce FX 5600XT 128bit

  • HALO: Combat Evolved
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. GeForce FX 5600XT 128bit

  • Splinter Cell
    1. GeForce4 Ti 4200
    2. GeForce FX 5200 Ultra
    3. GeForce FX 5600XT 128bit

The GeForce4 Ti 4200 is a leader here, with the GeForce FX 5200 Ultra following it. If the former disappears from the market and the latter is taken out of production the upper position will be taken by the GeForce FX 5600XT 128bit (provided that its price is not higher than US$100).

In all other respects (multimonitor support etc.) the cards look equal. The GeForce4 Ti 4200 shows the best summary scores.

US$70-90:

  • Quake3 Arena
    1. RADEON 9100 128MB
    2. RADEON 9000 PRO
    3. RADEON 9200 128bit

  • Serious Sam: The Second Encounter
    1. RADEON 9100 128MB / RADEON 9000 PRO
    2. RADEON 9200 128bit
    3. GeForce3 Ti 200

  • Return to Castle Wolfenstein (Multiplayer)
    1. RADEON 9000 PRO
    2. RADEON 9200 128bit
    3. RADEON 9200 128bit

  • Unreal Tournament 2003
    1. RADEON 9100 128MB
    2. RADEON 9000 PRO
    3. GeForce3 Ti 200

  • Unreal II: The Awakening
    1. RADEON 9100 128MB
    2. RADEON 9000 PRO
    3. RADEON 9200 128bit

  • RightMark 3D
    1. GeForce FX 5600XT 64bit
    2. RADEON 9100 128MB
    3. RADEON 9000 PRO / GeForce3 Ti 200

  • HALO: Combat Evolved
    1. RADEON 9100 128MB
    2. RADEON 9000 PRO / GeForce3 Ti 200
    3. RADEON 9200 128bit / GeForce FX 5600XT 64bit

  • Splinter Cell
    1. RADEON 9100 128MB
    2. RADEON 9000 PRO / GeForce3 Ti 200
    3. RADEON 9200 128bit / GeForce FX 5600XT 64bit

The RADEON 9100 128MB and RADEON 9000 PRO turn out to be the leaders. But these cards, as well as the GeForce3, are not produced anymore, and when they disappear from the shelves, the leading position will belong to the RADEON 9200 128bit. Although the GeForce FX 5600XT 64bit supports DX9, it's an outsider (the 2.0 shaders are too slow in the FX, and there are few games with such shaders).

As to the other traits, it's only the RADEON 9000/9200 (not the 9100) and GeForce FX 5600XT that support multimonitoring. In general, the RADEON 9200 128bit scores the best results here.

US$50-65:

  • Quake3 Arena
    1. GeForce4 MX440-8x
    2. GeForce FX 5200 128bit
    3. RADEON 8500LE 64MB

  • Serious Sam: The Second Encounter
    1. RADEON 8500LE 64MB
    2. GeForce4 MX440-8x / GeForce FX 5200 128bit
    3. RADEON 9200 64bit

  • Return to Castle Wolfenstein (Multiplayer)
    1. RADEON 8500LE 64MB
    2. GeForce4 MX440-8x
    3. GeForce FX 5200 128bit

  • Unreal Tournament 2003
    1. RADEON 8500LE 64MB
    2. GeForce4 MX440-8x / GeForce FX 5200 128bit
    3. RADEON 9200 64bit / GeForce FX 5200 64bit

  • Unreal II: The Awakening
    1. RADEON 8500LE 64MB
    2. GeForce4 MX440-8x / GeForce FX 5200 128bit
    3. RADEON 9200 64bit / GeForce FX 5200 64bit

  • RightMark 3D
    1. GeForce FX 5200 128bit
    2. GeForce FX 5200 64bit
    3. RADEON 9200 64bit

  • HALO: Combat Evolved
    1. RADEON 8500LE 64MB / GeForce FX 5200 128bit
    2. GeForce FX 5200 64bit
    3. RADEON 9200 64bit

  • Splinter Cell
    1. GeForce FX 5200 128bit
    2. RADEON 8500LE 64MB
    3. GeForce FX 5200 64bit

The best runners are RADEON 8500LE 64MB (RADEON 9100) and GeForce FX 5200 128bit. But the former is not produced anymore and can soon disappears from the retail market, that is why the FX 5200 128bit can be considered a leader. Besides, if you compare its price and that of the FX 5600XT 64bit (an outsider of the upper sector), the GeForce FX 5200 128bit will look more beneficial than the 5600XT 64bit.

Taking into account multimonitoring (all latest RADEON 8500/9100 do not have a second RAMDAC) and DX9 support, the GeForce FX 5200 128bit comes out a leader.

US$30-45:

  • Quake3 Arena
    1. GeForce2 Pro 64MB
    2. GeForce4 MX440
    3. RADEON 7500LE

  • Serious Sam: The Second Encounter
    1. RADEON 7500LE / GeForce4 MX 440 / GeForce2 Pro
    2. RADEON 9200SE
    3. GeForce4 MX440SE

  • Return to Castle Wolfenstein (Multiplayer)
    1. RADEON 7500LE / GeForce4 MX 440 / GeForce2 Pro
    2. RADEON 9200SE
    3. GeForce4 MX440SE

  • Unreal Tournament 2003
    1. RADEON 7500LE / GeForce4 MX 440
    2. GeForce2 Pro
    3. RADEON 9200SE

  • Unreal II: The Awakening
    1. GeForce4 MX 440
    2. RADEON 7500LE
    3. GeForce2 Pro / RADEON 9200SE

  • RightMark 3D
    1. RADEON 9200SE
    2. -
    3. -

  • HALO: Combat Evolved
    1. RADEON 9200SE
    2. -
    3. -

  • Splinter Cell
    1. RADEON 9200SE
    2. -
    3. -

As we can see, the oldies which have pretty low prices today keep the lead in the competition. The RADEON 9200SE wins only because of the multimonitoring and DX81 support.

Sub US$30:

  • Quake3 Arena
    1. RADEON 7200 64MB
    2. GeForce2 MX400
    3. GeForce2 MX200

  • Serious Sam: The Second Encounter
    1. RADEON 7200 64MB
    2. GeForce2 MX400
    3. GeForce2 MX200

  • Return to Castle Wolfenstein (Multiplayer)
    1. RADEON 7200 64MB
    2. GeForce2 MX400
    3. GeForce2 MX200

  • Unreal Tournament 2003
    1. RADEON 7200 64MB
    2. GeForce2 MX400
    3. GeForce2 MX200

  • Unreal II: The Awakening
    1. RADEON 7200 64MB
    2. GeForce2 MX400
    3. GeForce2 MX200

  • RightMark 3D
    1. -
    2. -
    3. -

  • HALO: Combat Evolved
    1. -
    2. -
    3. -

  • Splinter Cell
    1. -
    2. -
    3. -

It was clear even at the end of 2000 that the RADEON 64MB DDR (renamed RADEON 7200) was stronger than the GeForce2 MX. Today we have proven this fact once again. All these cards are already taken out of production; you can find only remains of the stock.

Also note that if the speed doesn't allow playing even in 800x600 you should sacrifice quality by reducing the detail level and switching off effects. It also should be accounted for when estimating the cards.




Andrey Vorobiev (anvakams@ixbt.com)
