GPU SIS Xabre400
Well, there is no time to get bored - no sooner had Matrox and 3Dlabs announced their new products, than SIS came out with its Xabre. This is one more attempt of the company prospering on the chipset market to extend its share in the graphics sphere.
The following line on the GPU Xabre is going to be released:
The most powerful solution of the line will be available later:
In February 2003 SIS will come out with the DirectX 9 compatible Xabre II.
Undoubtedly, the new family can't boast of perfect architecture or performance. But the breakthrough from its previous products is great - the new chip possesses a noticeable architectural advantage so far unobtainable for other competitors of this niche. I mean hardware pixel shaders available now in the budget product. Here, as you now, there are three important factors: minimal price, good price/performance ratio and lack of difficulties in adjustment and exploitation. Later we will look deeper into them, and now a bit of theory.
Below is a summary table of key technical characteristics of the tested chips and cards:

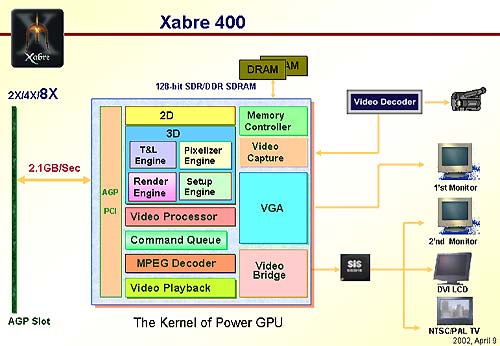

Here is the chip's block diagram:
Here is a list of OpenGL (1.3.0) extensions supported:
Peculiarities of the Triplex Millenium Silver Xabre Pro
This is not the first review of Triplex products - here we already examined GeForce4 Ti 4600 and GeForce3 Ti 200. As you might remember, Triplex Corporation was founded in 1991. In 1992 the company offered up-to-date products based on the Tseng Labs chip - ET3000 and then ET4000.
Triplex successfully distributed its products (later its cards were based on chips from S3, SIS and others) both on the OEM and Retail markets. This company is mostly known in China and Taiwan.
At present, this company produces video cards based on processors from NVIDIA, as well as from SIS and PowerVR. Some time ago it announced a SIS Xabre product which is tested today.
Before we turn to the card in question, I must say that Triplex covers all its PCBs with a thin layer of silver. Such cards are named Millennium Silver. It provides two advantages:
The details will be shown later.

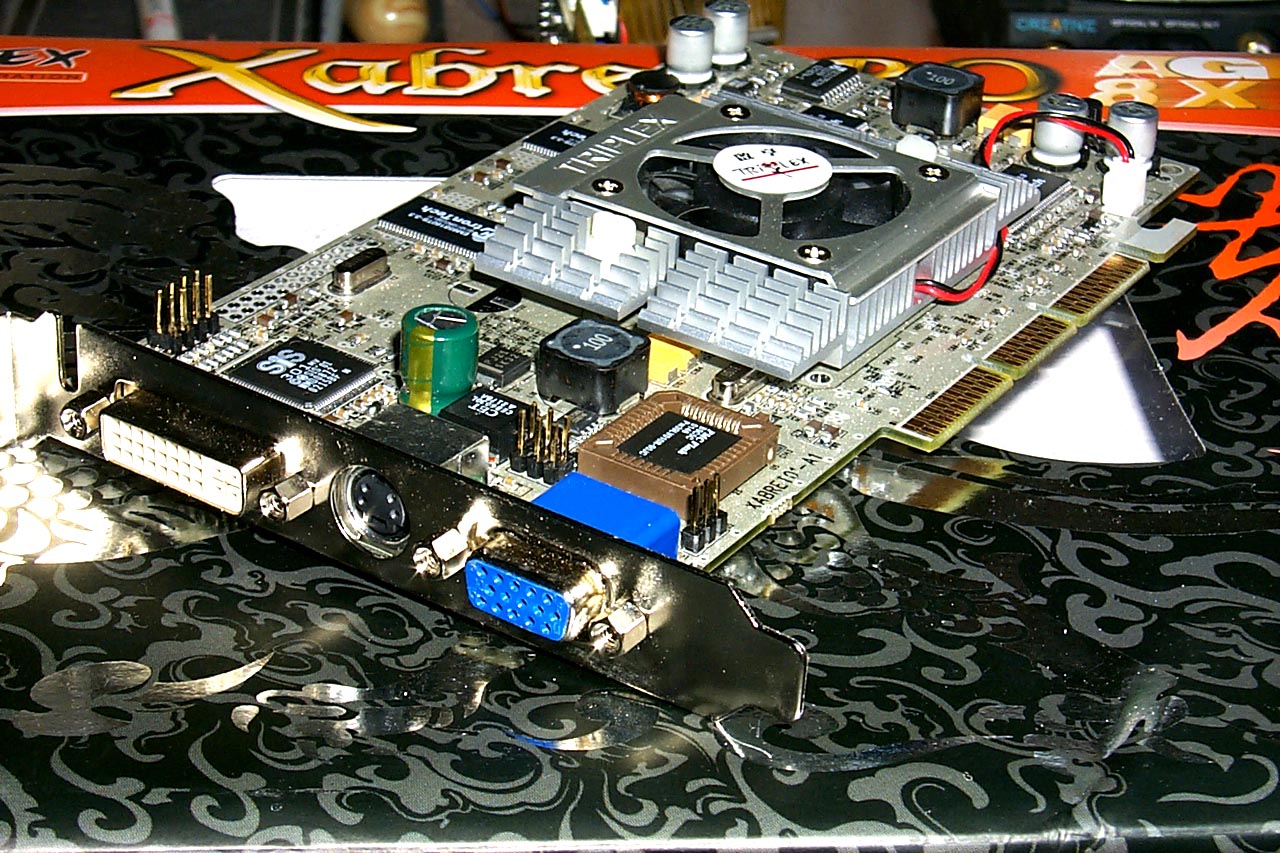

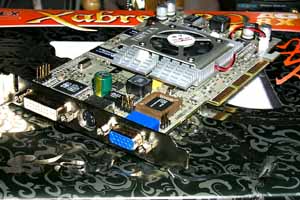

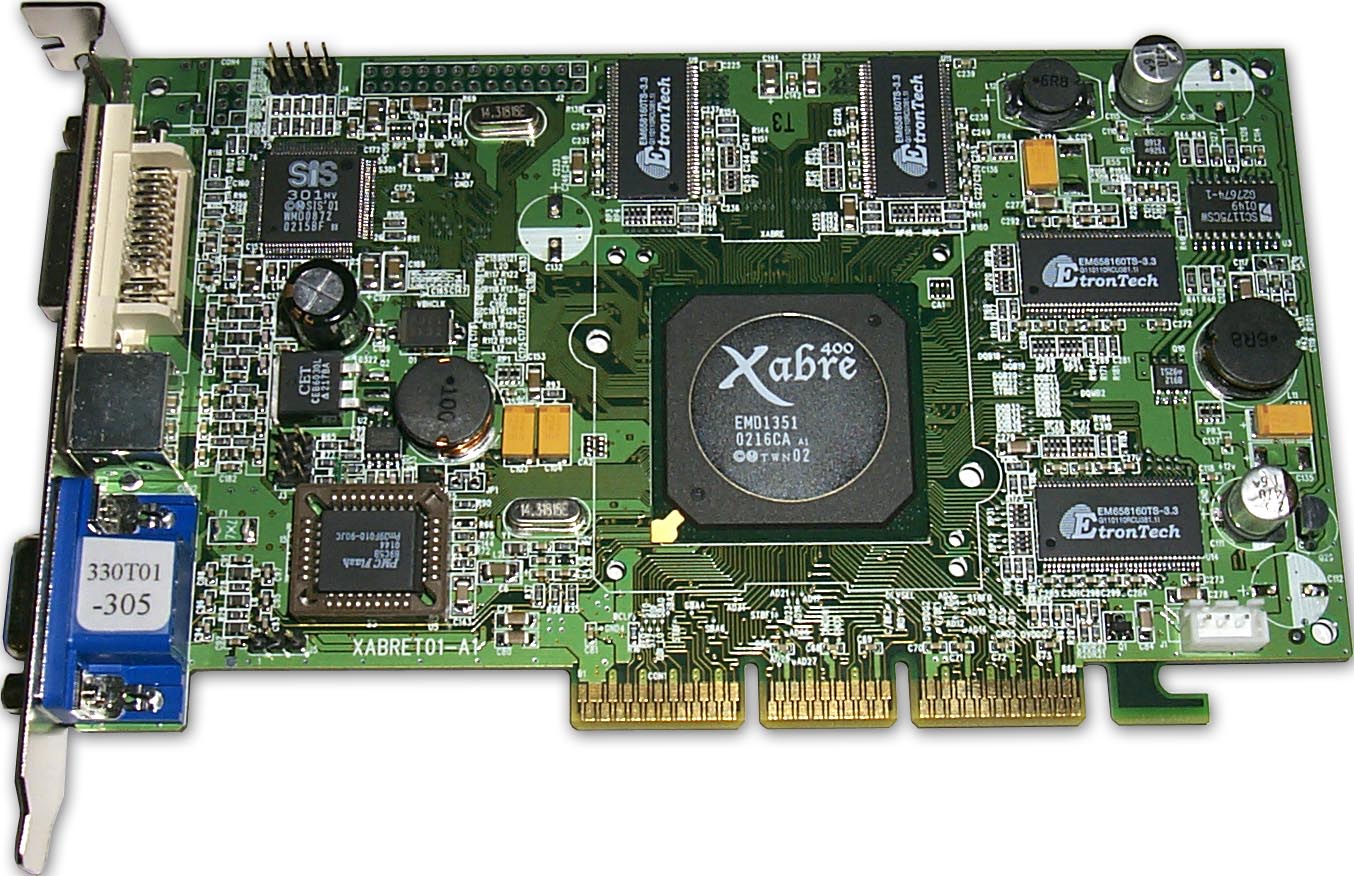

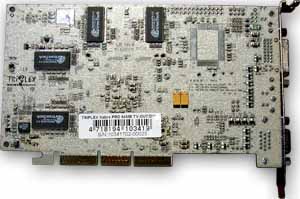

The card has AGP x2/x4/x8 interface, 64 MBytes DDR SDRAM memory located in 8 chips on both sides of the PCB.

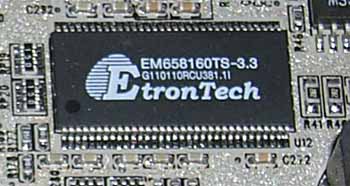

The EtronTech's memory has 3.3ns access time which corresponds to 300 (600) MHz. The cards works at the frequencies rated for Xabre400 - 250/250 (500) MHz.

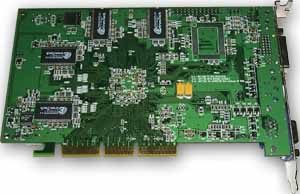

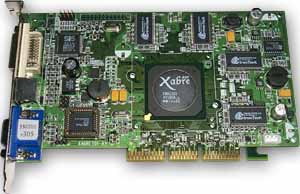

The Triplex Millennium Silver Xabre Pro follows the reference design from SIS, even the memory chips are from the same manufacturer. But I wonder why they used such fast memory for 250 MHz? Note, however, that the overclocking potential is not great, although EtronTech is famous for it. Probably, it is because of the layout or memory timings.
Here is the Xabre400 chipset:
Despite the 0.15-micron process, the chip heats up considerably (probably because of 4 pixel pipelines and 8 texture units), that is why there is a metallic lid in the center for better heat removal. Again, I must say that it's impossible to overclock the GPU: at 270 MHz the card hangs in applications like 3DMark2001. Probably, this is the reason SIS prefers not to speak about the Xabre 600 whose core must work at 300 MHz.

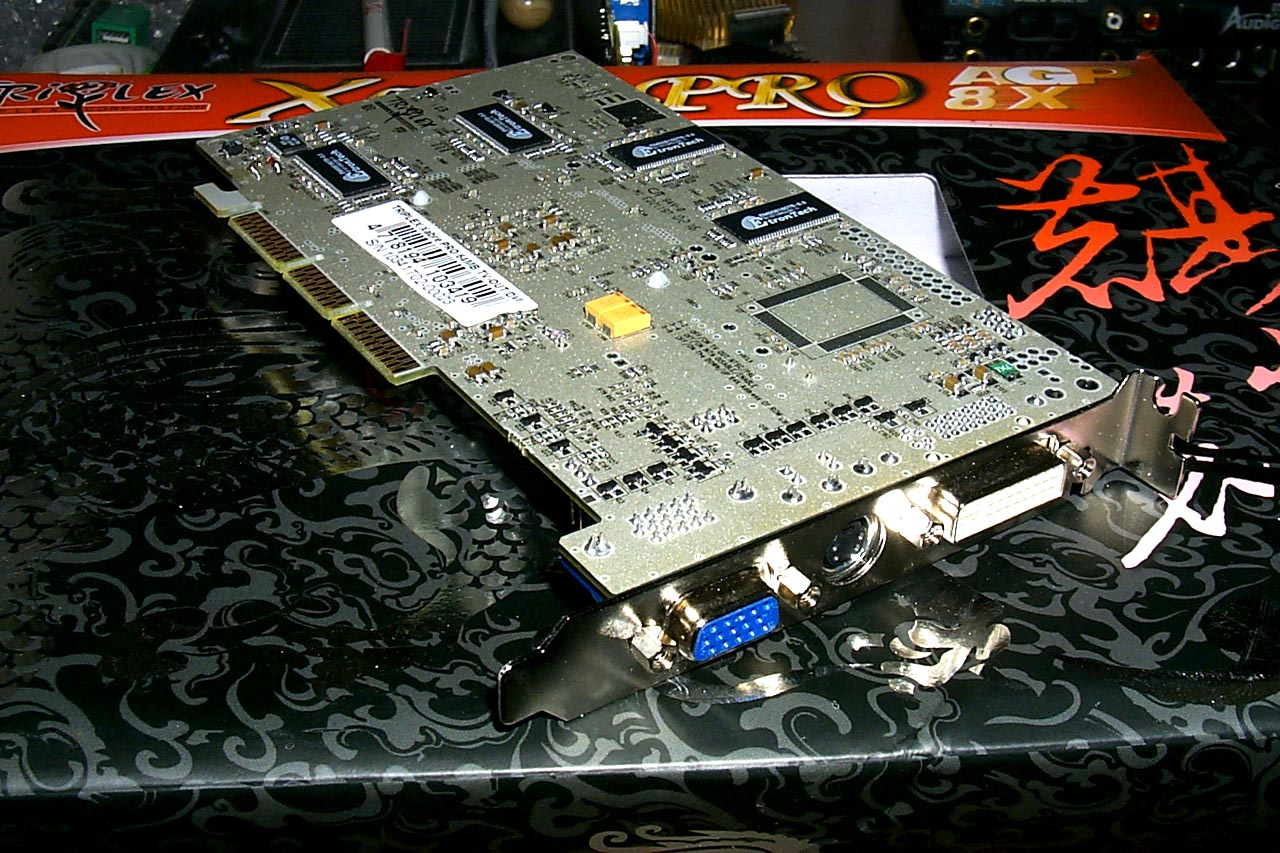

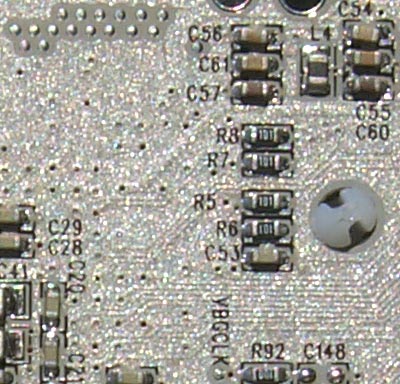

The picture below shows that the PCB is really covered with silver:
Each element is isolated from the silver, which eliminates electrical problems. Note that according to Triplex, this layer reduces temperature of the card to 10-15 degrees Celsius.

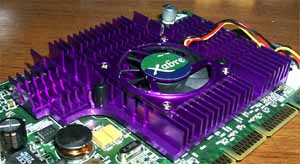

Now let's turn to the cooling device. While the Triplex card has a usual cooler and memory is not cooled at all, the cooling device on the reference card is really striking.
It makes no sense to cool down chips only from the right side. It seems to me that the heatsink is rather a decorative feature.
The SIS 301 coprocessor provides multimonitor support.
This dualhead realization allows for a standard set of capabilities:

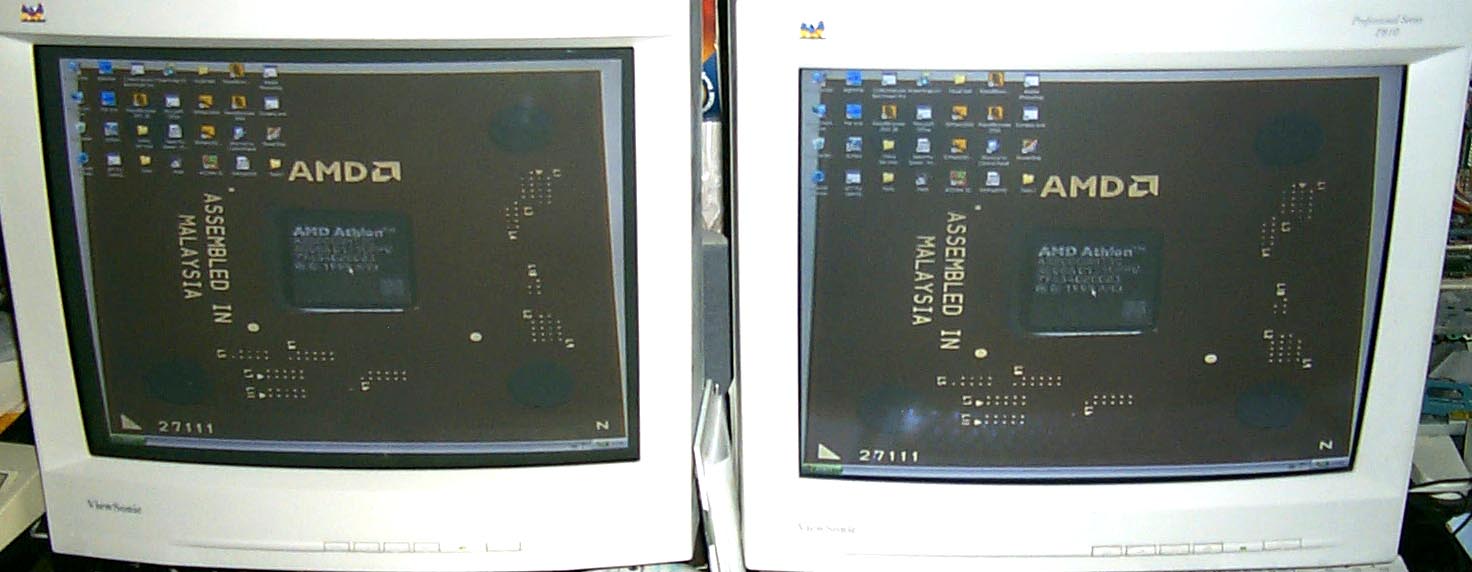

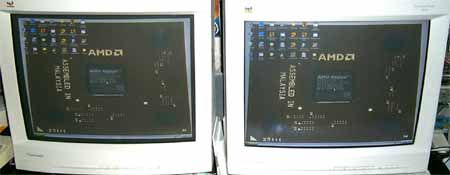

Clone mode - the same picture on two monitors

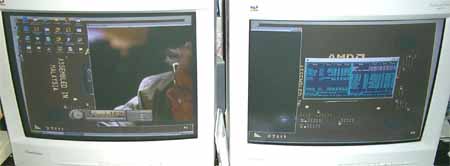

Extended mode - one picture is spread onto two monitors (WinDVD)
The desktop extension is a more interesting mode than the clone one. First of all, it is useful for movie lovers as they can run the a player on the second monitor. However, it's impossible to do this thing with the WinDVD because the player knows well the border between the monitors and you will see just a black window instead of a movie.

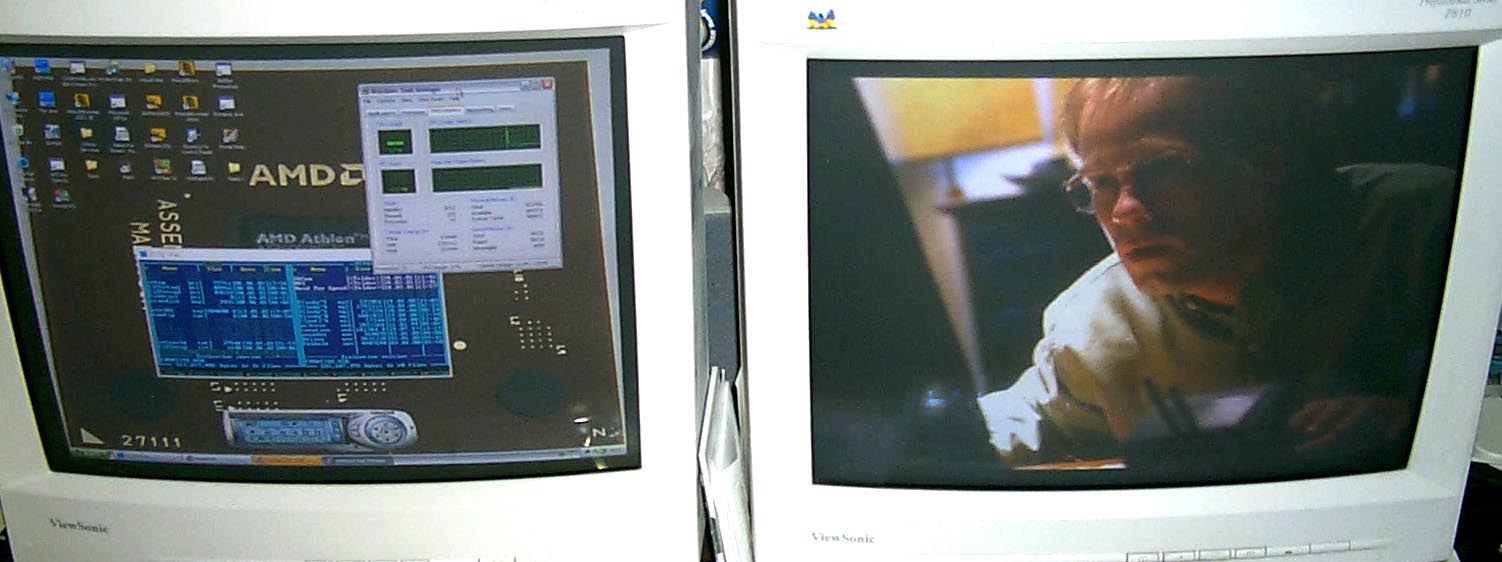

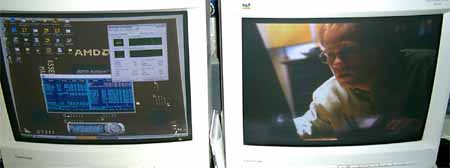

Extended mode (PowerDVD)
On the contrary, PowerDVD is very useful for it - you can easily watch movies on the second monitor and work on the first one. The DVD playback quality is good; CPU utilization was 22-23% when it played MPEG2 clips.
As there is no an S-Video-to-RCA adapter, I failed to test TV-out quality, though the Triplex card has both S-Video, and VGA and DVI. By the way, for the second CRT monitor I used a DVI-to-VGA adapter coming with the card.

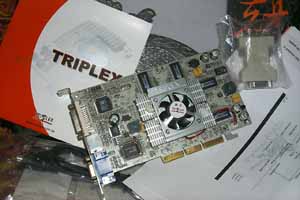

Now let's take a look at the excellent package of the Triplex Millennium Silver Xabre Pro!
User manual, CD with drivers and utilities, DVI-to-VGA adapter, S-Video extender.
The package looks like a pyramid. The design is magnificent.
It's possible to overclock only with the PowerStrip (the Triplex's overclocker is still too raw). However, there were problems even when we lifted up the frequencies by 15 MHz - the image got some artifacts. The chip failed to work higher than at 268-270 MHz. So, overclocking is almost impossible here.
Test system and drivers

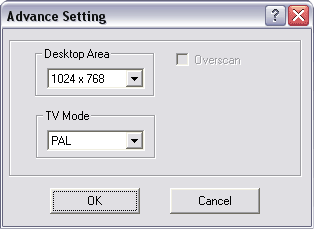

The card ships with SIS drivers 3.01, but we use newer ones - 3.02.53. The settings are quite scarce and they are connected mainly with information on the card and dualhead support:
For the tests we used SIS drivers 3.02.53. Note that it's impossible to disable the VSync. The S3TC technology was off.
For comparison we used the following cards:
Before we start examining 2D quality I should say that there is no a complete technique of objective estimation of this parameter because:
Of course, we do our best to improve the situation, but at the moment I can't promise anything.
As for the tested sample, together with the ViewSonic P817 monitor and BNC Bargo cable it showed the following quality: 1600x1200x100 Hz - bad, 1600x1200x85 Hz - satisfactory, 1280x1024x100 Hz -good, 1280x1024x85 Hz - excellent.
For estimation of 3D performance we used:
It should be noted that the latest driver version (3.02.53) the Serious Sam II test didn't work, however the Xabre operated flawlessly in this game on the previous version - 3.02.52.
3D Mark2001 SE, synthetic tests
FILLRATE, Single Texturing
The Xabre falls behind considerably. In low resolutions it's because of the lower core frequency, in higher ones - because of lacking memory bandwidth saving technologies.

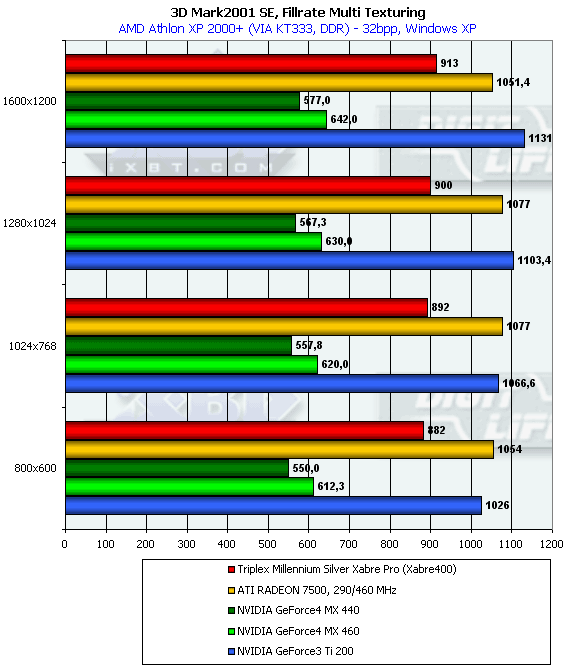

FILLRATE, Multi Texturing
When the maximum number of textures is used at a pass the Xabre shows more optimistic results because of 4 fill pipelines and a capability to accumulate results of operation of the texture units rendering 4 textures at a pass. However, the GeForce 3 Ti200 and RADEON 7500 are still far ahead.
High Polygon Count, 1 Light
The T&L unit of the Xabre 400 outscores the RADEON but lags behind the NV17. The latter leads thanks to the higher core frequency. The GeForce3 Ti200 loses in this test being next to the RADEON 7500 which performs so awfully because of the T&L unit.

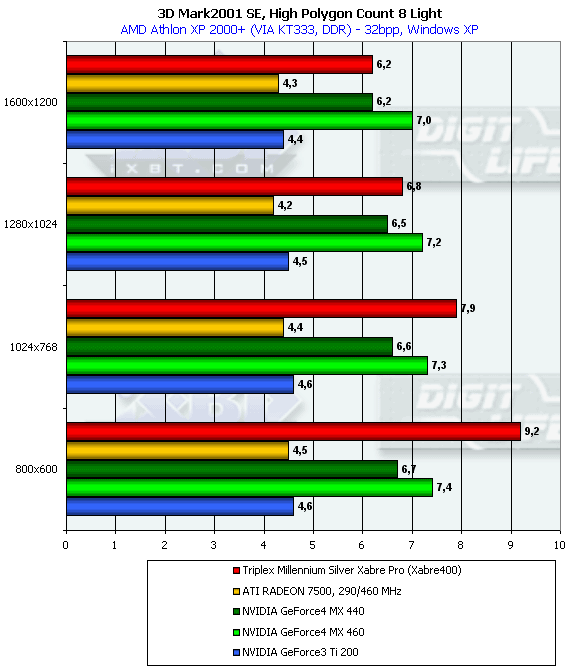

High Polygon Count, 8 Lights
When 8 light sources are used the Xabre 400 unexpectedly outscores the NV17. The T&L NV17, which is in fact a shader, grows (its length and time) with each new light source. And the Xabre, with its less flexible and nonprogrammable T&L, calculates light sources more effectively. Or it's possible that the drivers take a considerable part of the TCL load.

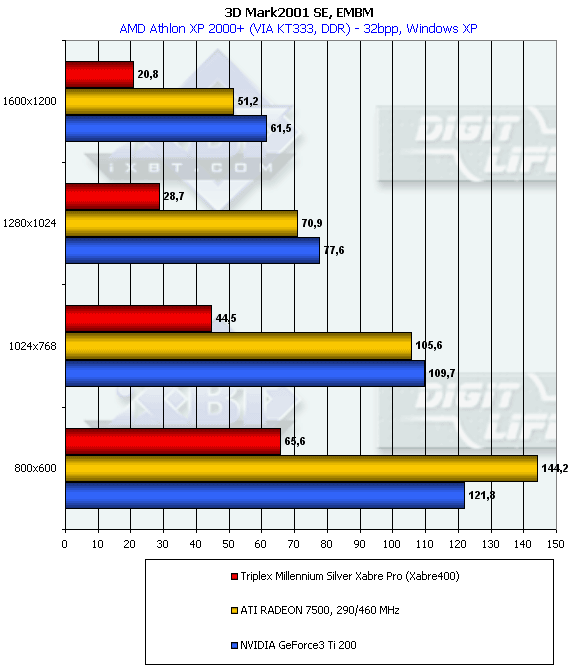

Thanks to the hardware support of pixel shaders the chip can work with a usual EMBM. But it makes it awfully.

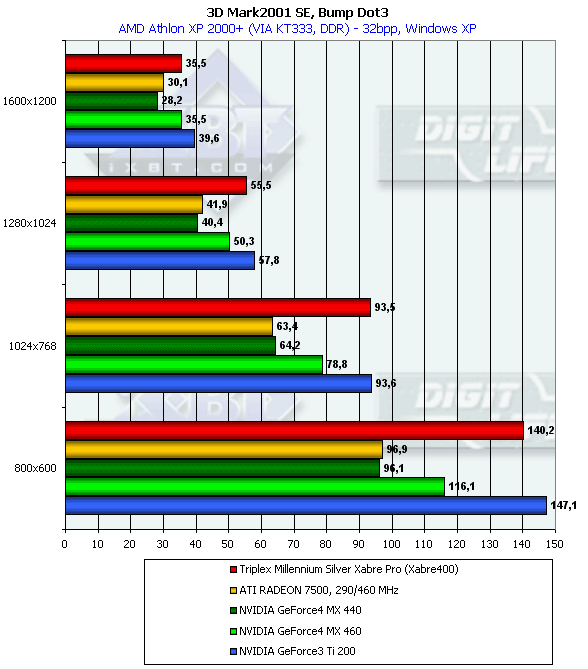

Bump Mapping Dot3
Here the Xabre performs excellently, thanks to 4 pixel pipelines.
The software emulation of shaders is not bad, as usual. And only the NV20 (GeForce 3 Ti200) shows a brilliant advantage (on a hardware level) in low resolution.
Well, it will be difficult to use pixel shaders in real applications because of a noticeable performance decrease. Besides, the Advanced Pixel Shaders and Point Sprites tests notify about an error and stop working.
3D Mark2001 SE, game tests

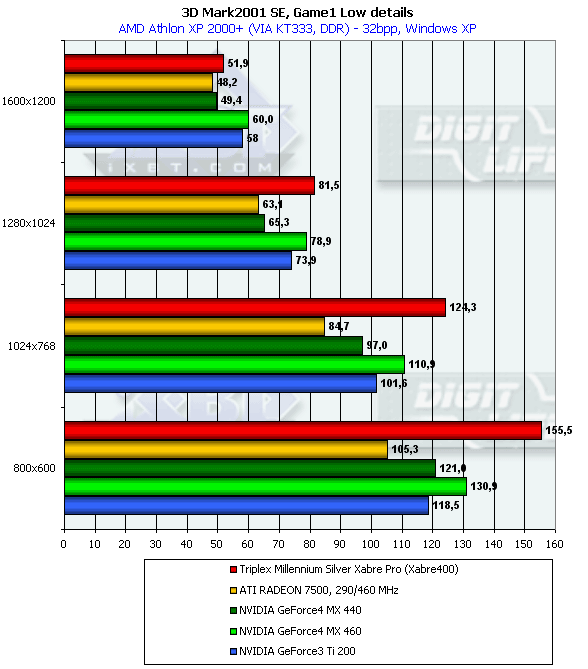

Game1 Low Details
In low resolutions the Xabre400 goes on a par with the other contestants, it has caught up even with the GeForce3 Ti 200, but as the resolution grows it weakens. And in the end it falls behind the RADEON 7500, which despite 290 MHz has only two 2 rendering pipelines, instead of 4; besides, it uses only 4 texture units out of 6. It's well seen the memory is not enough.

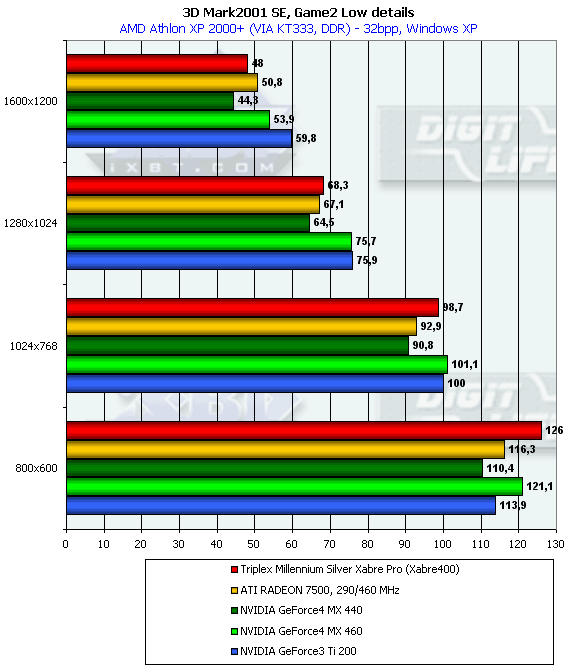

Game2 Low Details
Without a normal overdraw optimization the Xabre loses to everyone here.
Game3 Low Details
This test is also quite tough for the SIS as it loads much with effects and complex scenes and the overdraw factor is higher than 3-4.

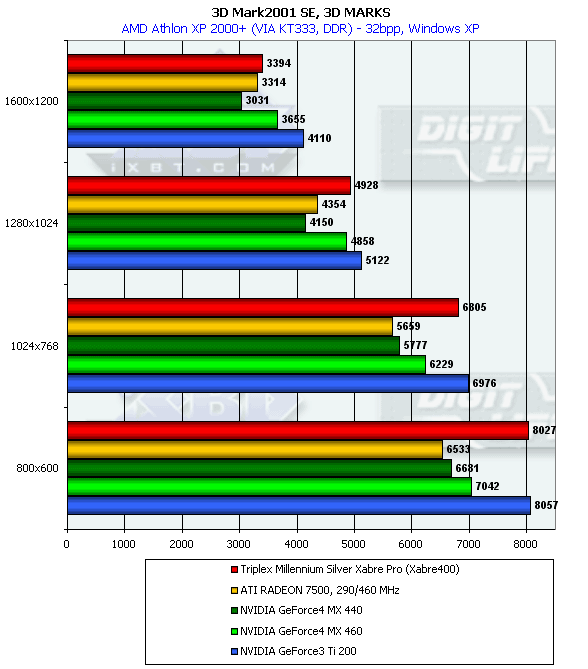

Now it's clear that the Xabre shows moderate results in complex tasks which use shaders, contain a lot of effects and very complex scenes.

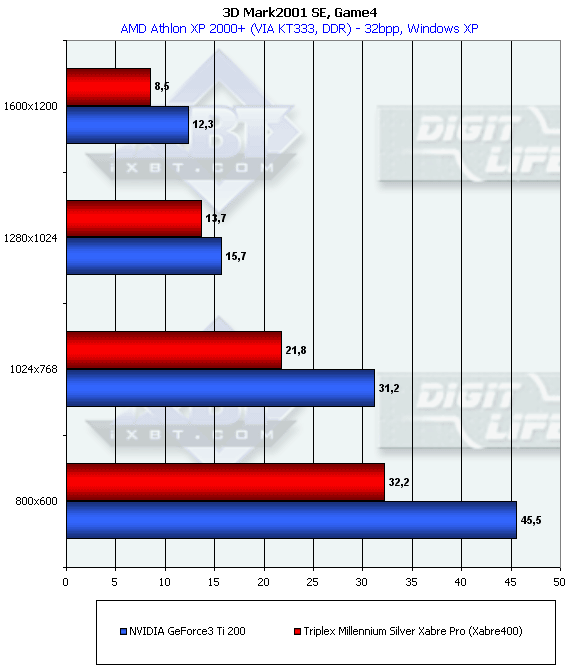

On average, the Xabre400 performs on the level of the GeForce4 MX 440: in low resolutions it outscores the latter, and in high ones it falls behind it by the same margin. At 1024x768 they score the same results (although the MX 440 doesn't support pixel shaders and doesn't have Game4 results).

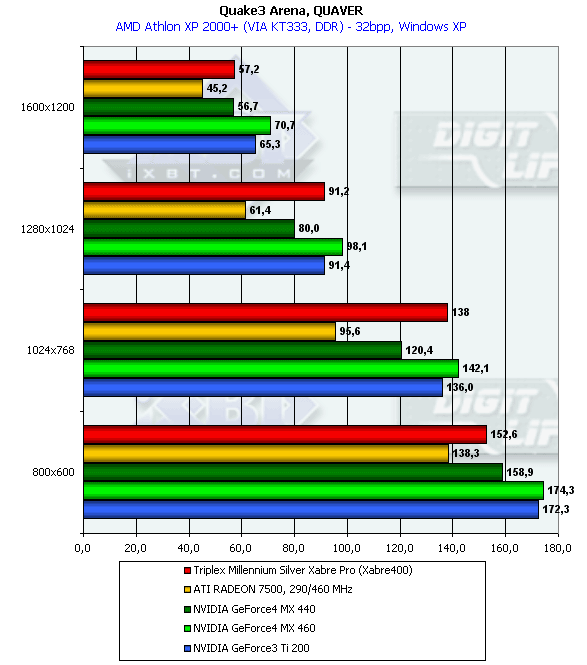

Quake3 Arena, Quaver

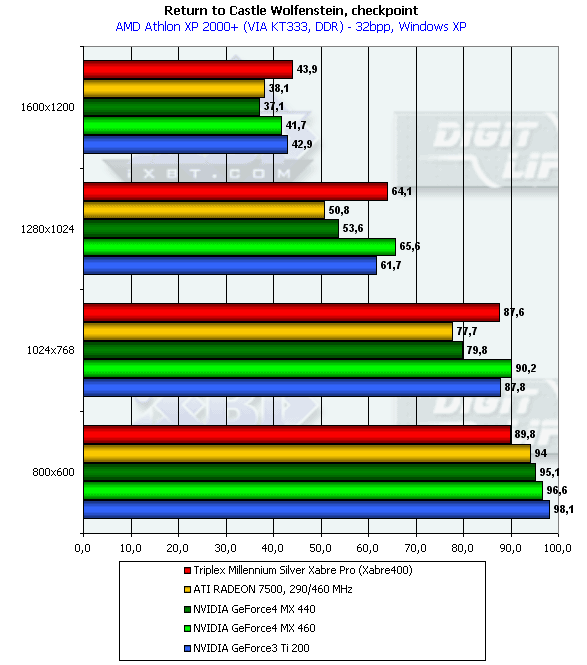

Return to Castle Wolfenstein, Checkpoint

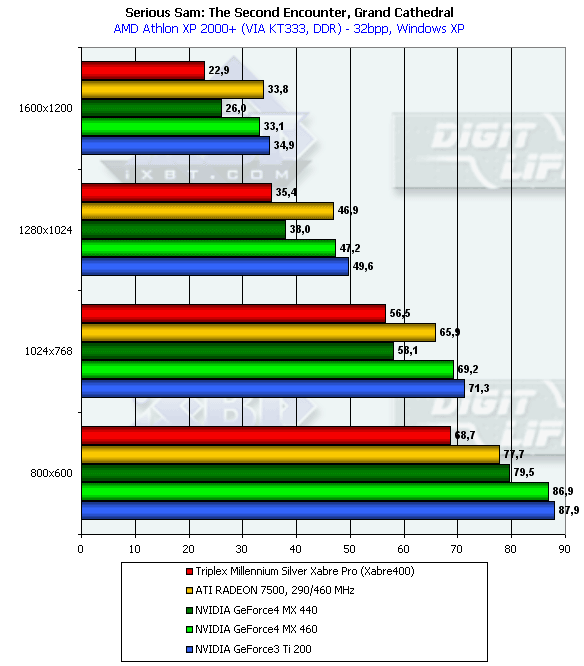

Serious Sam: The Second Encounter, Grand Cathedral

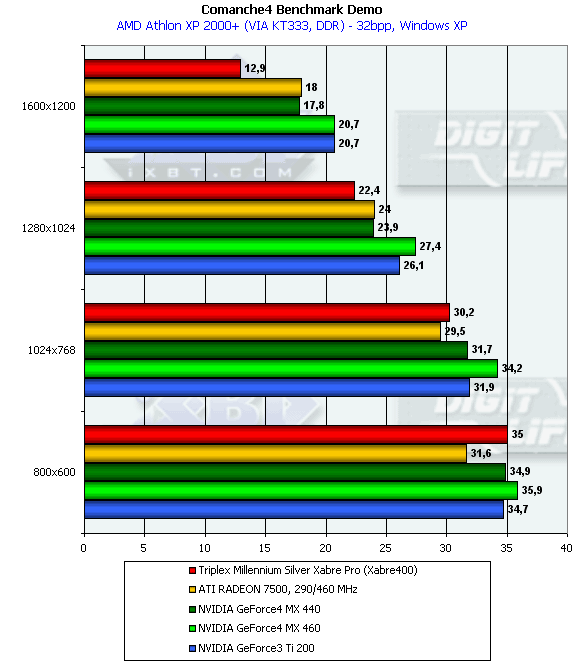

3D graphics quality
Let's test the card in the 3DMark2001 SE and estimate quality with the latest drivers. Note that there are no 3D settings in the SIS software!
It's well seen that the MIP-mapping has a long way to go here. It's not just the LOD BIAS that shifted to the positive zone, but the levels are formed quite a strange way.
At the same time, it's impossible to adjust it - SIS doesn't allow it (and PowerStrip can't do it).

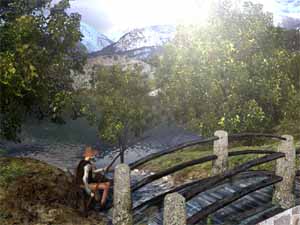

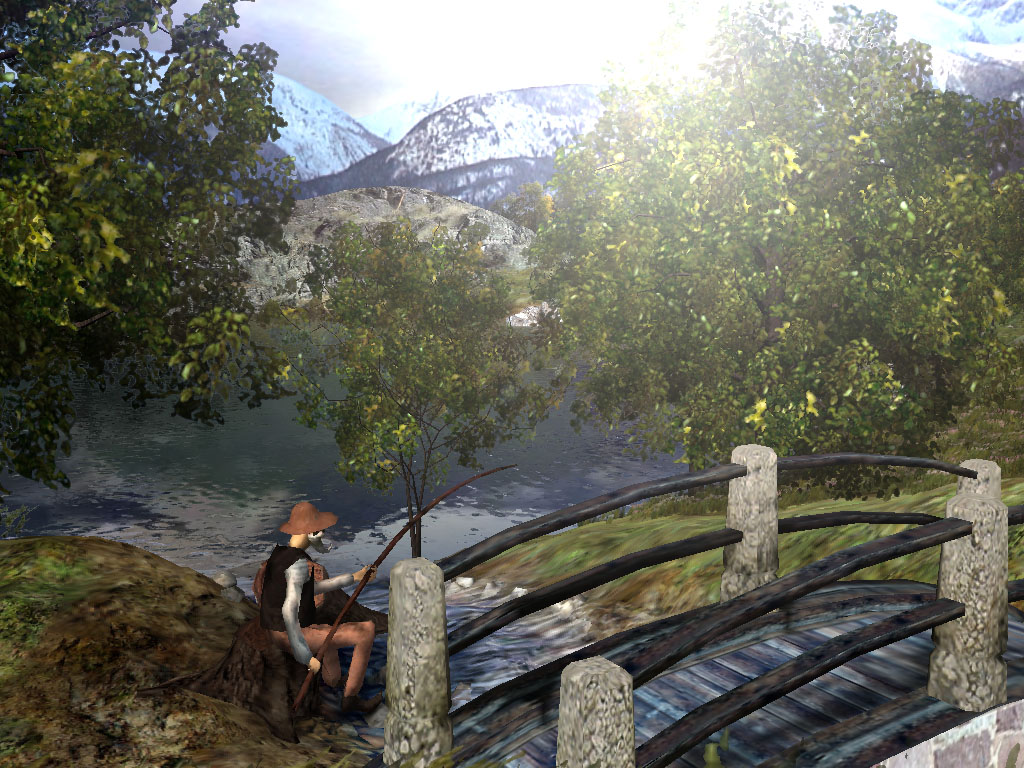

Look again at the realization of water in Game4. Then add lack of results in other tests connected with Pixel Shaders, and nonrecognition of this Xabre's function by Morrowind, and you will see that this function is awfully realized by SIS (it is similar to Hardware T&L of the S3 Savage2000). I hope SIS will soon release better drivers.
Drivers, drivers, drivers... This is a scourge of the today's life! Obviously, the pixel shaders are realized quite "cheaply", which results in their low performance. The problem of such a weak support of pixel shaders probably results from errors in the chip or drivers.
Besides, the rendering quality (MIP-mapping) is unacceptable at all. The graphics mustn't be blurred or resemble Voodoo 1 and 64x64 textures. The worst thing is that it's impossible for a user to adjust it! How dare they release a 3D accelerator and advertise different 3D capabilities without a single changeable 3D setting! I hope SIS programmers will hear it and eliminate the errors.
In all other respects, the card works well.
The complete characteristics of video cards of this and other classes can be found in our 3Digest.
